715011 - Gravely Headlight Kit ZT Series Headlight Kit Parts Diagram

Headlight Kit ZT Series

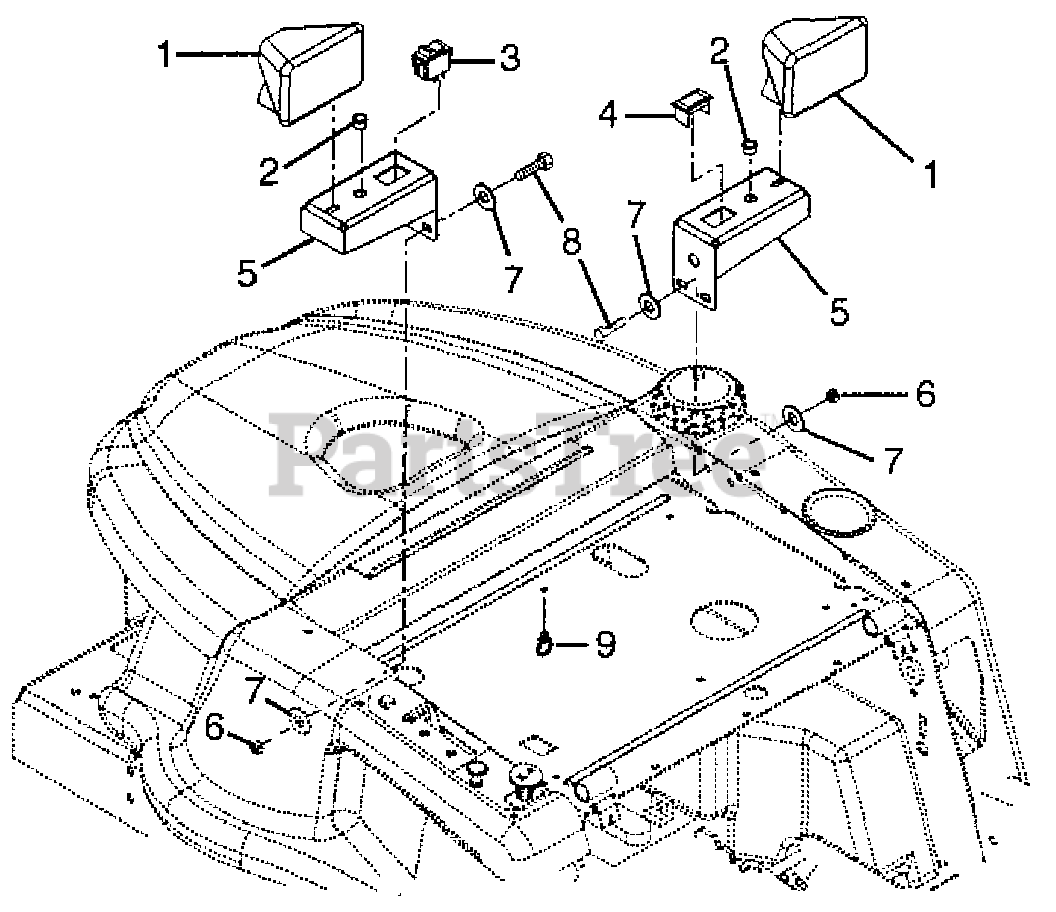

Headlight Kit Parts Diagram

  • Title
1

Gravely 01529200

Headlight

$

$

Not available

2

Gravely 07511600

Snap Bushing

$3.49

$

Usually ships in 4-12 days

0

3

Gravely 03656800

Light Switch

$

$

Not available

4

Gravely 03657000

Switch Cover
(Superseded to 00539300)

$9.99

$

Usually ships in 4-12 days

0

5

Gravely 01560351

Headlight Bracket

$

$

Not available

6

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09236500

Tube Clip 3/4

$

$

Not available

Gravely 01560400

Wire Harness

Note: Not Shown

$

$

Not available

Gravely 71501100

Headlight Kit

$

$

Not available
