715 - BCS America Two-Wheeled Tractor Steering Column (SN: 77918 & Above) Parts Diagram

Two-Wheeled Tractor

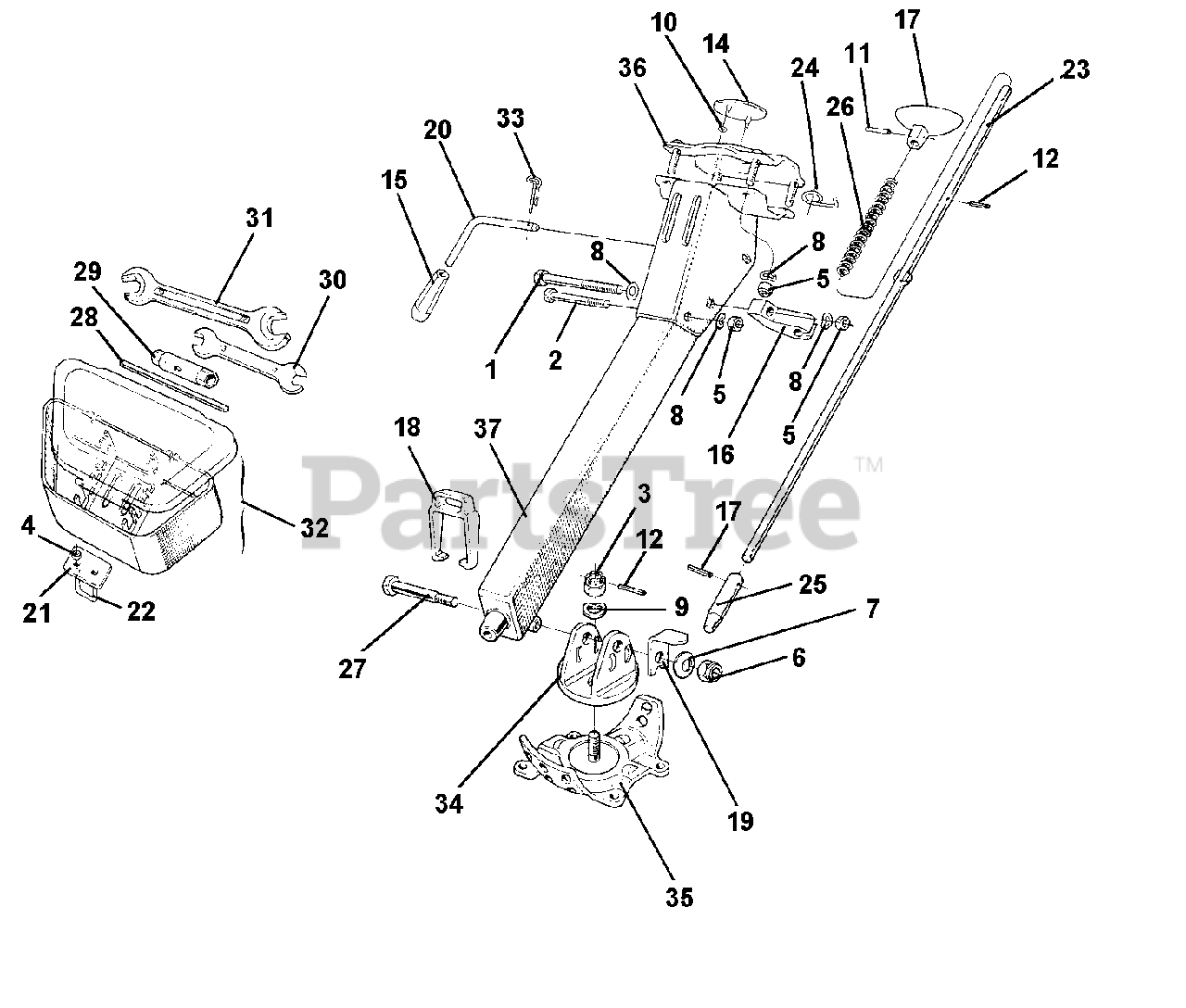

Steering Column (SN: 77918 & Above) Parts Diagram

  • Title

1

BCS America 311.11165

SCREW TE M8 X 100

$1.99

$

Usually ships in 5-8 days

0

2

BCS America 311.12156

SCREW M8 X 60

$1.99

$

Usually ships in 5-8 days

0

3

BCS America 312.01212

NUT, HEX INT M12 UNI 5593 6S

$3.99

$

Usually ships in 5-8 days

0

4

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

5

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 11

0

6

BCS America 312.41121

NUT, SELF LOCKING M12 LOW

$1.49

$

Usually ships in 5-8 days

0

7

BCS America 314.21132

CONICAL WASHER

$1.99

$

In Stock, only 1 left!

0

8

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

9

BCS America 31423130

WASHER, LOCK 13

$1.49

$

In Stock, Qty 5

0

10

BCS America 314.40004

WASHER, LOCK FOR PINS

$0.99

$

In Stock, Qty 10

0

11

BCS America 34213020

LOCKING PIN 4 X 20 SPIRAL

$1.49

$

In Stock, only 1 left!

0

12

BCS America 342.13022

PIN, LOCKING SW 3 X 22

$1.49

$

In Stock, only 3 left!

0

13

BCS America 342.13025

LOCKING PIN SPIRAL

$1.49

$

In Stock, only 4 left!

0

14

BCS America 530.48656

BCS LOGO

$10.99

$

Usually ships in 5-8 days

0

15

BCS America 551.42076

KNOB

$5.99

$

Usually ships in 5-8 days

0

16

BCS America 55243340

SUPPORT CONTROL ROD CUT

$

$

Not available

17

BCS America 552.49665

KNOB

$17.99

$

Usually ships in 5-8 days

0

18

BCS America 552.49668

PASSAGE FOR SHEATH

$9.49

$

In Stock, only 1 left!

0

19

BCS America 561.48252

LOCKING PLATE

$3.99

$

Usually ships in 5-8 days

0

20

BCS America 56148280

LEVER FOR SECTOR

$13.99

$

In Stock, only 1 left!

0

21

BCS America 561.49467

PLATE

$

$

Currently unavailable

22

BCS America 561.49468

U-BOLT

$

$

Currently unavailable

23

BCS America 561.49666

COLUMN ROD

$57.99

$

Usually ships in 5-8 days

0

24

BCS America 561.49667

SHEATH HOOK

$

$

Currently unavailable

25

BCS America 564.49661

CONE CAP

$30.99

$

Usually ships in 5-8 days

0

26

BCS America 580.42219

SPRING

$5.99

$

Usually ships in 5-8 days

0

27

BCS America 580.43228

SCREW SPECIAL M12 X 70

$4.99

$

Usually ships in 5-8 days

0

28

BCS America 580.43718

PARALLEL PIN D 7 X 130

$1.99

$

In Stock, only 1 left!

0

29

BCS America 580.43719

TUBE KEY 10 - 13

$6.99

$

In Stock, only 1 left!

0

30

BCS America 58043720

OPEN KEY 13 - 17

$9.49

$

Usually ships in 5-8 days

0

31

BCS America 580.43722

OPEN KEY 19 - 22

$15.99

$

Usually ships in 5-8 days

0

32

BCS America 580.49466

NEUTRAL TOOL BOX

$

$

Currently unavailable

33

BCS America 580.50533

PIN

$1.99

$

In Stock, only 2 left!

0

34

BCS America 590.43305

FORK

$44.99

$

Usually ships in 5-8 days

0

35

BCS America 590.43311

CAP WITH HOLE D. 13

$91.90

$

Usually ships in 5-8 days

0

36

BCS America 590.48266

COVER ENDS

$54.99

$

Usually ships in 5-8 days

0

37

BCS America 59049660

HANDLEBAR STEERING COLUMN

$274.99

$

Usually ships in 5-8 days

0
