715 - BCS America Two-Wheeled Tractor Engine Hood (SN: 67963 & Above) Parts Diagram

Two-Wheeled Tractor

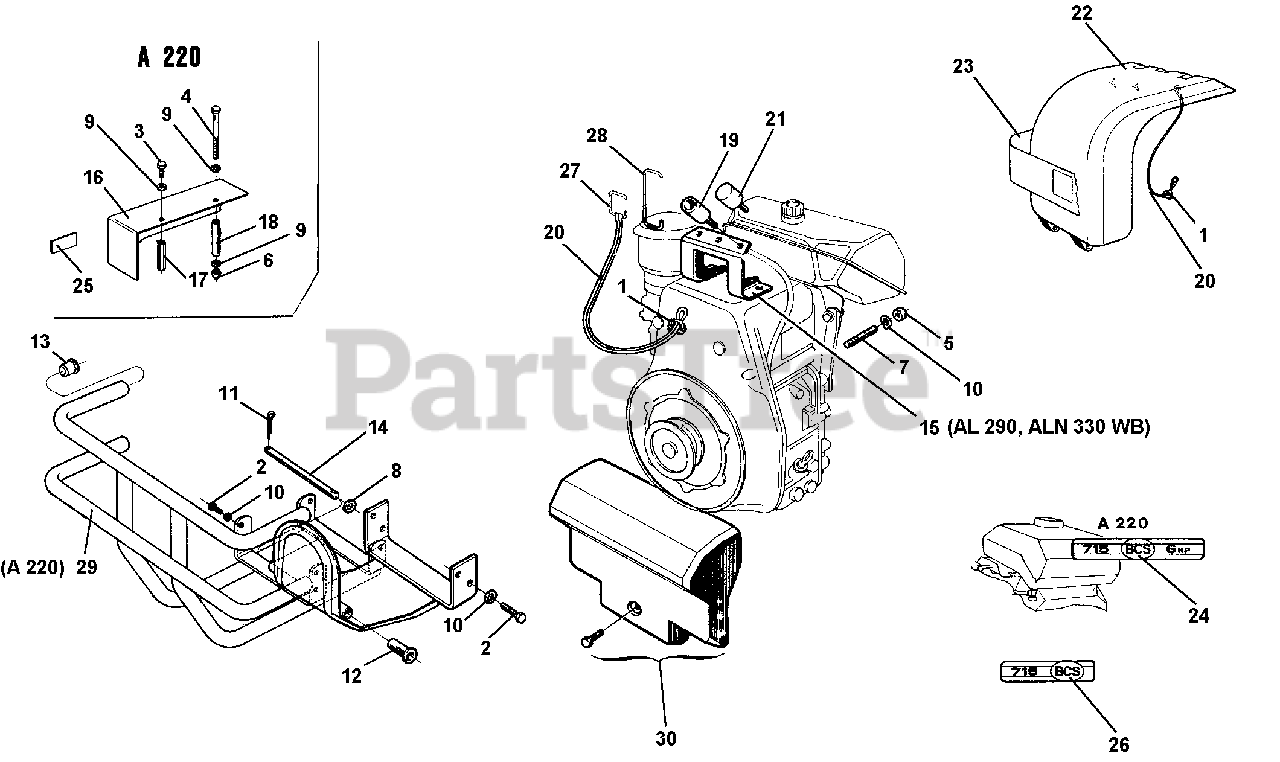

Engine Hood (SN: 67963 & Above) Parts Diagram

  • Title

1

BCS America 300.00021

CLAMP, CABLE 3/16

$6.49

$

In Stock, only 1 left!

0

2

BCS America 311.11151

SCREW M8 X 16

$1.99

$

In Stock, only 4 left!

0

3

BCS America 311.12082

SCREW M6 X 12

$0.99

$

Usually ships in 5-8 days

0

4

BCS America 311.12094

SCREW TE M6 X 65

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

6

BCS America 31241060

NUT, SELF LOCKING M6

$0.99

$

In Stock, only 4 left!

0

7

BCS America 313.12088

STUD M8 X 40 X 14 X 14

$8.49

$

In Stock, only 2 left!

0

8

BCS America 314.11105

FLAT WASHER 10.5 X 21

$1.49

$

In Stock, only 1 left!

0

9

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

10

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

11

BCS America 34110030

PIN, COTTER Z 3 X 20 UNI 1336

$1.49

$

In Stock, only 3 left!

0

12

BCS America 551.42109

BUSH

$2.99

$

Usually ships in 5-8 days

0

13

BCS America 552.48241

CAP D-25

$5.99

$

In Stock, only 2 left!

0

14

BCS America 56142110

PIN, COUPLING

$30.99

$

In Stock, only 1 left!

0

15

BCS America 561.43765

COUPLING, TOP, AL290/ALN330WB

$

$

Currently unavailable

16

BCS America 561.47935

STOP SWITCH PROTECTION

$30.99

$

Usually ships in 5-8 days

0

17

BCS America 561.47937

STUD BOLT

$12.99

$

Usually ships in 5-8 days

0

18

BCS America 561.47939

PROTECTION SPACER

$5.32

$

Usually ships in 5-8 days

0

19

BCS America 580.42111

BUFFER, HOOD COUPLING

$12.99

$

Usually ships in 5-8 days

0

20

BCS America 580.42112

CABLE, HOOD

$4.99

$

In Stock, only 1 left!

0

21

BCS America 580.42131

RUBBER PAD

$24.99

$

Usually ships in 5-8 days

0

22

BCS America 58043750

HOOD, PLASTIC, COMPLETE

$277.99

$

Usually ships in 5-8 days

0

23

BCS America 580.43759

ADHESIVE TAPE BCS 715

$17.99

$

Usually ships in 5-8 days

0

24

BCS America 580.47925

STICKER

$1.99

$

Usually ships in 5-8 days

0

25

BCS America 580.47926

CHOKE STICKER

$1.49

$

Usually ships in 5-8 days

0

26

BCS America 580.48217

KOHLER STICKER

$1.99

$

Usually ships in 5-8 days

0

27

BCS America 580.48673

SHORT HOOK

$37.99

$

Usually ships in 5-8 days

0

28

BCS America 580.48674

LONG HOOK

$9.99

$

Usually ships in 5-8 days

0

29

BCS America 922.47928

BUMPER

$165.00

$

Usually ships in 5-8 days

0

30

BCS America 922.48719

FRONT WEIGHT ASBY.,(35#)(EA)

$

$

Currently unavailable
