715 - BCS America Two-Wheeled Tractor Cone Clutch (SN: 68724 - 85534) Parts Diagram

Two-Wheeled Tractor

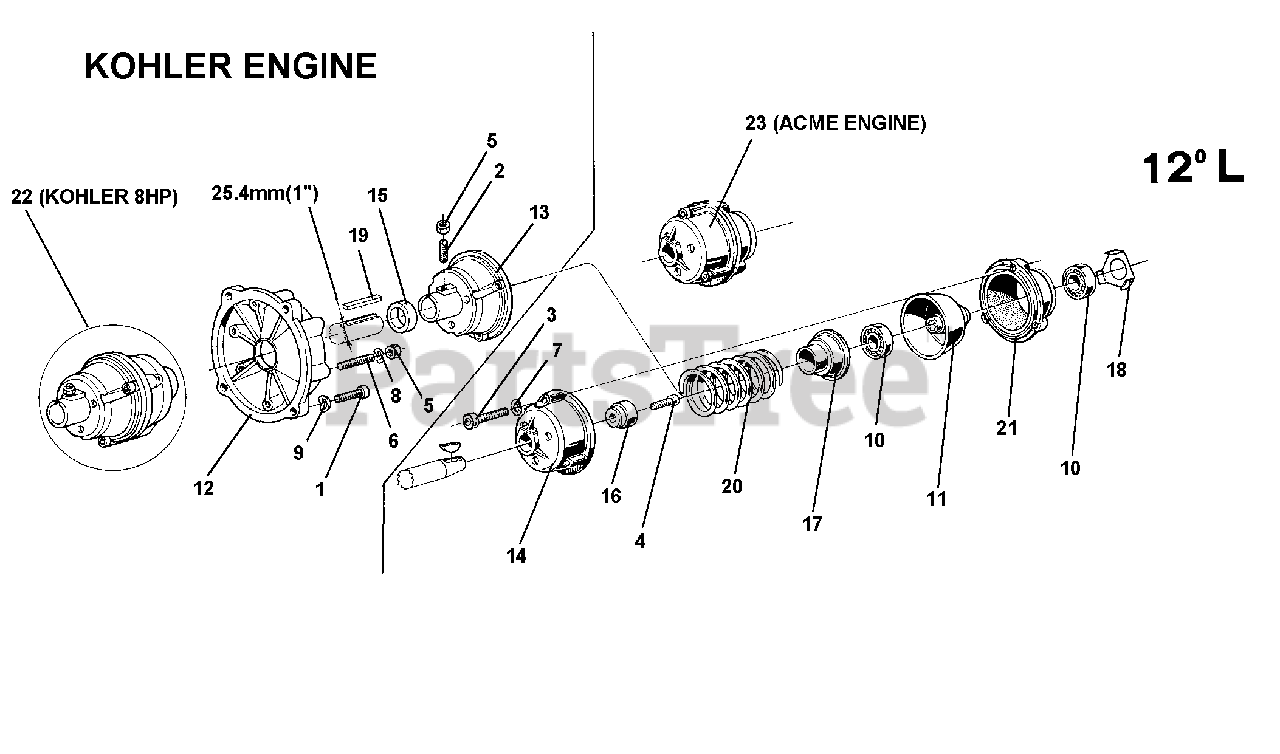

Cone Clutch (SN: 68724 - 85534) Parts Diagram

  • Title

1

BCS America 311.00015

SCREW 3/8 X 1

$1.49

$

Usually ships in 5-8 days

0

2

BCS America 311.00784

SCREW M8 X 20

$1.49

$

Usually ships in 5-8 days

0

3

BCS America 31152060

SCREW TCCEI M6 X 30 UNI 5931

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.52085

SCREW TC CE M8 X 25

$1.49

$

Usually ships in 5-8 days

0

5

BCS America 31211080

NUT M8

$0.99

$

In Stock, only 3 left!

0

6

BCS America 313.12088

STUD M8 X 40 X 14 X 14

$8.49

$

In Stock, only 2 left!

0

7

BCS America 314.22064

WASHER, LOCK 6.4

$0.99

$

Usually ships in 5-8 days

0

8

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

9

BCS America 314.23105

WASHER, LOCK 10.5

$1.49

$

In Stock, Qty 5

0

10

BCS America 371.12171

BRNG SKF 17 X 40 X 12 6203 ST

$10.99

$

In Stock, only 3 left!

0

11

BCS America 521.48105

LONG CLUTCH CONE

$211.99

$

Usually ships in 5-8 days

0

12

BCS America 531.43011

BRIGGS STR/KOHLER FLANGE

$

$

Currently unavailable

13

BCS America 531.43012

CLUTCH BELL

$100.99

$

Usually ships in 5-8 days

0

14

BCS America 531.48107

LONG CLUTCH BELL

$88.99

$

Usually ships in 5-8 days

0

15

BCS America 561.43005

SPACER

$

$

Currently unavailable

16

BCS America 561.43121

CENTERING

$17.99

$

Usually ships in 5-8 days

0

17

BCS America 561.43122

BUSH, SPRING HOLDER

$8.49

$

Usually ships in 5-8 days

0

18

BCS America 563.43106

BEARING PLATE

$24.99

$

Usually ships in 5-8 days

0

19

BCS America 563.49782

KEY

$10.99

$

Usually ships in 5-8 days

0

20

BCS America 58043110

SPRING CLUTCH

$60.99

$

Usually ships in 5-8 days

0

21

BCS America 590.48102

LONG CLUTCH RING

$175.99

$

Usually ships in 5-8 days

0

22

BCS America 592.48088

CLUTCH

$343.99

$

In Stock, only 1 left!

0

23

BCS America 592.48106

FITTED LONG CLUTCH

$325.99

$

Usually ships in 5-8 days

0
