71429 (XL 440 H) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) HOOD AND TOWER ASSEMBLY Parts Diagram

Lawn Tractor

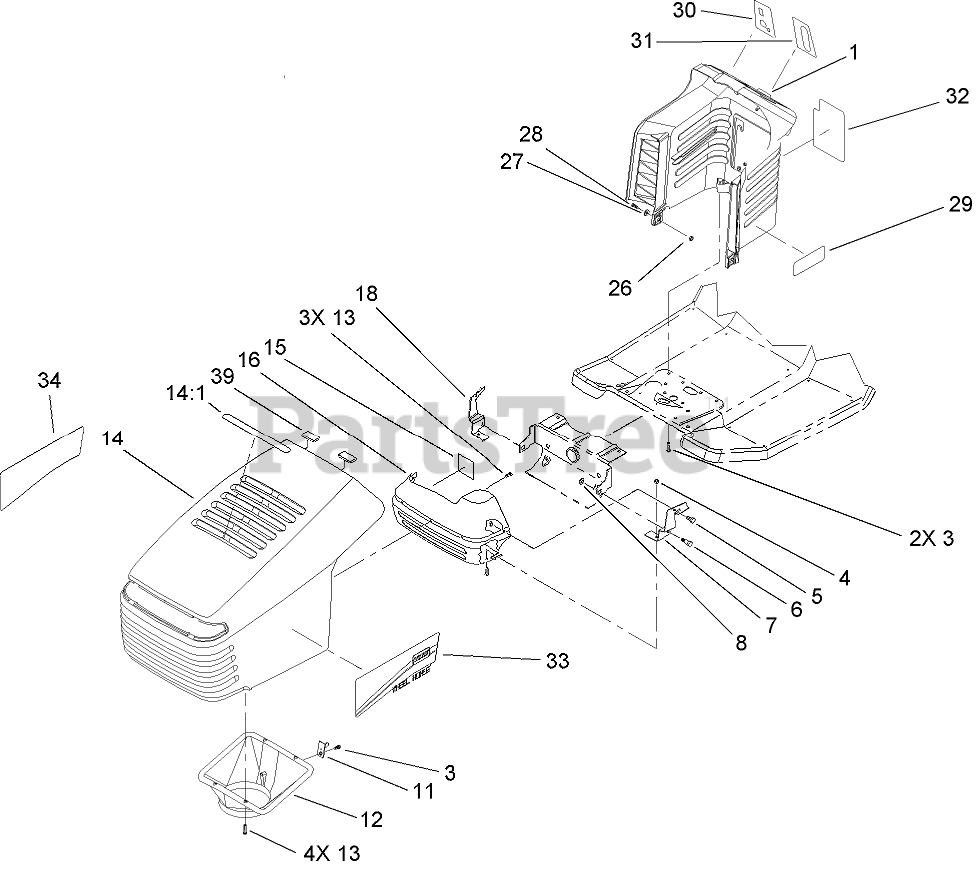

HOOD AND TOWER ASSEMBLY Parts Diagram

  • Title

1

Toro 107-4920

TOWER-STEERING

$

$

Not available

3

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

6

Toro 28-0540

BOLT-SHOULDER

$12.99

$

In Stock, Qty 5

0

7

Toro 88-6050-03

BRACKET-PIVOT, LH HOOD

$

$

Not available

8

Toro 3290-496

NUT-RETAINER

$6.49

$

In Stock, only 3 left!

0

11

Toro 94-1984

LATCH-PIN

$7.49

$

Usually ships in 3-6 days

0

12

Toro 93-3891

DUCT-AIR, HOOD

$

$

Not available

13

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

14

Toro 92-8650

HOOD ASM

$

$

Not available

14:1

Toro 92-5748

DECAL-AIR DUCT

$35.99

$

In Stock, only 1 left!

0

15

Toro 92-5782

TAPE-FOIL

$0.99

$

Usually ships in 3-6 days

0

16

Toro 93-3864-03

SHIELD-HEAT

$

$

Not available

18

Toro 88-6040-03

BRACKET-PIVOT, RH HOOD

$12.99

$

In Stock, only 1 left!

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 108-7805

DECAL

$

$

Not available

30

Toro 99-8139

DECAL

$14.99

$

In Stock, only 1 left!

0

31

Toro 92-2461

DECAL

$11.99

$

In Stock, only 1 left!

0

32

Toro 107-4921

DECAL-DANGER

$

$

Not available

33

Toro 105-2497

DECAL-HOOD

$21.99

$

In Stock, only 2 left!

0

34

Toro 105-2496

DECAL-HOOD

$21.99

$

In Stock, only 2 left!

0

39

Toro 94-1980

FOAM-HOOD

$3.99

$

Usually ships in 3-6 days

0
