71429 (XL 440 H) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) CHUTE AND RECYCLER ASSEMBLY Parts Diagram

Lawn Tractor

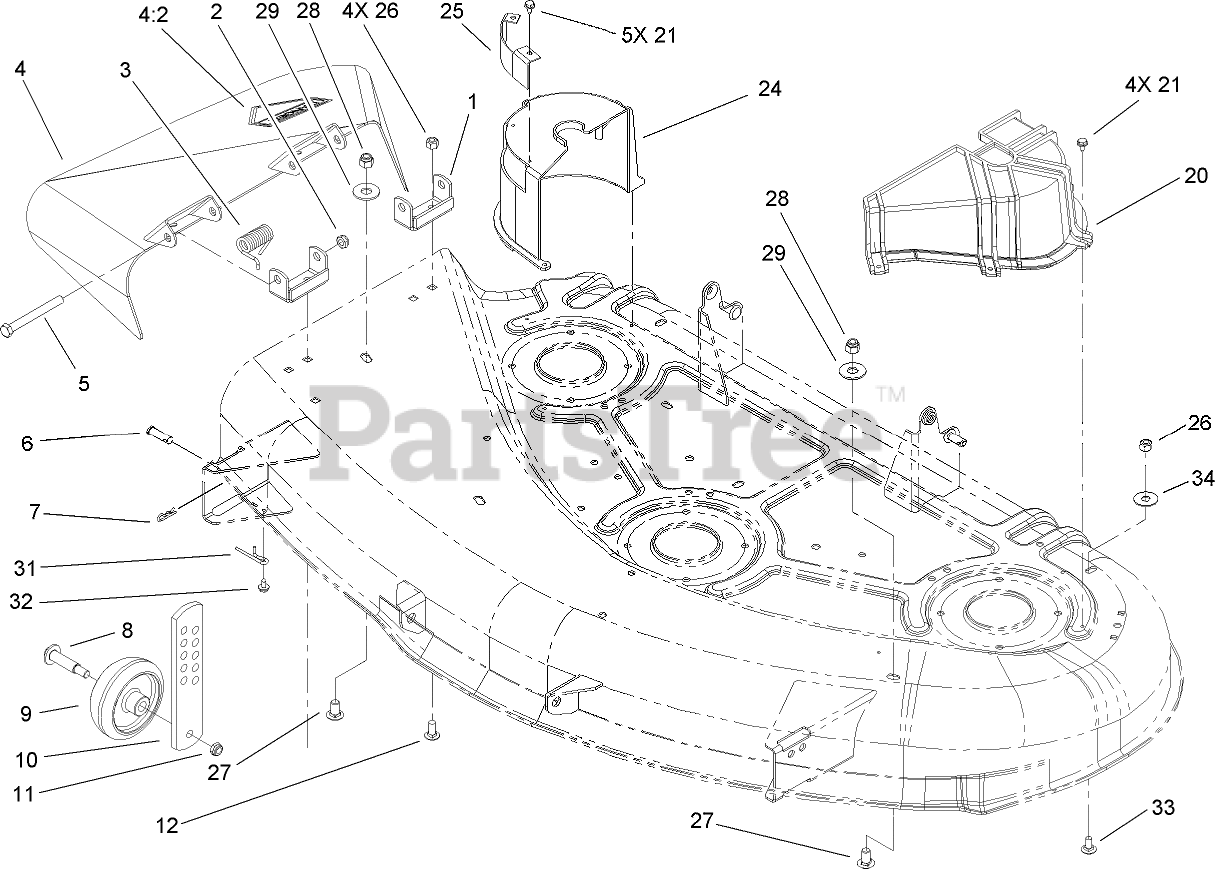

CHUTE AND RECYCLER ASSEMBLY Parts Diagram

  • Title

1

Toro 29-5590-03

BRACKET-PIVOT

$

$

Not available

2

Toro 3296-5

NUT-HEX

$3.49

$

In Stock, Qty 20+

0

3

Toro 40-6230

SPRING

$39.99

$

Usually ships in 3-6 days

0

4

Toro 100-6206

DEFLECTOR ASM

$

$

Not available

4:2

Toro 43-8480

DECAL-DANGER

$6.99

$

In Stock, Qty 6

0

5

Toro 3211-15

SCREW-HH

$9.49

$

Usually ships in 3-6 days

0

6

Toro 283-2

PIN-CLEVIS

$13.99

$

In Stock, only 2 left!

0

7

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

8

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

9

Toro 701756

WHEEL-GAGE

$8.49

$

In Stock, Qty 13

0

10

Toro 93-8010

PLATE-GAGE, WHEEL

$77.99

$

In Stock, only 2 left!

0

11

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

12

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 93-3866

COVER-BELT, LH

$

$

Not available

21

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

24

Toro 93-3865

COVER-BELT, RH

$36.99

$

In Stock, only 1 left!

0

25

Toro 93-3876-03

INSERT-BELT COVER

$20.99

$

Usually ships in 3-6 days

0

26

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

27

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

28

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

29

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

31

Toro 94-1981

SPRING-GAGE, WHEEL

$8.99

$

In Stock, only 2 left!

0

32

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

33

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

34

Toro 52-2860

WASHER

$1.49

$

In Stock, Qty 20+

0
