7134 A99 - Electrolux/AYP Lawn Tractor (1999) BRIGGS AND STRATTON ENGINE Parts Diagram

Lawn Tractor

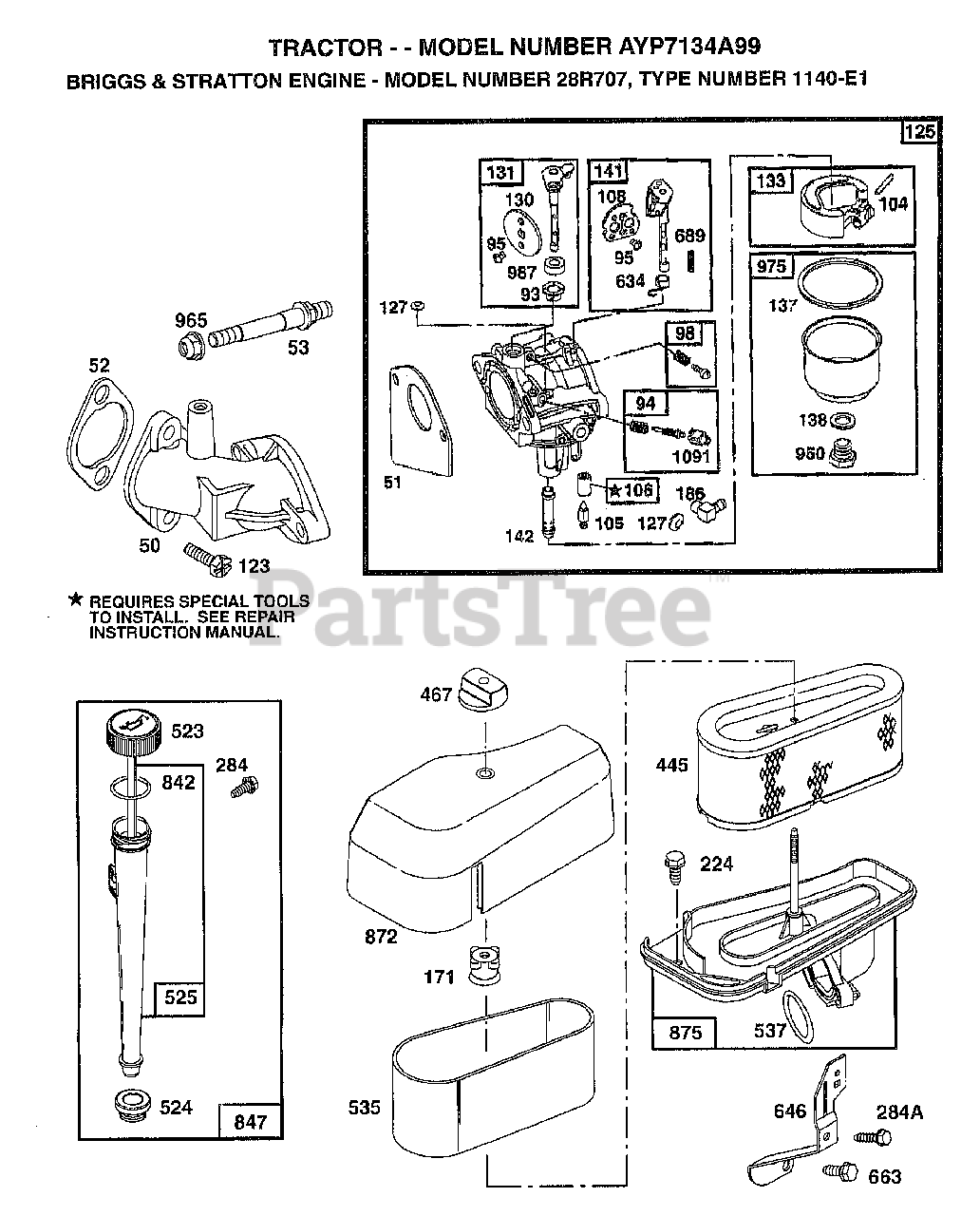

BRIGGS AND STRATTON ENGINE Parts Diagram

  • Title

1

Briggs & Stratton 496413

CYLINDER ASSEMBLY

$344.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 797673)

$18.99

$

In Stock, Qty 8

0

3

Briggs & Stratton 391086

SEAL, OIL
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 494238

BASE, ENGINE

$

$

Not available

5

Briggs & Stratton 494240

HEAD, CYLINDER

$110.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 271866

GASKET, CYLINDER HEAD
(Superseded to 271866S)

$9.49

$

In Stock, only 3 left!

0

8

Briggs & Stratton 495735

BREATHER ASSY

$63.99

$

In Stock, Qty 5

0

9

Briggs & Stratton 27803

GASKET, VALVE COVER
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

SCREW, STEMS
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 280100

TUBE, BREATHER
(Superseded to 692253)

$9.99

$

In Stock, Qty 13

0

12

Briggs & Stratton 271916

GASKET, CRANKCASE COVER 1/64"
(Superseded to 692226)

$6.99

$

In Stock, only 2 left!

0

12

Briggs & Stratton 271997

GASKET, CRANKCASE COVER .005"
(Superseded to 692406)

$9.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 271996

GASKET, CRANKCASE COVER .009"
(Superseded to 692405)

$6.49

$

In Stock, only 1 left!

0

13

Briggs & Stratton 94622

SCREW, CYLINDER HEAD 3"
(Superseded to 690904)

$11.99

$

In Stock, only 4 left!

0

15

Briggs & Stratton 94239

PLUG, OIL DRAIN
(Superseded to 690946)

$5.99

$

In Stock, Qty 14

0

16

Briggs & Stratton 498971

CRANKSHAFT
(Superseded to 693653)

$246.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 291675

SEAL, OIL
(Superseded to 291675S)

$6.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 94624

SCREW, SEMS, BASE MOUNTING
(Superseded to 692125)

$4.99

$

In Stock, only 4 left!

0

23

Briggs & Stratton 492326

FLYWHEEL & RING GEAR ASSY, MAGNETO
(Superseded to 693557)

$

$

Not available

24

Briggs & Stratton 222698

KEY, FLYWHEEL
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 394661

PISTON ASSEMBLY, STANDARD
(Superseded to 499284)

$

$

Not available

25

Briggs & Stratton 394662

PISTON ASSEMBLY .010" OVERSIZE

$

$

Not available

25

Briggs & Stratton 394663

PISTON ASSEMBLY .020" OVERSIZE
(Superseded to 499292)

$

$

Not available

25

Briggs & Stratton 394664

PISTON ASSEMBLY .030" OVERSIZE
(Superseded to 499296)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391780

RING SET, PISTON, STANDARD
(Superseded to 499996)

$53.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 392331

RING SET, PISTON, STANDARD SIZE

$37.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391781

RING SET, PISTON .010" OVERSIZE

$

$

Not available

26

Briggs & Stratton 391782

RING SET, PISTON .020" OVERSIZE
(Superseded to 499998)

$67.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 391783

RING SET, PISTON .030" OVERSIZE

$

$

Not available

27

Briggs & Stratton 260924

LOCK, PISTON PIN
(Superseded to 691792)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 299691

PIN ASSEMBLY, PISTON, STANDARD

$17.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 391286

PIN ASSEMBLY, PISTON .005" OVER

$14.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490348

ROD ASSEMBLY, CONNECTING

$50.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 490469

ROD ASSEMBLY, CONNECTING .020" UNDERSIZE CRANKPIN
(Superseded to 495490)

$

$

Not available

32

Briggs & Stratton 94671

SCREW, CONNECTING ROD
(Superseded to 691133)

$5.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 262246

VALVE, EXHAUST
(Superseded to 262246S)

$

$

Not available

34

Briggs & Stratton 262247

VALVE, INTAKE
(Superseded to 262247S)

$

$

Not available

35

Briggs & Stratton 65906

SPRING, INTAKE VALVE
(Superseded to 691605)

$6.99

$

In Stock, only 1 left!

0

36

Briggs & Stratton 26828

SPRING, EXHAUST VALVE
(Superseded to 691597)

$10.99

$

In Stock, only 4 left!

0

37

Briggs & Stratton 224502

GUARD, FLYWHEEL
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 221596

RETAINER, INTAKE VALVE
(Superseded to 690656)

$

$

Not available

41

Briggs & Stratton 292260

RETAINER, EXHAUST VALVE
(Superseded to 691939)

$27.99

$

In Stock, Qty 5

0

42

Briggs & Stratton 494553

KEEPER VALVE

$7.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 262248

TAPPET-VALVE
(Superseded to 691811)

$6.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212897

GEAR, CAM
(Superseded to 697668)

$139.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 213819

ELBOW, INTAKE
(Superseded to 691711)

$

$

Not available

51

Briggs & Stratton 272465

GASKET, CARBURETOR (CARBURETOR TO ELBOW)
(Superseded to 692284)

$4.99

$

In Stock, only 2 left!

0

52

Briggs & Stratton 272554

GASKET CARB
(Superseded to 272554S)

$5.49

$

In Stock, Qty 5

0

53

Briggs & Stratton 94637

STUD, CARBURETOR MOUNTING
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

73

Briggs & Stratton 224948

SCREEN, FLUSH ROTATING
(Superseded to 690492)

$13.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 225136

WASHER, SPRING
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 94626

SCREW, SEMS
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 491323

SEAL, GOVERNOR
(Superseded to 692407)

$7.99

$

In Stock, Qty 8

0

93

Briggs & Stratton 281346

BUSHING, THROTTLE SHAFT
(Superseded to 690602)

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

VALVE, IDLE, ADJUSTMENT
(Superseded to 794176)

$21.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

SCREW, THROTTLE
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

SCREW, IDLE SPEED

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 231789

PIN, FLOAT HINGE
(Superseded to 690525)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

VALVE ASSY, INLET NEEDLE
(Superseded to 231855S)

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 231854

INLET VALVE SEAT
(Superseded to 690577)

$7.99

$

In Stock, only 3 left!

0

108

Briggs & Stratton 224540

VALVE, CHOKE
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 499220

CARBURETOR OVERHAUL KIT
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

123

Briggs & Stratton 94913

SCREW, TORX HEX
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 498027

CARBURETOR ASSEMBLY
(Superseded to 799728)

$

$

Not available

127

Electrolux/AYP PARTSIMAGE

REFER TO PARTS IMAGE

$

$

Not available

130

Briggs & Stratton 224539

VALVE, THROTTLE
(Superseded to 691750)

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

SHAFT & LEVER, THROTTLE
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

FLOAT, CARBURETOR

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

GASKET, FLOAT BOWL
(Superseded to 281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

WASHER, FLOAT BOWL SCREW
(Superseded to 692255)

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 495097

SHAFT
(Superseded to 790905)

$45.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497736

NOZZLE
(Superseded to 691434)

$23.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497737

NOZZLE

$22.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94196

KEY, TIMING GEAR
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

171

Briggs & Stratton 281051

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 692297)

$10.99

$

Usually ships in 2-12 days

0

186

Briggs & Stratton 493496

ELBOW, FUEL PIPE
(Superseded to 692317)

$6.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 298049

LINE, FUEL
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 94627

SCREW, SEMS 3/4"
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

201

Briggs & Stratton 262767

LINK, GOVERNOR
(Superseded to 691841)

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 260871

SPRING, GOVERNOR
(Superseded to 792602)

$3.49

$

In Stock, only 2 left!

0

216

Briggs & Stratton 262766

LINK, CHOKE
(Superseded to 691840)

$8.99

$

In Stock, Qty 20+

0

219

Briggs & Stratton 490815

GOVERNOR GEAR
(Superseded to 691968)

$37.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 495611

PLATE, GOVERNOR CONTROL
(Superseded to 597209)

$38.99

$

In Stock, Qty 20+

0

224

Briggs & Stratton 94729

SCREW, SEMS, HEX HEAD
(Superseded to 690810)

$3.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 493935

LEVER ASSY, GOVERNOR
(Superseded to 691374)

$26.99

$

In Stock, only 2 left!

0

230

Briggs & Stratton 94927

WASHER, GOVERNOR LEVER
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

232

Briggs & Stratton 262785

SPRING, GOVERNOR LINK
(Superseded to 691842)

$11.99

$

In Stock, Qty 20+

0

240

Briggs & Stratton 394358

FILTER, FUEL
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

CLAMP
(Superseded to 691024)

$3.99

$

In Stock, Qty 7

0

284

Briggs & Stratton 94903

SCREW, HEX HEAD
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

284A

Briggs & Stratton 94704

SCREW, AIR CLEANER
(Superseded to 690703)

$3.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 496280

HOUSING, BLOWER
(Superseded to 690847)

$155.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 94786

SCREW
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

305A

Briggs & Stratton 94881

SCREW
(Superseded to 691681)

$8.49

$

In Stock, only 1 left!

0

306

Briggs & Stratton 224545

SHIELD, CYLINDER
(Superseded to 698477)

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

SCREW
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

308

Briggs & Stratton 491490

COVER, CYLINDER HEAD
(Superseded to 698476)

$49.99

$

In Stock, only 1 left!

0

309

Briggs & Stratton 497595

MOTOR, STARTING, 12 VOLT

$110.99

$

In Stock, Qty 20+

0

310

Briggs & Stratton 94003

BOLT
(Superseded to 690323)

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

BRUSH SET

$27.99

$

In Stock, only 3 left!

0

333

Briggs & Stratton 492341

ARMATURE, MAGNETO
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Electrolux/AYP 094731

SCREW

$

$

Not available

337

Briggs & Stratton 802592

PLUG, SPARK
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

346

Briggs & Stratton 94896

SCREW, SEMS
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

356

Briggs & Stratton 494328

WIRE, GROUND
(Superseded to 690799)

$11.99

$

Usually ships in 2-12 days

0

258

Briggs & Stratton 494241

GASKET SET

$39.99

$

In Stock, Qty 8

0

363

Briggs & Stratton 19203

PULLER, FLYWHEEL

$23.99

$

In Stock, only 1 left!

0

383

Briggs & Stratton 89838

WRENCH SPARK PLUG
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

445

Briggs & Stratton 496894

CARTRIDGE, AIR CLEANER
(Superseded to 496894S)

$19.99

$

In Stock, only 3 left!

0

455

Electrolux/AYP 221561

CAP

$

$

Not available

467

Briggs & Stratton 493903

KNOB, AIR CLEANER
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

474

Briggs & Stratton 393474

STATOR, ALTERNATOR, DUAL CIRCUIT
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

482

Briggs & Stratton 93621

SCREW, SEMS
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

503

Briggs & Stratton 806000

STRAP, STARTER
(Superseded to 691532)

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 497606

DRIVE, STARTER
(Superseded to 696541)

$90.99

$

In Stock, Qty 9

0

523

Briggs & Stratton 495230

CAP AND DIPSTICK, OIL FILLER
(Superseded to 692014)

$25.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 281370

SEAL, FILLER TUBE
(Superseded to 281370S)

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 496113

TUBE, OIL FILLER
(Superseded to 691398)

$21.99

$

In Stock, only 1 left!

0

535

Briggs & Stratton 272403

ELEMENT, AIR CLEANER
(Superseded to 272403S)

$3.99

$

In Stock, Qty 18

0

537

Briggs & Stratton 281106

O-RING, AIR CLEANER
(Superseded to 691917)

$4.49

$

In Stock, Qty 20+

0

544

Briggs & Stratton 497603

ARMATURE, STARTER
(Superseded to 692034)

$82.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 491986

BUSHING, GOVERNOR CRANK

$

$

Not available

562

Briggs & Stratton 94907

BOLT, GOVENOR LEVEL
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

592

Briggs & Stratton 231978

NUT, HEX
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

601

Briggs & Stratton 93053

CLAMP, HOSE, GREEN
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 93306

COTTER, HAIR PIN
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 263080

RETAINER
(Superseded to 691265)

$5.49

$

In Stock, Qty 7

0

616

Briggs & Stratton 495157

CRANK, GOVERNOR, 1/4" DIAMETER
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

634

Briggs & Stratton 494453

SEAL, SPRING ASSY.
(Superseded to 690801)

$8.49

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 66538

ELBOW, SPARK PLUG
(Superseded to 66538S)

$3.99

$

In Stock, Qty 7

0

646

Briggs & Stratton 224546

BRACE, AIR CLEANER

$

$

Not available

657

Briggs & Stratton 94906

SCREW
(Superseded to 690804)

$

$

Not available

663

Briggs & Stratton 94929

SCREW, SELF-TAPPING
(Superseded to 691693)

$3.99

$

In Stock, Qty 9

0

668

Briggs & Stratton 231109

SPACER MUFFLER MOUNTING
(Superseded to 690510)

$6.49

$

Usually ships in 2-12 days

0

668A

Briggs & Stratton 280848

SPACER
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

689

Briggs & Stratton 262820

SPRING
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

726

Briggs & Stratton 392134

GEAR, RING
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

COVER, STARTER

$26.99

$

In Stock, only 1 left!

0

728

Briggs & Stratton 94951

SCREW, HEX HEAD
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

729

Briggs & Stratton 281159

CLIP, LEAD WIRE
(Superseded to 690596)

$

$

Not available

729A

Briggs & Stratton 225170

RETAINER, WIRE
(Superseded to 691224)

$4.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 262932

GEAR, TIMING
(Superseded to 691284)

$10.99

$

Usually ships in 2-12 days

0

757

Briggs & Stratton 213998

LINK, COUNTERWEIGHT
(Superseded to 691714)

$

$

Not available

758

Briggs & Stratton 399891

COUNTERWEIGHT ASSY
(Superseded to 692423)

$222.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 298909

PIN ASSY, PISTON, STD

$8.99

$

In Stock, only 2 left!

0

761

Briggs & Stratton 94593

SCREW, COUNTERWEIGHT
(Superseded to 691096)

$5.49

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 280104

GEAR, STARTER
(Superseded to 695708)

$6.99

$

In Stock, only 3 left!

0

801

Briggs & Stratton 394856

CAP, DRIVE
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497605

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691293)

$29.99

$

In Stock, Qty 6

0

803

Briggs & Stratton 497604

HOUSING, STARTER
(Superseded to 693757)

$25.99

$

Usually ships in 2-12 days

0

842

Briggs & Stratton 270920

SEAL, OIL FILLER CAP
(Superseded to 691870)

$4.49

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 496415

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 493880

TERMINAL, IGNITION CABLE
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

869

Briggs & Stratton 261463

SEAT, INTAKE VALVE, STANDARD
(Superseded to 691802)

$17.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 262924

SEAT, EXHAUST VALVE, STANDARD
(Superseded to 691844)

$18.99

$

In Stock, only 1 left!

0

871

Briggs & Stratton 261961

GUIDE, EXHAUST VALVE

$14.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 231218

GUIDE, INTAKE VALVE

$14.99

$

In Stock, Qty 7

0

872

Briggs & Stratton 281361

COVER, AIR CLEANER
(Superseded to 691332)

$

$

Not available

875

Briggs & Stratton 494237

BODY, AIR CLEANER
(Superseded to 696129)

$

$

Not available

877

Briggs & Stratton 393456

DIODE & CONNECTOR ASSY

$20.99

$

In Stock, only 1 left!

0

950

Briggs & Stratton 94642

SCREW, FUEL BOWL
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 94010

LOCKNUT, AIR CLEANER MOUNTING
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 495933

BOWL ASSEMBLY, CARBURETOR

$

$

Not available

977

Briggs & Stratton 494385

CARBURETOR GASKET KIT
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

987

Briggs & Stratton 281166

SEAL, THROTTLE SHAFT
(Superseded to 691326)

$5.49

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 281400

FAN, FLYWHEEL
(Superseded to 695493)

$92.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

RETAINER, FAN
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1019

Briggs & Stratton 491252

LABEL KIT

$35.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499362

LABEL, KIT-EMISSION

$3.99

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 94673

SCREW, SHOULDER, HEX HEAD
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

1090

Briggs & Stratton 497607

P/N CONFLICT - CHECK WITH SUPPLIER
(Superseded to 691286)

$26.99

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 281364

CAP, LIMITER
(Superseded to 691333)

$9.49

$

In Stock, only 1 left!

0

1095

Briggs & Stratton 498539

VALVE OVERHAUL GASKET SET

$38.99

$

Usually ships in 2-12 days

0

2500

Electrolux/AYP 28R707-1140

REPLACEMENT ENGINE

$

$

Not available

Electrolux/AYP 496050

REPLACEMENT SHORTBLOCK

$

$

Not available
