71301 (12.5-32 XLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 288707-1142-E1 Parts Diagram

Lawn Tractor

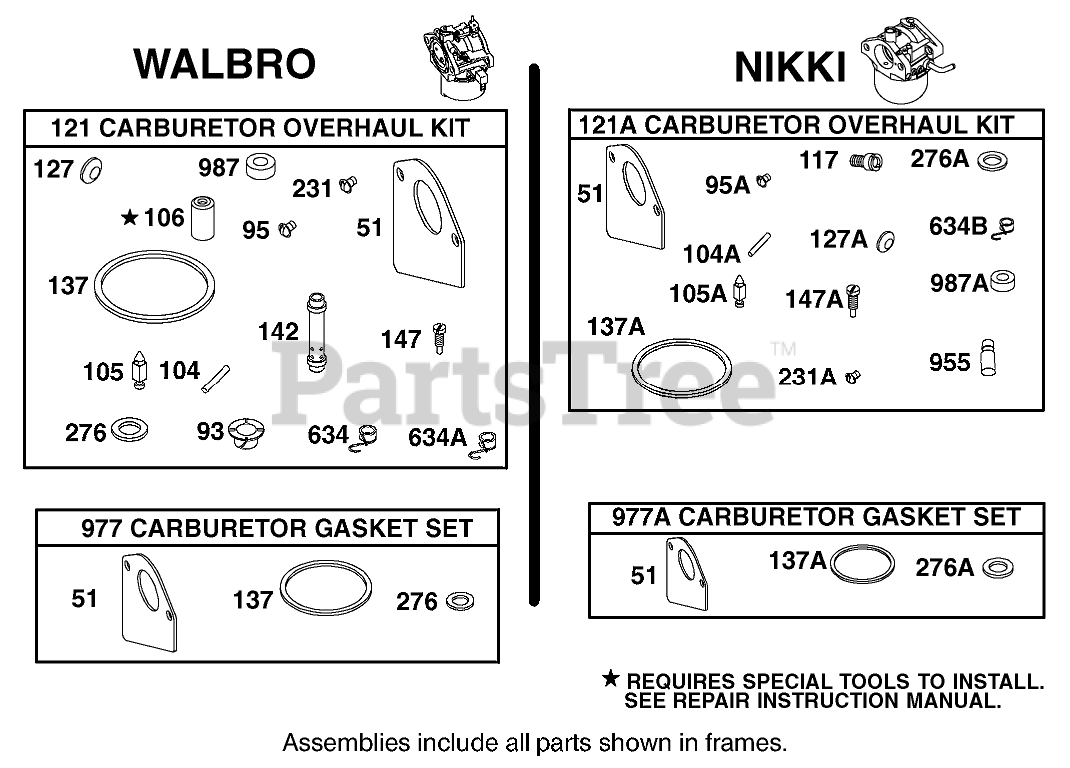

CARBURETOR OVERHAUL KIT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 288707-1142-E1 Parts Diagram

  • Title

Briggs & Stratton 694925

Main Jet (High Altitude)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$17.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.49

$

In Stock, only 2 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 1 left!

0

105A

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$15.99

$

In Stock, Qty 20+

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

In Stock, only 3 left!

0

117

Briggs & Stratton 690880

Main Jet (Standard)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$17.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 694930

Carburetor Overhaul Kit

$104.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 499220

Carburetor Kit
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

127A

Briggs & Stratton 694916

Welch Plug
(Superseded to 806460)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$10.99

$

In Stock, only 1 left!

0

127

Briggs & Stratton 695005

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 1 left!

0

137A

Briggs & Stratton 694920

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$9.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 691434

Carburetor Nozzle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$23.99

$

Usually ships in 2-12 days

0

147A

Briggs & Stratton 694927

Pilot Jet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$19.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet-Pilot

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$22.99

$

Usually ships in 2-12 days

0

231A

Briggs & Stratton 690718

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

Usually ships in 2-12 days

0

231

Briggs & Stratton 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, only 2 left!

0

276A

Briggs & Stratton 690997

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

In Stock, Qty 6

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692284

Intake Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 2 left!

0

634A

Briggs & Stratton 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 694912

Spring/Seal Assembly

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$12.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 690801

Spring / Seal ASM

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$8.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 694924

Carburetor Plug

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

Usually ships in 2-12 days

0

95A

Briggs & Stratton 690718

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, only 2 left!

0

977A

Briggs & Stratton 694931

Carburetor Gasket Set

$21.99

$

In Stock, only 3 left!

0

977

Briggs & Stratton 494385

Carburetor Gasket Kit
(Superseded to 697241)

$43.99

$

In Stock, only 1 left!

0

987A

Briggs & Stratton 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

Usually ships in 2-12 days

0
