71301 (12.5-32 XLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 288707-1142-E1 Parts Diagram

Lawn Tractor

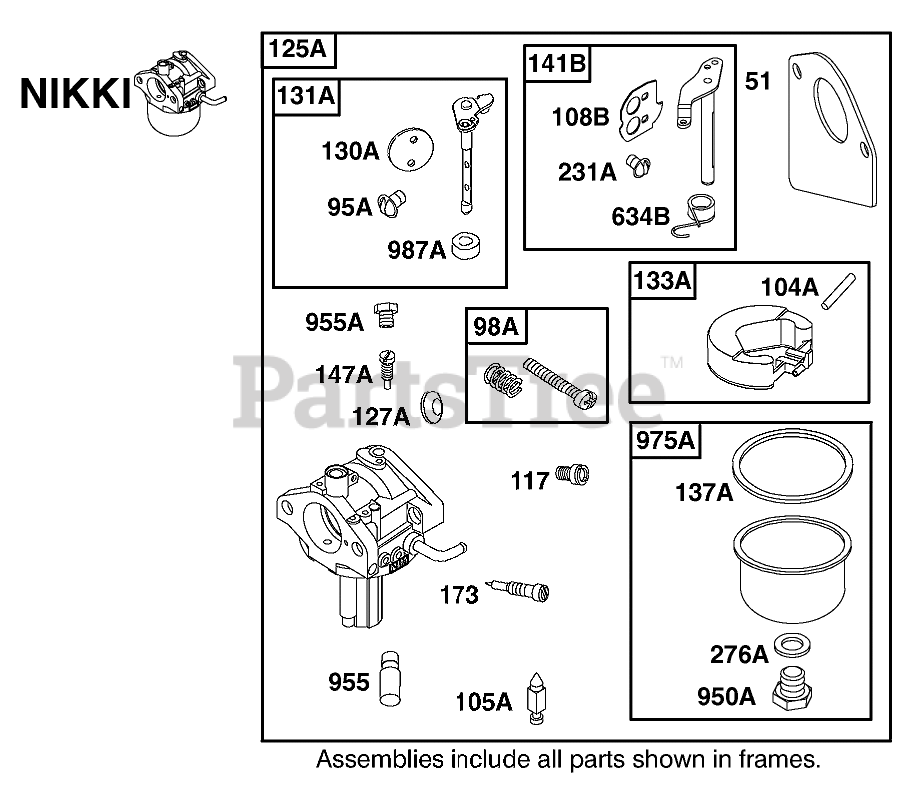

CARBURETOR ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 288707-1142-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692284

Intake Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 692284

Intake Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

In Stock, only 2 left!

0

95A

Briggs & Stratton 690718

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

Usually ships in 2-12 days

0

98A

Briggs & Stratton 694907

Idle Speed Kit

$9.99

$

Usually ships in 2-12 days

0

104A

Briggs & Stratton 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.49

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 694922

Float Needle Valve
(Superseded to 696136)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$15.99

$

In Stock, Qty 20+

0

108B

Briggs & Stratton 694923

Choke Valve

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 690880

Main Jet (Standard)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$17.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 694925

Main Jet (High Altitude)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$17.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 694941

Carburetor
(Superseded to 699831)

$205.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 694916

Welch Plug
(Superseded to 806460)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$10.99

$

In Stock, only 1 left!

0

130A

Briggs & Stratton 694917

Throttle Valve

$10.99

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 694909

Throttle Shaft Kit

$64.99

$

Usually ships in 2-12 days

0

133A

Briggs & Stratton 694914

Carburetor Float ASM

$28.99

$

In Stock, Qty 8

0

137A

Toro 1

Label-Emissions

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137A

Toro 1

Label-Emissions

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

141B

Briggs & Stratton 694913

Choke Shaft

$45.99

$

In Stock, only 1 left!

0

147A

Briggs & Stratton 694927

Pilot Jet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$19.99

$

Usually ships in 2-12 days

0

173

Briggs & Stratton 694926

Idle Mixture Valve

$14.99

$

Usually ships in 2-12 days

0

231A

Briggs & Stratton 690718

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

Usually ships in 2-12 days

0

276A

Toro 1

Label-Emissions

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276A

Toro 1

Label-Emissions

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

634B

Briggs & Stratton 694912

Spring/Seal Assembly

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$12.99

$

Usually ships in 2-12 days

0

950A

Briggs & Stratton 694919

Float Bowl Screw

$10.99

$

Usually ships in 2-12 days

0

955

Briggs & Stratton 694924

Carburetor Plug

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.49

$

Usually ships in 2-12 days

0

955A

Briggs & Stratton 694921

Carburetor Plug

$4.99

$

In Stock, only 1 left!

0

975A

Briggs & Stratton 694908

Float Bowl

$45.99

$

Usually ships in 2-12 days

0
