71301 (12.5-32 XLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 288707-1142-E1 Parts Diagram

Lawn Tractor

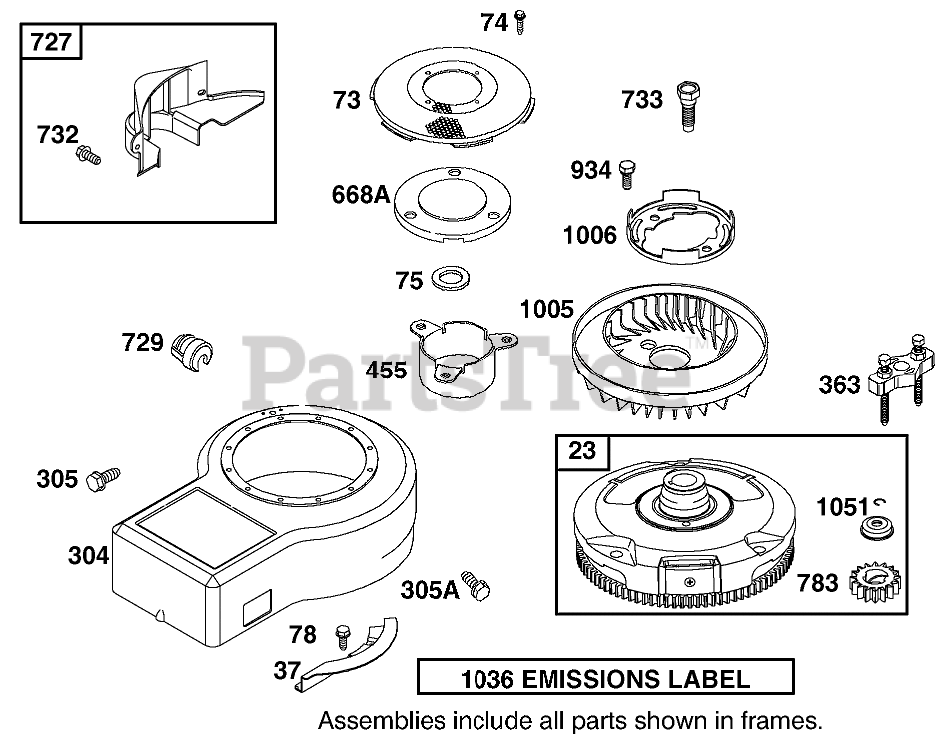

BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 288707-1142-E1 Parts Diagram

  • Title

1005

Briggs & Stratton 691905

Flywheel Fan

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 695699

Emissions Label

$2.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

23

Briggs & Stratton 693557

Flywheel

$

$

Not available

304

Briggs & Stratton 690846

Blower Housing

$108.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 692127

Screw (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

305

Briggs & Stratton 692198

Screw (Rocker Cover)

$5.99

$

In Stock, Qty 11

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

37

Briggs & Stratton 690456

Flywheel Guard

$7.49

$

Usually ships in 2-12 days

0

455

Briggs & Stratton 691173

Flywheel Cup

$37.99

$

Usually ships in 2-12 days

0

668A

Briggs & Stratton 691323

Spacer

$4.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter

$26.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 690596

Wire Clip

$

$

Not available

732

Briggs & Stratton 691002

Screw (Dipstick Tube)

$8.49

$

In Stock, only 2 left!

0

733

Briggs & Stratton 691658

Screw-Crankshaft Extension
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

73

Briggs & Stratton 691748

Rotating Screen

$232.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 691655

Screw (Rotating Screen)

$3.99

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 690582

Washer-Flywheel

$4.49

$

In Stock, only 4 left!

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

78

Briggs & Stratton 690661

Screw

$3.49

$

In Stock, Qty 8

0

934

Briggs & Stratton 691058

Screw

$5.99

$

In Stock, Qty 11

0
