713008 (135M675G009) - Turf Pro Lawn Tractor (1995) (Hardware Wholesalers) Hood Style 5/Muffler Parts Diagram

Lawn Tractor

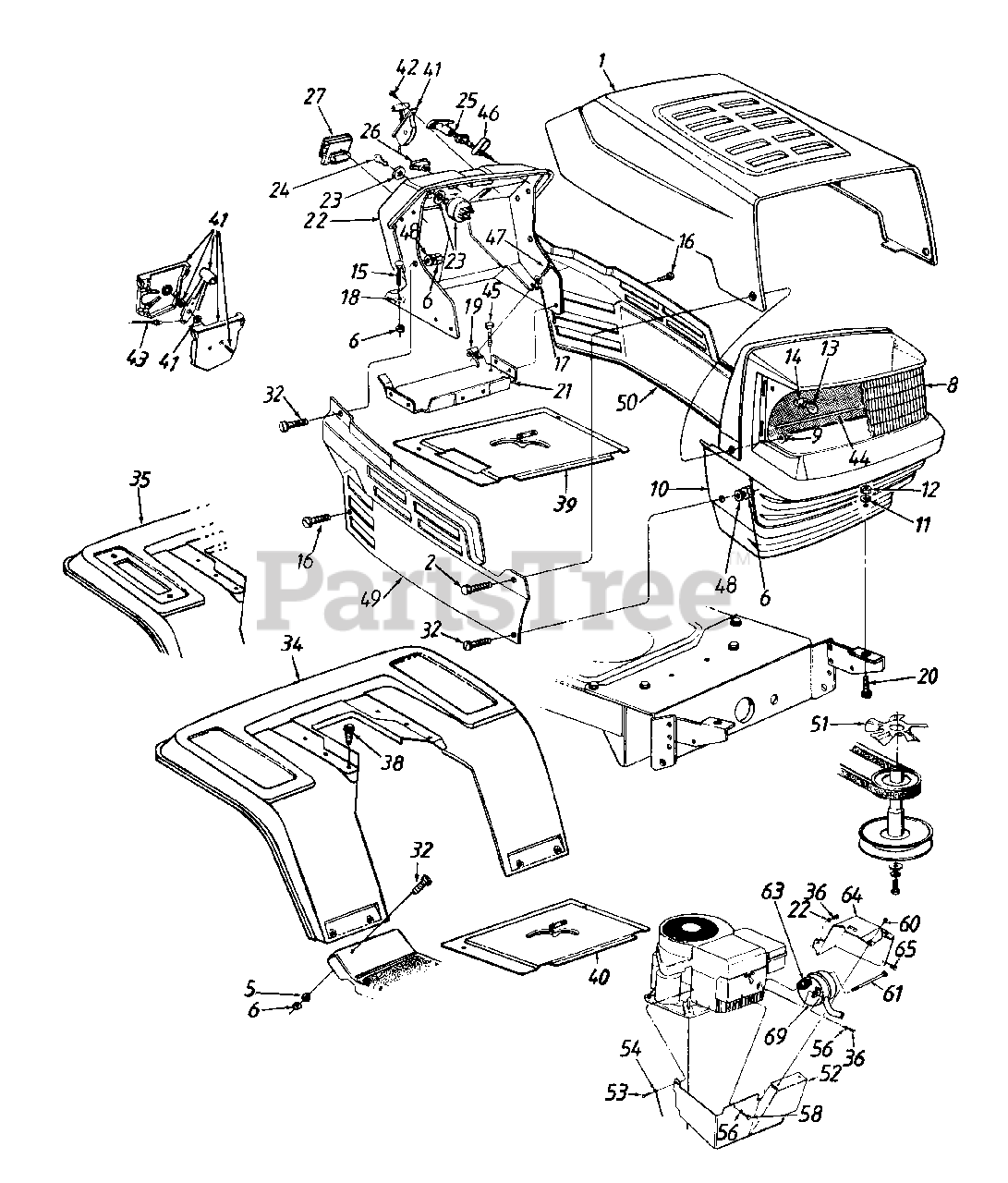

Hood Style 5/Muffler Parts Diagram

  • Title

1

MTD 783-0250

Hood

Variations

MTD 783-0250-0480

HOOD-O STY LOUVER - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0250-0483

HOOD-O STY LOUVER - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0250-0498

HOOD-STY O W/LOUVE - OLD CUB YELLOW (0498)

$

$

Not available

MTD 783-0250-0499

No Longer Available HOOD-STY O - CUB BEIGE (0499)

$

$

Not available

MTD 783-0250-0629

HOOD-O STY LOUVER - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0250-0638

HOOD-O STY LOUVER - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0250-0640

HOOD-O STY LOUVER - CO-OP GREEN (0640)

$

$

Not available

MTD 783-0250-0648

HOOD-S - TECH GRAY (0648)

$

$

Not available

MTD 783-0250-0650

HOOD-O STY LOUVER - RED METALLIC (0650)

$

$

Not available

MTD 783-0250-0660

No Longer Available HOOD-STY O - TEAL (0660)

$

$

Not available

MTD 783-0250-0662

HOOD-O STY LOUVER - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0250-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0250-0665

HOOD-O STY LOUVER - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0250-0667

HOOD-STY O W/LOUVE - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0250-0668

No Longer Available HOOD-STY O - MOSS GREEN (0668)

$

$

Not available

MTD 783-0250-0674

HOOD-STY O W/LOUVE - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0250-0677

No Longer Available HOOD-O STY - GRASS GREEN (0677)

$

$

Not available

MTD 783-0250-0686

No Longer Available HOOD-STY O - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 783-0250-0687

No Longer Available USE 783-0250A-0687 HOOD-O STY - PINE GREEN (0687)

$

$

Not available

MTD 783-0250-0688

No Longer Available HOOD-STY O - SPRING GREEN (0688)

$

$

Not available

MTD 783-0250-0691

HOOD-STY O W/LOUVE - BLACK JACK (0691)

$

$

Not available

MTD 783-0250-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0250-0709

HOOD-O STY LOUVER - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0250-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

2

MTD 738-0724

Shld. Bolt .375" Dia. x .125" Lg.
(Superseded to 938-0952A)

$7.49

$

In Stock, Qty 10

0

3

MTD 736-0342

Fl-Wash. .28" I.D. x .75" O.D.

$7.49

$

Usually ships in 3-6 days

0

6

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

8

MTD 731-1099A

Headlight Lens
(Superseded to 931-1099A)

$92.99

$

In Stock, only 1 left!

0

9

MTD 712-0380

Flange L-Nut 1/4-28 Thd.

$3.99

$

In Stock, only 2 left!

0

10

MTD 731-1097B

Grille
(Superseded to 931-1097G)

$192.99

$

Usually ships in 3-6 days

0

11

MTD 736-3078

Fl-Wash. .344" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0

12

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 3 left!

0

14

MTD 725-1649

Socket
(Superseded to 925-1649A)

$11.99

$

In Stock, Qty 20+

0

15

MTD 710-0703

Carriage Bolt 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 15

0

16

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

17

MTD 736-0173

Fl-Wash. .281" I.D. x .73" O.D.

$4.49

$

In Stock, Qty 20+

0

18

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

19

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 17632A

Gas Tank Support Brkt.

Variations

MTD 17632A-0637

Gas Tank Support Brkt. - POWDER BLACK (0637)

$

$

Not available

$

$

22

MTD 731-1096B

Dash w/Ammeter Hole
(Superseded to 753-04861)

$

$

Not available

MTD 731-1337A

Dash w/o Ammeter Hole

$111.99

$

Usually ships in 3-6 days

0

23

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

24

MTD 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

MTD 746-0616A

Choke Control
(Superseded to 946-0616A)

$26.99

$

In Stock, Qty 5

0

MTD 746-0614A

Choke Control

$24.99

$

In Stock, only 1 left!

0

MTD 746-3021

Choke Control (Vanguard & O.H.V.)

$26.99

$

Usually ships in 3-6 days

0

MTD 746-0720

Choke Control (Tec.)

$

$

Not available

26

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

27

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

32

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

MTD 17870

Fender
(Superseded to 17870C)

Variations

MTD 17870-0483

FENDER-RR W/FRAME - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17870-0498

FENDER-RR W/FRAME - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17870-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17870-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17870-0638

FENDER-RR W/FRAME - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17870-0640

No Longer Available FENDER - CO-OP GREEN (0640)

$

$

Not available

MTD 17870-0648

No Longer Available FENDER-RR - TECH GRAY (0648)

$

$

Not available

MTD 17870-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17870-0663

No Longer Available FENDER - CAYMEN GREEN (0663)

$

$

Not available

MTD 17870-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17870-0667

FENDER-RR W/FRAME - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17870-0668

No Longer Available FENDER - MOSS GREEN (0668)

$

$

Not available

MTD 17870-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 17870-0686

No Longer Available - SIMPLICITY ORANGE (0686)

$

$

Not available

MTD 17870-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 17870-0692

No Longer Available FENDER - AGWAY BLUE (0692)

$

$

Not available

$

$

35

MTD 17871A

Fender w/Cutout

Variations

MTD 17871A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17871A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17871A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 17871A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 17871A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17871A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 17871A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 17871A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 17871A-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 17871A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 17871A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 17871A-0687

No Longer Available FENDER-RR - PINE GREEN (0687)

$

$

Not available

MTD 17871A-0691

No Longer Available FENDER-REA - BLACK JACK (0691)

$

$

Not available

MTD 17871A-0692

No Longer Available FENDER-R - AGWAY BLUE (0692)

$

$

Not available

$

$

38

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 17954A

Shift Cover w/Cutout
(Superseded to 17954B-0637)

Variations

MTD 17954A-0637

COVER-SHIFT - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 17286A

Shift Cover
(Superseded to 17286B-0637)

Variations

MTD 17286A-0637

Shift Cover - POWDER BLACK (0637)

$42.99

$

Usually ships in 3-6 days

0

$42.99

$

Usually ships in 3-6 days

0

41

MTD 831-0823A

Throttle Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

42

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

43

MTD 746-0776

Throttle Control Wire
(Superseded to 946-0638)

Note: New Part

$10.99

$

In Stock, Qty 9

0

MTD 746-0634

Throttle Control Wire
(Superseded to 946-0634)

$11.99

$

Usually ships in 3-6 days

0

44

MTD 777-9206

Grille Reflector Label
(Superseded to 777X40318)

$

$

Not available

45

MTD 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg.

$4.99

$

Usually ships in 3-6 days

0

46

MTD 17782

Choke Retainer

$

$

Not available

47

MTD 710-0642

Hex TT-Tap Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

48

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 783-0150A

Side Panel - R.H.

Variations

MTD 783-0150A-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 783-0150A-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0150A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0150A-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0150A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

MTD 783-0150A-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0150A-0648

No Longer Available - TECH GRAY (0648)

$

$

Not available

MTD 783-0150A-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0150A-0660

No Longer Available - TEAL (0660)

$

$

Not available

MTD 783-0150A-0662

Side Panel - R.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0150A-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0150A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0150A-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0150A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0150A-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0150A-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0150A-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0150A-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

MTD 783-0150A-0709

No Longer Available - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 783-0150A-0717

No Longer Available - SILVER MIST (0717)

$

$

Not available

$

$

50

MTD 783-0151

Side Panel - L.H.

Variations

MTD 783-0151-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0151-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 783-0151-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0151-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0151-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

MTD 783-0151-0662

Side Panel - L.H. - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0151-0663

No Longer Available - CAYMEN GREEN (0663)

$

$

Not available

MTD 783-0151-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0151-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0151-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 783-0151-0677

No Longer Available - GRASS GREEN (0677)

$

$

Not available

MTD 783-0151-0687

No Longer Available - PINE GREEN (0687)

$

$

Not available

MTD 783-0151-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

MTD 783-0151-0692

No Longer Available - AGWAY BLUE (0692)

$

$

Not available

$

$

51

MTD 17199

Cooling Fan
(Superseded to 17199-0637)

Variations

MTD 17199-0637

Cooling Fan - POWDER BLACK (0637)

$90.99

$

Usually ships in 3-6 days

0

$90.99

$

Usually ships in 3-6 days

0

52

MTD 16936

Muffler Heat Shield-Front

$

$

Not available

53

MTD 710-0323

Truss Mach. Scr. 5/16-18 x .75" Lg.

$4.99

$

In Stock, only 2 left!

0

54

MTD 725-0980

Ground Wire

$

$

Not available

56

MTD 736-0175

Spr. Wash. 1/4" I.D.
(Superseded to 936-0175)

$3.99

$

In Stock, only 3 left!

0

58

MTD 710-0294

Hex Bolt 1/4-20 x 3/8" Lg.

$3.49

$

Usually ships in 3-6 days

0

60

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

61

MTD 738-0636

Shoulder Bolt
(Superseded to 938-0636)

$

$

Not available

63

MTD 721-0208

Exhaust Gasket
(Superseded to BS-692236)

$5.49

$

In Stock, Qty 20+

0

64

MTD 683-0042A

Muffler Heat Shield - L.H.

Variations

MTD 683-0042A-0637

SHEID ASSY.HEAT - POWDER BLACK (0637)

$

$

Not available

$

$

65

MTD 712-0147

Speed Nut #10-24 Thd.

$6.99

$

Usually ships in 3-6 days

0

69

MTD 751-0465

Muffler
(Superseded to 951-0465A)

$

$

Not available

70

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

Muffler

$

$

Not available

MTD 751-0443A

Muffler
(Superseded to 951-0443A)

Note: Used with 12 & 12.5 H.P. Tecumseh

$

$

Not available

MTD 721-0208

Gasket
(Superseded to BS-692236)

Note: Used on Muffler P/N 751-0443A

$5.49

$

In Stock, Qty 20+

0

MTD 738-0636

Shoulder Bolt
(Superseded to 938-0636)

Note: Hardware for Muffler P/N 751-0443A

$

$

Not available
