71300 (12-32 XL) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE SYSTEM COMPONENTS ASSEMBLY Parts Diagram

Lawn Tractor

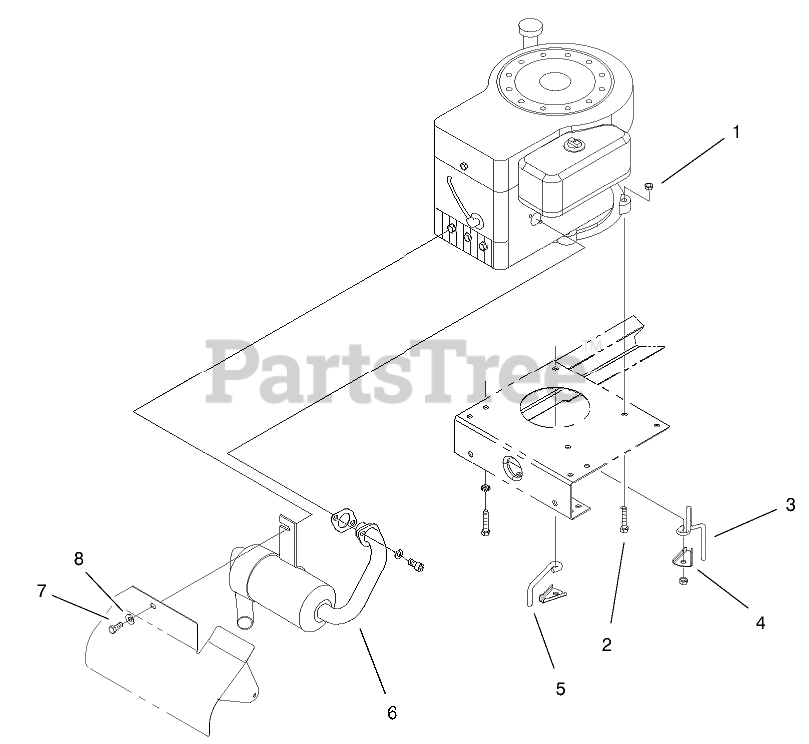

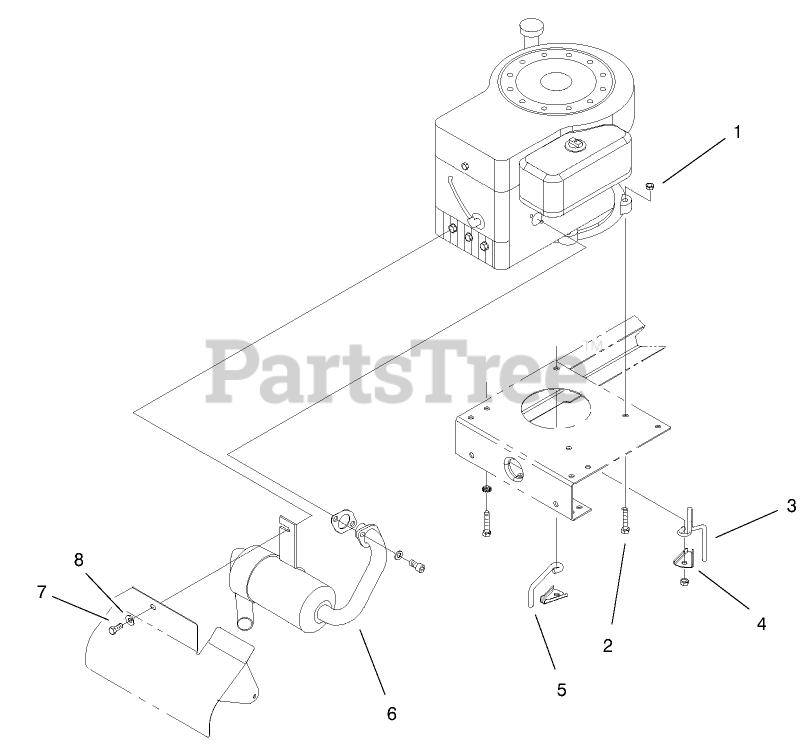

ENGINE SYSTEM COMPONENTS ASSEMBLY Parts Diagram

  • Title
1

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

2

Toro 322-9

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

3

Toro 88-6060

GUIDE-BELT, LH

$23.99

$

Usually ships in 3-6 days

0

4

Toro 76-3820

ANCHOR-GUIDE, BELT

$2.49

$

Usually ships in 3-6 days

0

5

Toro 88-5490

GUIDE-BELT, RH

$19.99

$

Usually ships in 3-6 days

0

6

Toro 88-6480

MUFFLER

$386.99

$

Usually ships in 3-6 days

0

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3253-3

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0
