713 (713245) - Cub Cadet Portable Generator (1985) Generator Parts Diagram

Portable Generator

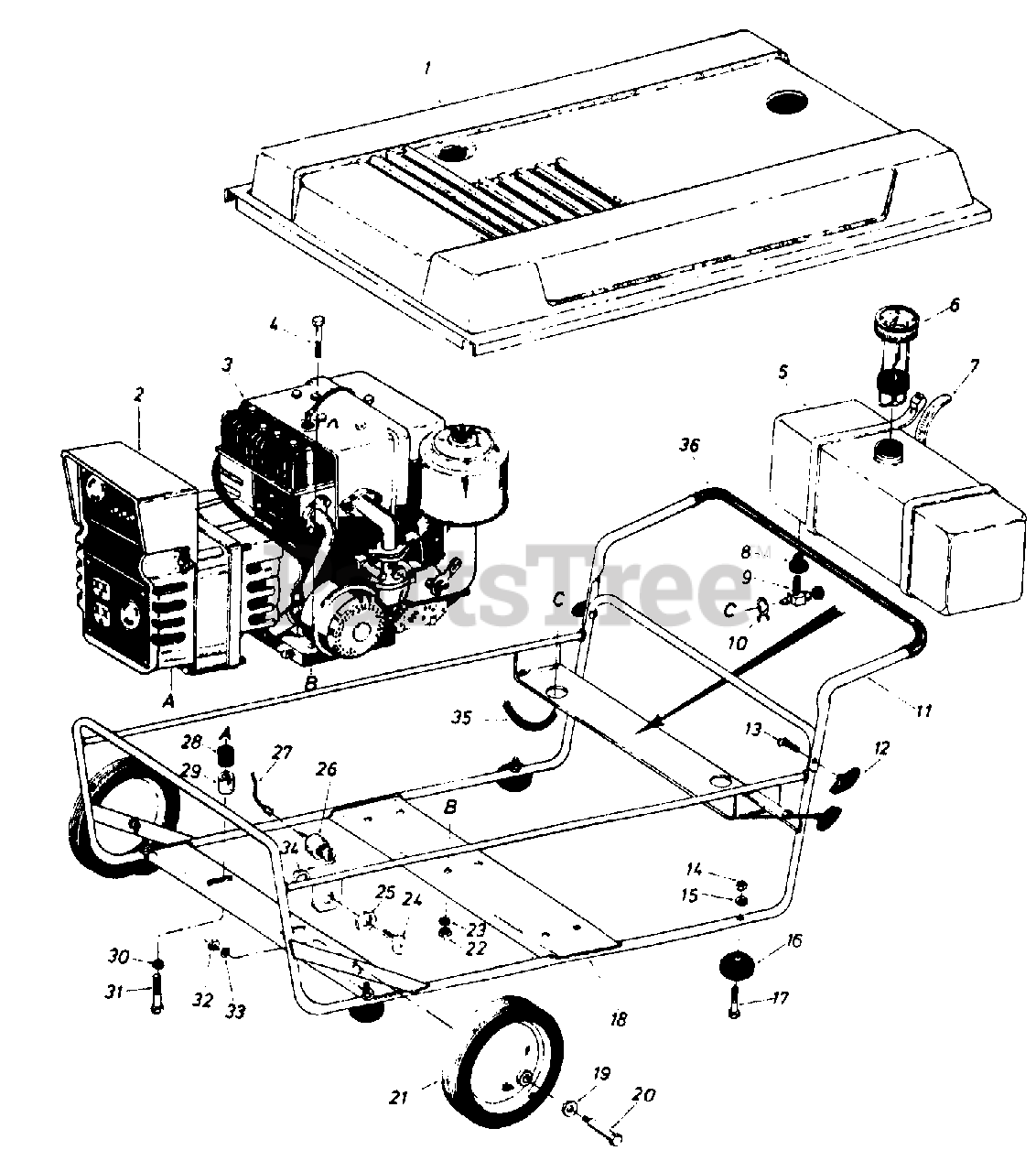

Generator Parts Diagram

  • Title

1

Cub Cadet 731-0557

Cover (714 and 725)

$

$

Currently unavailable

Cub Cadet 731-0558

Cover (713 and 723)

$

$

Currently unavailable

2

Generator

$

$

Not available

3

Engine

$

$

Not available

4

Cub Cadet 710-0380

Hex Bolt 5/16-18 x 1.75" Lg. *
(Superseded to 710-3180)

$5.49

$

In Stock, Qty 15

0

5

Cub Cadet 751-0225

Gas Tank

$

$

Not available

6

Cub Cadet 723-0155

Gas Cap

$

$

Not available

7

Cub Cadet 726-0153

Cable Tie
(Superseded to 726-0230)

$27.99

$

In Stock, only 1 left!

0

8

Cub Cadet 735-0149

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

9

Cub Cadet 751-0171

Fuel Shut Off Valve w/Filter
(Superseded to 951-0171)

$20.99

$

In Stock, only 1 left!

0

10

Cub Cadet 726-0207

Hose Clamp

$

$

Not available

11

Cub Cadet 749-0486

Upper Handle

$

$

Currently unavailable

12

Cub Cadet 09966

Hand Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0405

Curved Hd. Carriage Bolt 5/16-18 x 1.75" Lg.
(Superseded to 710-1174)

$7.49

$

In Stock, Qty 20+

0

14

Cub Cadet 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 736-0329

L.-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

16

Cub Cadet 735-0212

Rubber Bumper

$

$

Currently unavailable

17

Cub Cadet 710-0524

Truss Mach. Scr. 1/4-20 x 1.75" Lg.*

$

$

Currently unavailable

18

Cub Cadet 14675

Carriage Ass'y.

$

$

Currently unavailable

19

Cub Cadet 736-0302

Fl.-Wash. .625" I.D. x .943" O.D.

$

$

Not available

20

Cub Cadet 738-0282

Shoulder Bolt .623 Dia. x 2.75" Lg.

$

$

Not available

21

Cub Cadet 734-0584

Wheel Assy.-Comp. 10 x 1.75
(Superseded to 753-04874)

$58.99

$

In Stock, only 1 left!

0

22

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

Cub Cadet 725-0201

Ignition Key
(Superseded to 925-0201)

$9.49

$

In Stock, only 1 left!

0

25

Part of Ref. No. 26

$

$

Not available

26

Cub Cadet 725-0464

Ignition-Safety Switch
(Superseded to 925-1425)

$35.99

$

In Stock, only 1 left!

0

27

Cub Cadet 725-0800

Electric Wire

$

$

Currently unavailable

28

Cub Cadet 735-0213

Rubber Bumper

$

$

Currently unavailable

29

Cub Cadet 750-0525

Spacer

$

$

Currently unavailable

30

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 710-0259

Hex Sems Bolt 5/16-18 x .62" Lg.

$

$

Not available

32

Cub Cadet 712-0342

Hex Nut 3/8-16 Thd.*
(Superseded to 912-3008)

$4.99

$

In Stock, Qty 19

0

33

Cub Cadet 736-0169

L.-Wash. 3/8 " I.D.*

$3.99

$

In Stock, Qty 20+

0

34

Part of Ref. No. 26

$

$

Not available

35

Cub Cadet 751-0173

Fuel Line 29" Lg.
(Superseded to 751-10349-16)

$19.99

$

In Stock, Qty 11

0

36

Cub Cadet 718-0145

Grip

$

$

Currently unavailable
