71286 (XL 440 H) - Toro Lawn Tractor (SN: 260000001 - 260999999) (2006) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

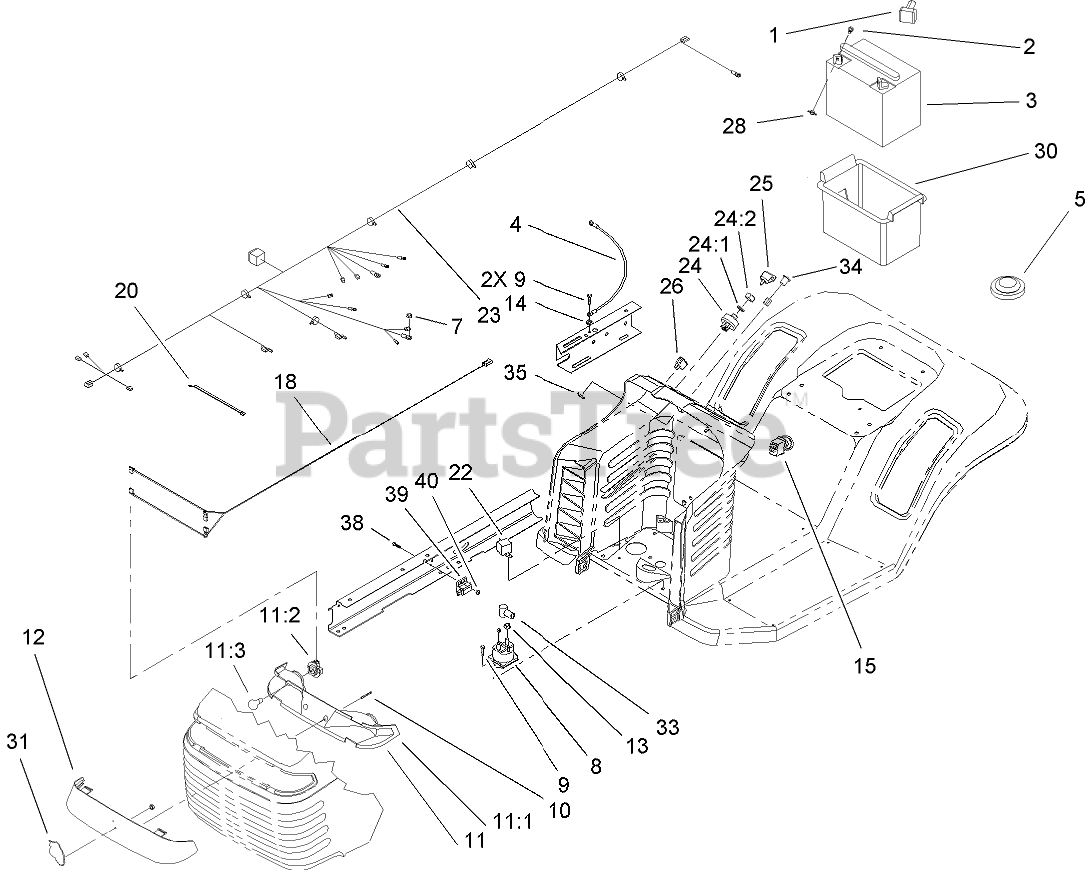

ELECTRICAL ASSEMBLY Parts Diagram

  • Title
1

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

2

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

3

Toro 104-1755

BATTERY-155 CCA
(Superseded to 105-1692)

$

$

Not available

4

Toro 44-8110

WIRE ASM

$27.99

$

Usually ships in 3-6 days

0

5

Toro 100-3524

SWITCH-SEAT

$60.99

$

In Stock, only 4 left!

0

7

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

8

Toro 106-8245

SOLENOID-STARTER

$95.99

$

In Stock, only 1 left!

0

9

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

10

$2.49

$

Usually ships in 3-6 days

0

11

Toro 88-3970

HEADLIGHT REFLECTOR ASM

$152.99

$

Usually ships in 3-6 days

0

11:1

Toro 93-8741

REFLECTOR-LIGHT

$

$

Not available

11:2

Toro 116262

SOCKET-HEADLIGHT

$47.99

$

Usually ships in 3-6 days

0

11:3

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

12

Toro 88-3960

LENS-HEADLIGHT

$67.99

$

In Stock, only 1 left!

0

13

Toro 32149-2

NUT-KEPS

$2.99

$

In Stock, Qty 20+

0

14

Toro 3255-7

WASHER-LOCK/EXT

$1.99

$

Usually ships in 3-6 days

0

15

Toro 93-9998

SWITCH-PTO

$44.99

$

In Stock, only 1 left!

0

18

Toro 99-1935

HARNESS-HEADLIGHT

$

$

Not available

20

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0

22

Toro 98-7249

RELAY

$22.99

$

In Stock, only 1 left!

0

23

Toro 107-4912

HARNESS-WIRE

$405.99

$

Usually ships in 3-6 days

0

24

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 11

0

24:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

24:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

25

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

26

Toro 92-8875

SWITCH-ROCKER

$17.99

$

In Stock, only 1 left!

0

28

Toro 32103-22

NUT-WING

$2.99

$

In Stock, Qty 17

0

30

Toro 88-4040

BOX-BATTERY

$36.99

$

Usually ships in 3-6 days

0

31

Toro 95-4248

EMBLEM

$28.99

$

Usually ships in 3-6 days

0

33

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$6.99

$

Usually ships in 3-6 days

0

34

Toro 95-7652

LIGHT-INDICATOR

$47.99

$

Usually ships in 3-6 days

0

35

Toro 32151-80

NUT-PUSH-ON, CIRCULAR

$1.49

$

In Stock, Qty 7

0

38

Toro 3274-14

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

39

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$18.99

$

In Stock, Qty 20+

0

40

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0
