71285 (18-44 HXLE) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) GOVERNOR ASSEMBLY BRIGGS AND STRATTON 31H777-0177-E1 Parts Diagram

Lawn Tractor

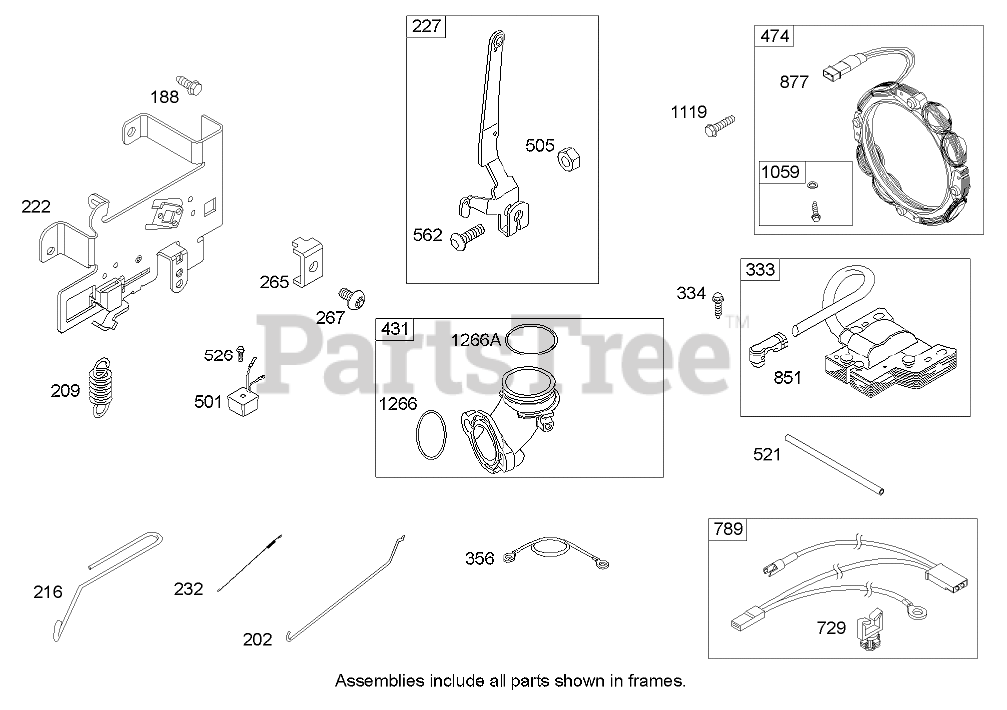

GOVERNOR ASSEMBLY BRIGGS AND STRATTON 31H777-0177-E1 Parts Diagram

  • Title

188

Briggs & Stratton 691693

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 12

0

202

Briggs & Stratton 691841

Link-Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 17

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 15

0

216

Briggs & Stratton 691840

Link-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, Qty 20+

0

227

Briggs & Stratton 691374

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 3 left!

0

232

Briggs & Stratton 691842

Spring-Link, Governor

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 691024

Clamp-Casing

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 695134

Screw
(Superseded to 792629)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

Note: Obtain parts from www.briggsandstratton.com

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 691061

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 697089

Stop-Wire

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0

431

Briggs & Stratton 697122

Elbow-Intake

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 696459

Alternator
(Superseded to 592831)

Note: Obtain parts from www.briggsandstratton.com

$101.99

$

In Stock, Qty 10

0

501

Briggs & Stratton 691185

Regulator
(Superseded to 845907)

Note: Obtain parts from www.briggsandstratton.com

$61.99

$

In Stock, Qty 20+

0

505

Briggs & Stratton 691251

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

521

Briggs & Stratton 690581

Shield-Cable

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

Usually ships in 2-12 days

0

526

Briggs & Stratton 697348

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 691119

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 17

0

729

Briggs & Stratton 691335

Clip?Wire

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

789

Briggs & Stratton 692037

Wiring-Harness

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

877

Briggs & Stratton 399916

Connector-Wire, Alternator

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

Usually ships in 2-12 days

0

1059

Briggs & Stratton 698516

Screw and Washer Kit

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 691183

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.99

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0
