71285 (18-44 HXLE) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) GEAR ASSEMBLY TRANSAXLE NO. 104-1760 Parts Diagram

Lawn Tractor

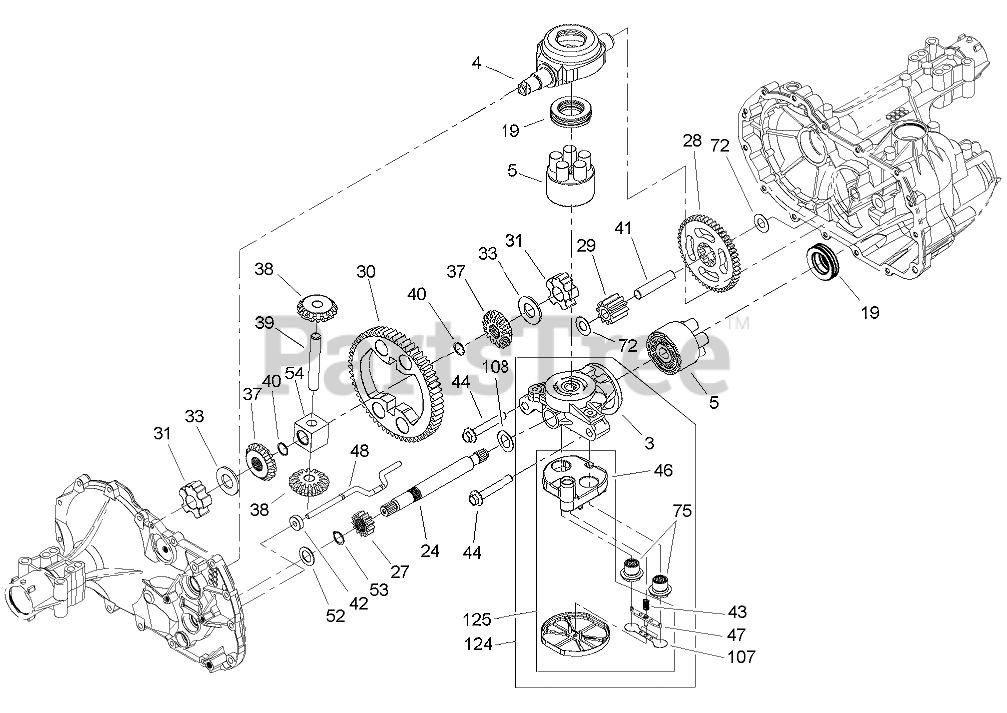

GEAR ASSEMBLY TRANSAXLE NO. 104-1760 Parts Diagram

  • Title
3

Toro 104-5303

CENTER SECTION ASM

$631.99

$

Usually ships in 3-6 days

0

4

Toro 104-5304

SWASHPLATE-TRUNNION

$194.99

$

Usually ships in 3-6 days

0

5

Toro 104-2106

CYLINDER BLOCK ASM
(Superseded to 103-2666)

$494.99

$

Usually ships in 3-6 days

0

19

Toro 94-6922

BEARING-THRUST

$62.99

$

In Stock, only 3 left!

0

24

Toro 104-5315

Shaft-Motor

$

$

Not available

27

Toro 104-5316

GEAR-PINNION, 13T

$33.99

$

Usually ships in 3-6 days

0

28

Toro 104-5317

GEAR-10T/48T

$192.99

$

Usually ships in 3-6 days

0

29

Toro 104-5318

GEAR-JACKSHAFT, 10T

$87.99

$

Usually ships in 3-6 days

0

30

Toro 104-5319

GEAR-BULL 60T

$

$

Not available

31

Toro 104-5320

BEARING-SLEEVE

$38.99

$

Usually ships in 3-6 days

0

33

Toro 94-1943

WASHER

$6.99

$

Usually ships in 3-6 days

0

37

Toro 104-5325

GEAR-MITER

$

$

Not available

38

Toro 104-5326

GEAR-MITER 15T

$

$

Not available

39

$

$

Not available

40

Toro 104-5328

RING-RETAINING, SPIRAL

$11.99

$

Usually ships in 3-6 days

0

41

Toro 104-5329

PIN-JACKSHAFT

$112.99

$

Usually ships in 3-6 days

0

42

Toro 104-5330

MAGNET-RING

$10.99

$

Usually ships in 3-6 days

0

43

Toro 104-5331

SPRING-BYPASS

$

$

Not available

44

$10.99

$

Usually ships in 3-6 days

0

46

Toro 104-5333

BASE-FILTER

$

$

Not available

47

Toro 104-5334

ACTUATOR-BYPASS

$

$

Not available

48

Toro 104-5335

ROD-ACTUATOR, BYPASS

$

$

Not available

52

Toro 104-5339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

53

Toro 104-5340

RING-RETAINING

$7.99

$

Usually ships in 3-6 days

0

54

Toro 104-5341

BEARING-BLOCK, CENTER

$77.99

$

Usually ships in 3-6 days

0

72

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

75

Toro 104-5348

CHECK PLUG ASM

$103.99

$

Usually ships in 3-6 days

0

107

Toro 104-5359

DEFLECTOR

$

$

Not available

108

Toro 104-5360

WASHER

$7.99

$

Usually ships in 3-6 days

0

124

Toro 106-6522

CENTER SECTION FILTER BYPASS ASM

$667.99

$

Usually ships in 3-6 days

0

125

Toro 106-6523

FILTER ASM

$128.99

$

Usually ships in 3-6 days

0

127

Toro 104-5368

SEAL KIT

Note: Not illustrated

$

$

Not available
