71285 (18-44 HXLE) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 31H777-0177-E1 Parts Diagram

Lawn Tractor

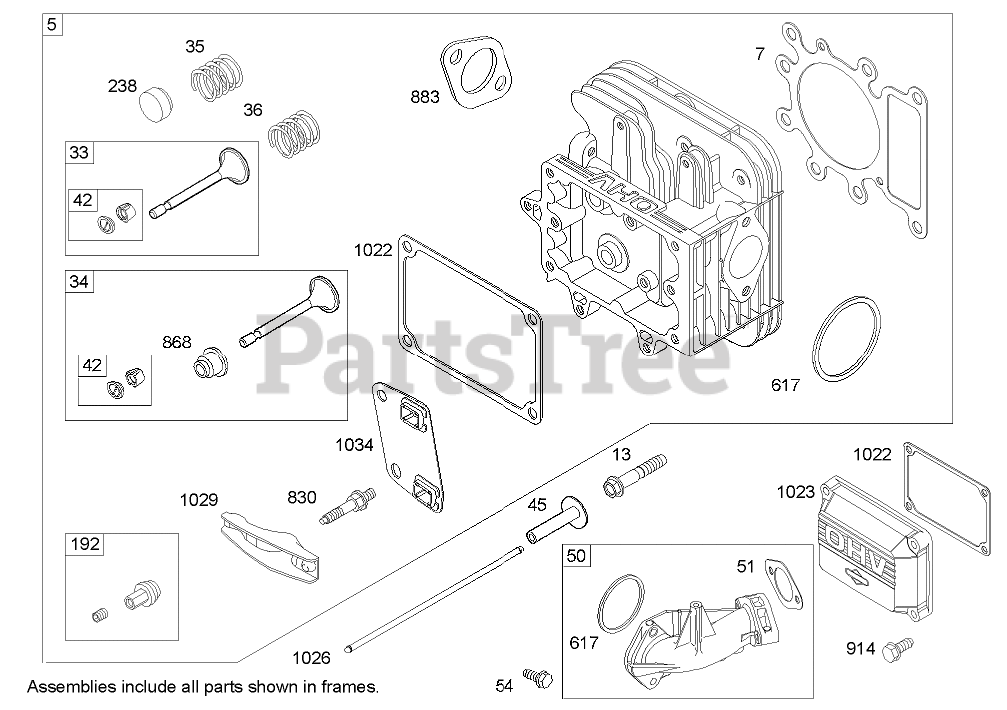

CYLINDER HEAD ASSEMBLY BRIGGS AND STRATTON 31H777-0177-E1 Parts Diagram

  • Title

5

Briggs & Stratton 698147

Head-Cylinder
(Superseded to 796026)

Note: Obtain parts from www.briggsandstratton.com

$226.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 699168

Gasket-Head, Cylinder
(Superseded to 796584)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 699168

Gasket-Head, Cylinder
(Superseded to 796584)

Note: Included in Valve Gasket Set-Ref. 1095.

$19.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 699168

Gasket-Head, Cylinder
(Superseded to 796584)

Note: Included in Engine Gasket Set-Ref. 358.

$19.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 690360

Screw
(Superseded to 84001963)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 695760

Valve-Exhaust
(Superseded to 792868)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 695761

Valve-Intake
(Superseded to 791935)

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 691279

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 10

0

36

Briggs & Stratton 691279

Spring-Valve

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 10

0

42

Briggs & Stratton 499586

Keeper-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

45

Briggs & Stratton 690564

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, Qty 20+

0

50

Briggs & Stratton 690193

Manifold-Intake
(Superseded to 592842)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

54

Briggs & Stratton 691148

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 691986

Adjustor-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, Qty 20+

0

238

Briggs & Stratton 691843

Cap-Valve

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 20+

0

617

Briggs & Stratton 692138

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

In Stock, Qty 18

0

617

Briggs & Stratton 692138

Seal-O Ring

Note: Included in Engine Gasket Set-Ref. 358.

$5.49

$

In Stock, Qty 18

0

830

Briggs & Stratton 691095

Stud-Arm, Rocker

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Engine Gasket Set-Ref. 358.

$10.99

$

In Stock, Qty 20+

0

868

Briggs & Stratton 690968

Seal-Valve

Note: Included in Valve Gasket Set-Ref. 1095.

$10.99

$

In Stock, Qty 20+

0

883

Briggs & Stratton 692236

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

914

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

1022

Briggs & Stratton 272475

Gasket-Cover, Rocker
(Superseded to 272475S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

1023

Briggs & Stratton 692492

Cover-Rocker
(Superseded to 797421)

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 2 left!

0

1026

Briggs & Stratton 692003

Rod?Push

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

Briggs & Stratton 692011

Rod?Push

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, Qty 20+

0

1029

Briggs & Stratton 691751

Arm-Rocker

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

1034

Briggs & Stratton 690822

Guide-Rod, Push

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 2 left!

0
