71285 (18-44 HXLE) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 31H777-0177-E1 Parts Diagram

Lawn Tractor

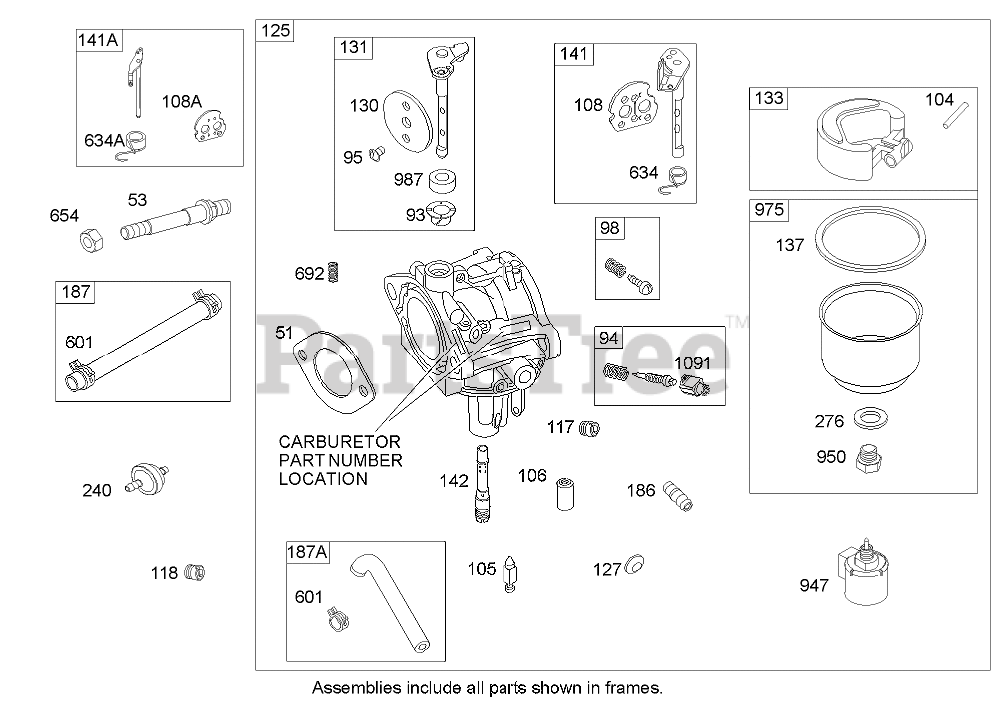

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 31H777-0177-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$3.49

$

In Stock, Qty 20+

0

51

Briggs & Stratton 692137

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 20+

0

53

Briggs & Stratton 690227

Stud

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 6

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

93

Briggs & Stratton 690602

Bushing-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 498030

Idle Mixture Kit
(Superseded to 794176)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 691636

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

95

Briggs & Stratton 691636

Screw

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.99

$

In Stock, only 2 left!

0

98

Briggs & Stratton 495800

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

104

Briggs & Stratton 690525

Pin-Hinge, Carburetor Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$6.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 231855

Valve-Needle, Float
(Superseded to 231855S)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 3 left!

0

106

Briggs & Stratton 690577

Seat-Inlet

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.99

$

In Stock, only 3 left!

0

108

Briggs & Stratton 690464

Valve?Choke

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 692344

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 694352

Jet-Main (Std)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 694352

Jet-Main (Std)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 697228

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 698445

Carburetor
(Superseded to 594593)

Note: Obtain parts from www.briggsandstratton.com

$143.99

$

In Stock, Qty 20+

0

127

Briggs & Stratton 695005

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

130

Briggs & Stratton 691750

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 495097

Choke Shaft Kit
(Superseded to 790905)

Note: Obtain parts from www.briggsandstratton.com

$45.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 495931

Choke Shaft Kit
(Superseded to 790902)

Note: Obtain parts from www.briggsandstratton.com

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

142

Briggs & Stratton 697140

Nozzle-Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

186

Briggs & Stratton 698174

Connector-Hose

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 697098

Line-Fuel
(Superseded to 791805)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

187A

Briggs & Stratton 699331

Line-Fuel (Molded)
(Superseded to 791805)

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 692255

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$5.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

634

Briggs & Stratton 690801

Spring / Seal ASM

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring and Seal Asm

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

634A

Briggs & Stratton 690802

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$9.49

$

Usually ships in 2-12 days

0

654

Briggs & Stratton 690958

Nut

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 11

0

947

Briggs & Stratton 694393

Solenoid-Fuel

Note: Obtain parts from www.briggsandstratton.com

$81.99

$

In Stock, only 1 left!

0

950

Briggs & Stratton 691657

Screw

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

975

Briggs & Stratton 495933

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 691326

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$5.49

$

Usually ships in 2-12 days

0

1091

Briggs & Stratton 691333

Cap-Limiter

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0
