71280 (17-44 HXLE) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) HYDRO TRANSAXLE ASSEMBLY Parts Diagram

Lawn Tractor

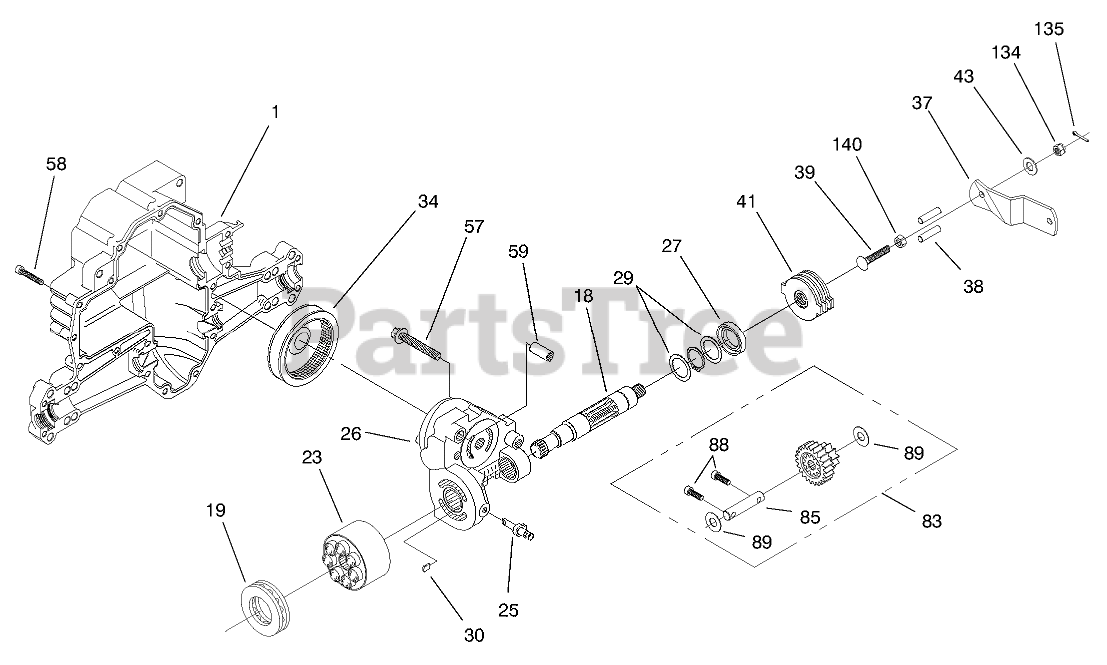

HYDRO TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 94-1900

HOUSING - LOWER

$

$

Not available

18

Toro 94-6955

SHAFT - MOTOR

$

$

Not available

19

Toro 94-6923

BEARING-THRUST

$116.99

$

Usually ships in 3-6 days

0

23

Toro 94-1913

CYLINDER BLOCK ASM
(Superseded to 127-3867)

$220.99

$

Usually ships in 3-6 days

0

25

Toro 94-1914

ACTUATOR-BYPASS

$62.99

$

Usually ships in 3-6 days

0

26

Toro 94-1915

ASM - CENTERSECTION

$

$

Not available

27

Toro 94-1916

SEAL - LIP

$17.99

$

Usually ships in 3-6 days

0

28

Toro 94-1917

RING - RETAINING

$

$

Not available

29

Toro 94-1918

WASHER

$

$

Not available

30

Toro 94-6925

PLATE-BYPASS

$7.99

$

Usually ships in 3-6 days

0

34

Toro 94-1920

ELEMENT - OIL FILTER
(Superseded to 105-1874)

$

$

Not available

37

Toro 93-3861

LEVER - BRAKE

$

$

Not available

38

Toro 92-6549

PIN - ACTUATING

$6.99

$

Usually ships in 3-6 days

0

39

Toro 94-1923

BOLT 5/16-18 X 1-3/4

$

$

Not available

41

Toro 94-1919

KIT-BRAKE ROTOR/STATOR

$167.99

$

Usually ships in 3-6 days

0

43

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

57

Toro 94-6926

BOLT

$9.99

$

Usually ships in 3-6 days

0

58

Toro 94-1926

BOLT

$6.99

$

Usually ships in 3-6 days

0

59

Toro 94-1927

PIN

$24.99

$

Usually ships in 3-6 days

0

83

Toro 94-1930

ASM-JACKSHAFT/PINION GEAR

$

$

Not available

85

Toro 94-6956

Jackshaft
(Superseded to 94-1931)

$

$

Not available

88

Toro 94-1932

CAPSCREW

$

$

Not available

89

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

134

Toro 93-3807

NUT-CASTLE

$20.99

$

Usually ships in 3-6 days

0

135

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

140

Toro 3296-20

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0
