Toro 71280 (17-44 HXLE) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) ENGINE SYSTEMS COMPONENTS ASSEMBLY Parts Lookup with Diagrams

1

Toro 88-4340

THROTTLE CONTROL ASM

$45.99

$

Usually ships in 3-6 days

1:1

Toro 66-0120

KNOB

$6.49

$

In Stock, only 2 left!

2

Toro 27-0220

SCREW-SPECIAL

$8.49

$

In Stock, only 4 left!

3

Toro 88-3880

GAS TANK ASM

$237.99

$

In Stock, only 1 left!

3:1

Toro 104047

BUSHING

(Superseded to 46-6560) 

$5.99

$

In Stock, Qty 20+

3:2

Toro 104048

VALVE-FUEL

$36.99

$

In Stock, only 2 left!

4

Toro 47-2963

HOSE-FUEL

(Superseded to 107-9297) 

$8.49

$

In Stock, only 2 left!

5

Toro 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

6

Toro 322-9

SCREW-HH

$3.99

$

In Stock, Qty 20+

7

Toro 93-3854

GUIDE-BELT, ENGINE

$16.99

$

Usually ships in 3-6 days

9

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

10

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

11

Toro 93-3832

PULLEY, ENGINE

$

Not available 

12

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

14

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

15

Toro 93-3892

MUFFLER WA 15.5

(Superseded to 99-6845) 

$495.99

$

Usually ships in 3-6 days

16

Toro 9267154

SCREW-HWH, TAPTITE

$3.99

$

In Stock, Qty 6

17

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

20

Toro 88-4410

GASKET-EXHAUST

$20.99

$

In Stock, Qty 5

21

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

22

Toro 3274-10

SCREW-HSH

$10.99

$

In Stock, Qty 20+

23

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

24

Toro 93-3855

GUIDE-BELT, RH

$16.99

$

Usually ships in 3-6 days

26

Toro 32149-1

NUT-KEPS

$6.49

$

In Stock, Qty 8

28

Toro 94-1952

ROD-TANK, GAS

$42.99

$

Usually ships in 3-6 days

29

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

30

Toro 88-4350

THROTTLE CABLE ASM

$31.99

$

In Stock, only 2 left!

31

Toro 88-3980

GAS CAP ASM

$35.99

$

In Stock, Qty 20+

35

Toro 99-8057

DECAL - ENGINE

$

Not available 

37

Toro 93-3809

BRACKET-GROUND

$

Not available 

39

Toro 94-1951

LATCH-HOOD

$9.49

$

Usually ships in 3-6 days

40

Toro 32144-112

SCREW-HWH

$1.49

$

In Stock, Qty 20+

41

Toro 93-3882

CLIP-TINNERMAN

$

Not available 

42

Toro 93-3880-03

SHIELD-MUFFLER

$

Not available 

44

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

45

Toro 93-8450-03

HEAT SHIELD ASM

$122.99

$

Usually ships in 3-6 days

46

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

47

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

48

Toro 93-9911

SCREEN-SILENCER, EXHAUST

$47.99

$

Usually ships in 3-6 days

49

Toro 32144-42

SCREW-THD FORM, HWH

$1.49

$

Usually ships in 3-6 days

50

Toro 88-4490

Reducer-Throttle Rpm (Only On: 71280)

$20.99

$

Usually ships in 3-6 days

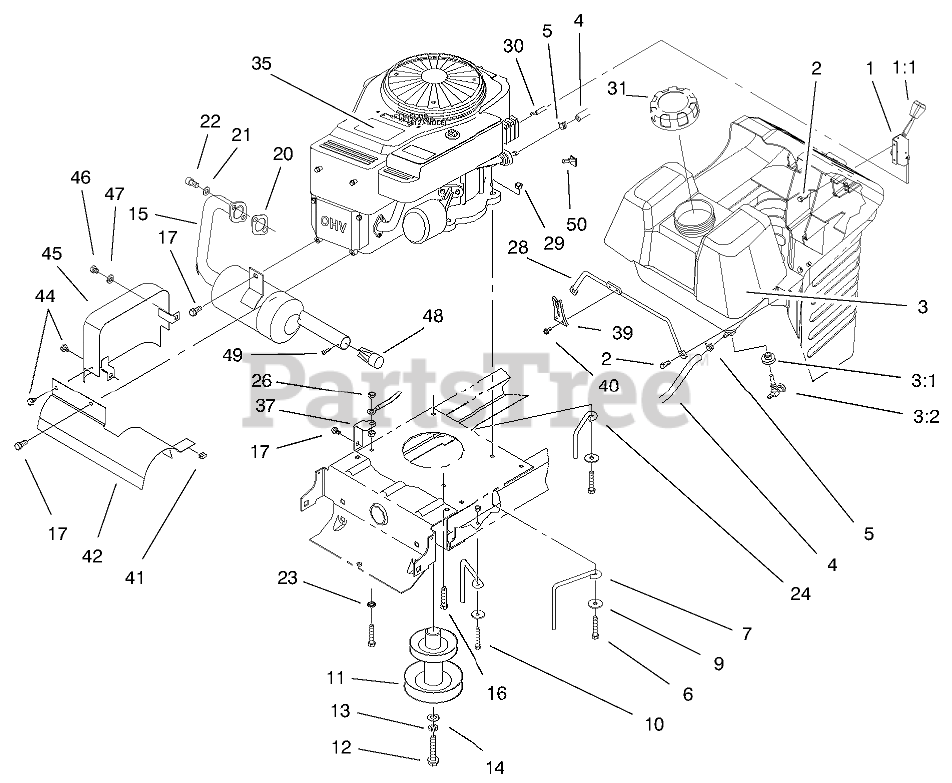

71280 (17-44 HXLE) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) ENGINE SYSTEMS COMPONENTS ASSEMBLY Parts Diagram

ENGINE SYSTEMS COMPONENTS ASSEMBLY Parts Diagram
