71255 (XLS 420 T) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) TRACTION DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

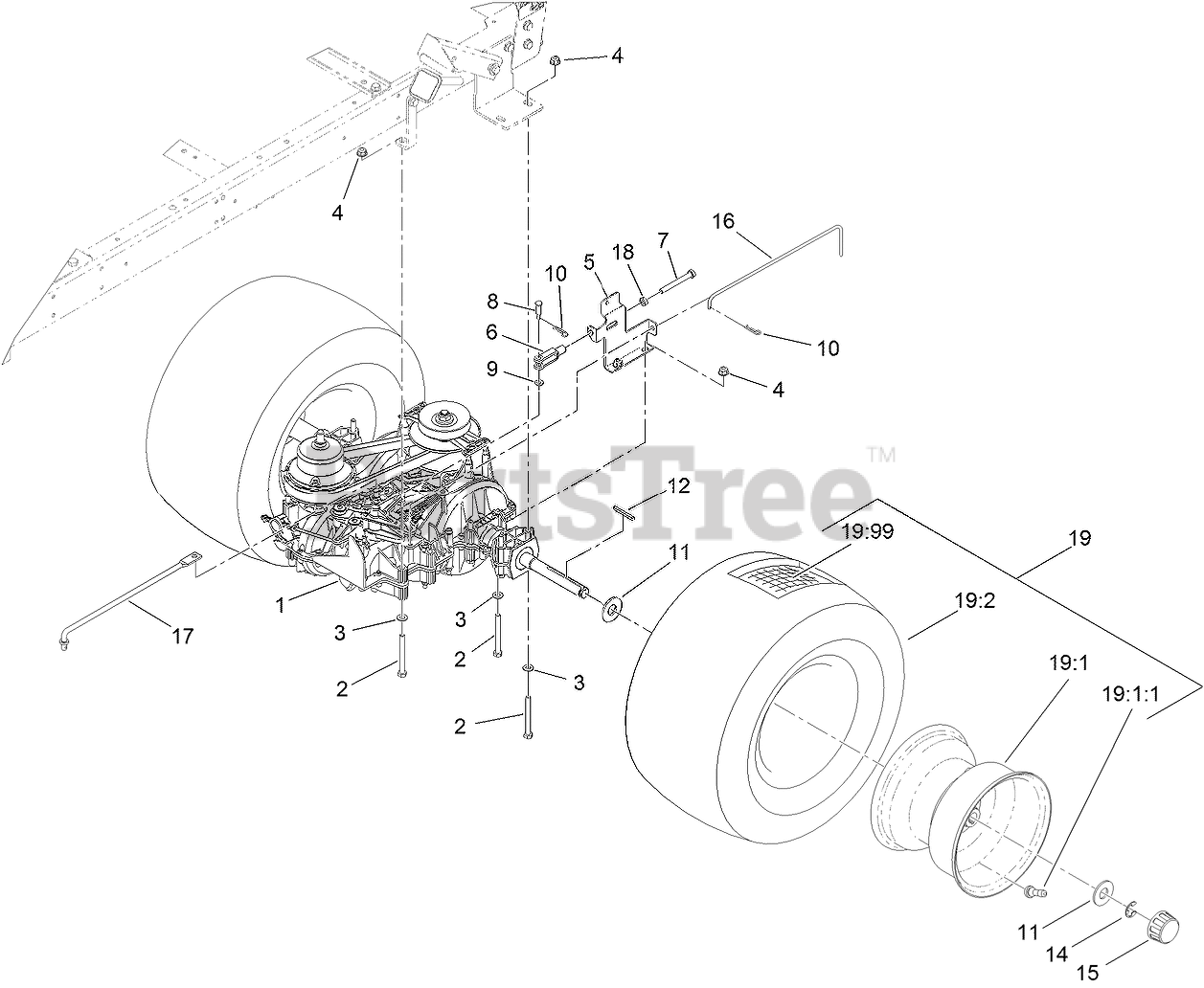

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title
1

Toro 121-3956

TRANSMISSION ASM

$1267.99

$

Usually ships in 3-6 days

0

2

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

5

Toro 119-8203-03

BRACKET-NEUTRAL

$34.99

$

Usually ships in 3-6 days

0

6

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

7

Toro 120-1177

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

$

$

Not available

9

Toro 145492

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

10

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

11

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

12

Toro 7-0036

KEY-SQUARE

$

$

Not available

14

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

15

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

16

Toro 119-1281

ROD-BYPASS

$12.99

$

Usually ships in 3-6 days

0

17

Toro 121-4014

ROD-MOTION CONTROL, REAR

$15.99

$

Usually ships in 3-6 days

0

18

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

19

Toro 121-3955

WHEEL AND TIRE ASM

$351.99

$

Usually ships in 3-6 days

0

19:1

$215.99

$

Usually ships in 3-6 days

0

19:1:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

19:2

Toro 119-8909

TIRE-4 PLY

$212.99

$

Usually ships in 3-6 days

0

19:99

Toro 232-41

Tube
(Superseded to 232-37)

$33.99

$

In Stock, only 1 left!

0
