71255 (XLS 420 T) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

Lawn Tractor

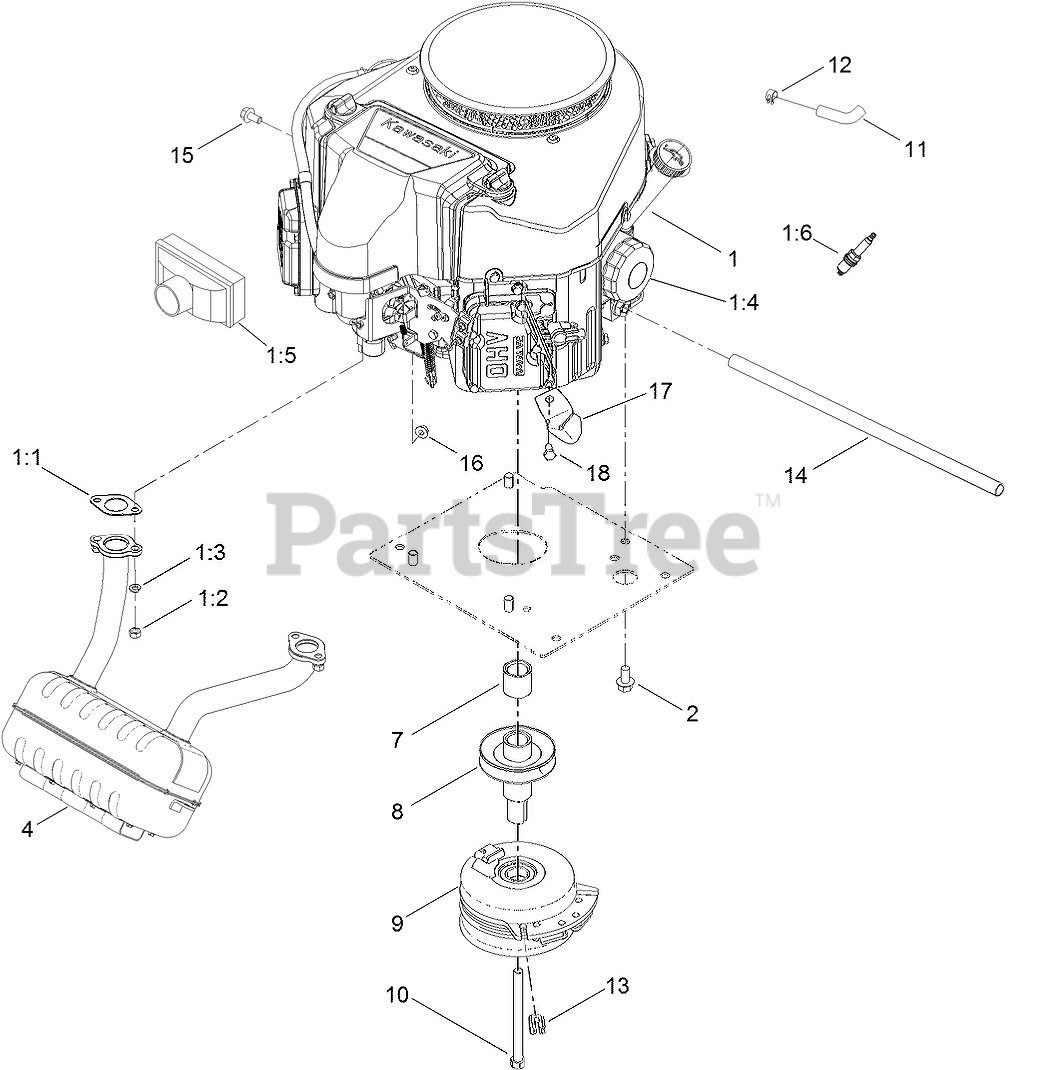

ENGINE, MUFFLER AND CLUTCH ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KAWASAKI TWIN, FR541V-S51-R

Note: Obtain parts from www.kawpowerepc.com

$

$

Not available

1

ENGINE-KAWASAKI TWIN, FR541V-S51-R

Note: Not serviced separately

$

$

Not available

1:1

Toro 1-653313

GASKET-EXHAUST

$4.99

$

Usually ships in 3-6 days

0

1:2

Toro 114-3549

NUT

$1.99

$

In Stock, Qty 20+

0

1:3

Toro 114-3550

WASHER-LOCK

$1.49

$

In Stock, Qty 6

0

1:4

Toro 125-3206

FILTER-OIL
(Superseded to 119-5852)

$18.99

$

In Stock, Qty 20+

0

1:5

Toro 125-3207

FILTER-AIR

$

$

Not available

1:6

Toro 125-3208

SPARK PLUG
(Superseded to 92-2153)

$4.99

$

In Stock, Qty 7

0

2

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

4

Toro 119-8237

MUFFLER-TWIN, KAWASAKI

$

$

Not available

7

Toro 119-8239

SPACER

$20.99

$

Usually ships in 3-6 days

0

8

Toro 117-9846

PULLEY-ENGINE

$

$

Not available

9

Toro 117-7468

CLUTCH-ELECTRIC

$534.99

$

In Stock, only 1 left!

0

10

Toro 3212-19

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

11

Toro 114-3765

HOSE-FUEL

$4.99

$

In Stock, only 1 left!

0

12

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

13

Toro 120-2217

ISOLATOR-CLUTCH

$2.99

$

In Stock, Qty 8

0

14

Toro 106-7022

TUBE-DRAIN, OIL

$9.49

$

Usually ships in 3-6 days

0

15

Toro 33104-016

SCREW-HHF

$2.99

$

In Stock, only 2 left!

0

16

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

17

Toro 121-0966

SHIELD-SPARK

$

$

Not available

18

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0
