71255 (XLS 420 T) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) 42 INCH DECK BELT AND BLADE ASSEMBLY Parts Diagram

Lawn Tractor

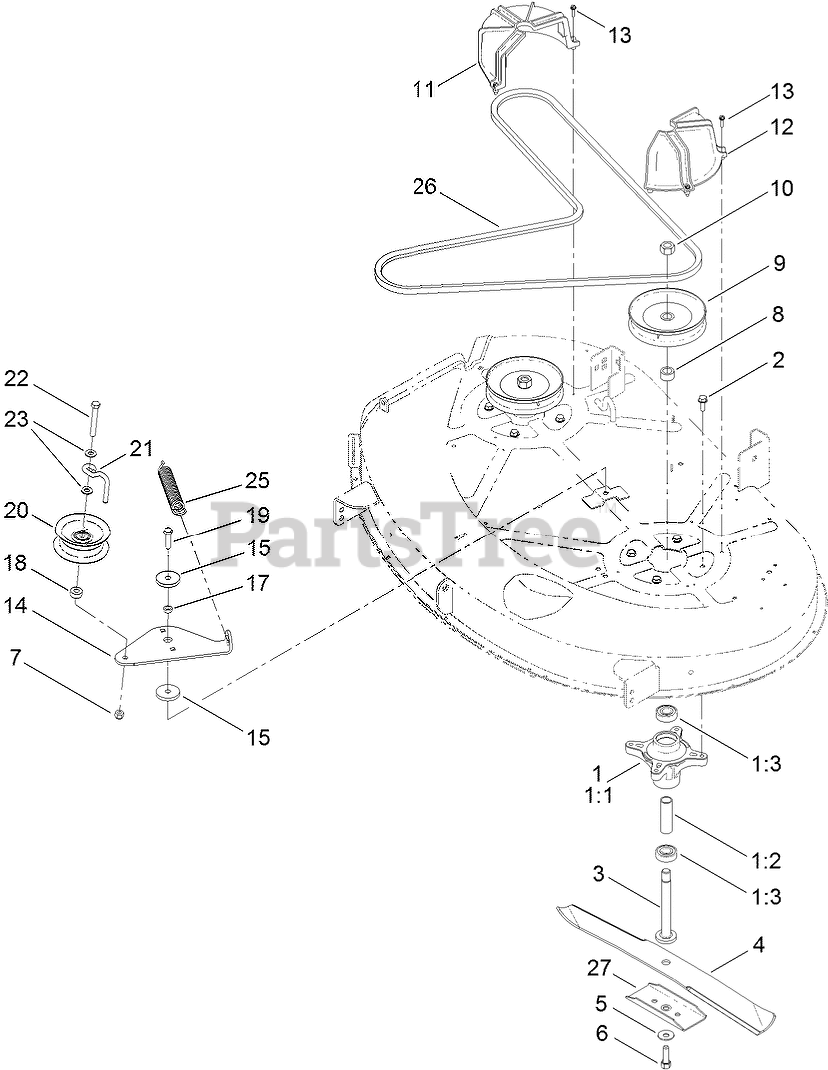

42 INCH DECK BELT AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro 117-7439

SPINDLE ASM
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

1:1

Toro 117-7267

SPINDLE
(Superseded to 139-3214)

$78.99

$

Usually ships in 3-6 days

0

1:2

Toro 117-7269

SPACER

$7.99

$

In Stock, Qty 5

0

1:3

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 18

0

2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

3

Toro 119-8229

SHAFT-SPINDLE

$32.99

$

Usually ships in 3-6 days

0

$31.99

$

In Stock, Qty 11

0

5

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

6

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

7

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 120-1113

SPACER-PULLEY

$9.49

$

Usually ships in 3-6 days

0

9

Toro 88-5330

PULLEY

$122.99

$

In Stock, only 2 left!

0

10

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

11

Toro 120-1106

GUIDE-BELT, RH

$

$

Not available

12

Toro 120-1107

GUIDE-BELT, LH

$11.99

$

Usually ships in 3-6 days

0

13

Toro 32144-53

SCREW-SHWH, THREAD FORMING

$3.99

$

In Stock, Qty 10

0

14

Toro 120-1108

ARM-IDLER

$27.99

$

Usually ships in 3-6 days

0

15

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

17

Toro 120-1112

SPACER

$9.99

$

Usually ships in 3-6 days

0

18

Toro 104-8426

SPACER

$10.99

$

In Stock, only 3 left!

0

19

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

20

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 1 left!

0

21

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 5

0

22

Toro 323-13

SCREW-HH
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 14

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

25

Toro 106-2177

SPRING-EXTENSION

$14.99

$

In Stock, only 3 left!

0

26

Toro 121-3997

BELT-V

$113.99

$

Usually ships in 3-6 days

0

27

Toro 106-2248-03

STIFFENER-BLADE

$19.99

$

In Stock, Qty 18

0
