71255 (XLS 420 T) - Toro Lawn Tractor (SN: 312000001 - 312999999) (2012) TRACTION DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

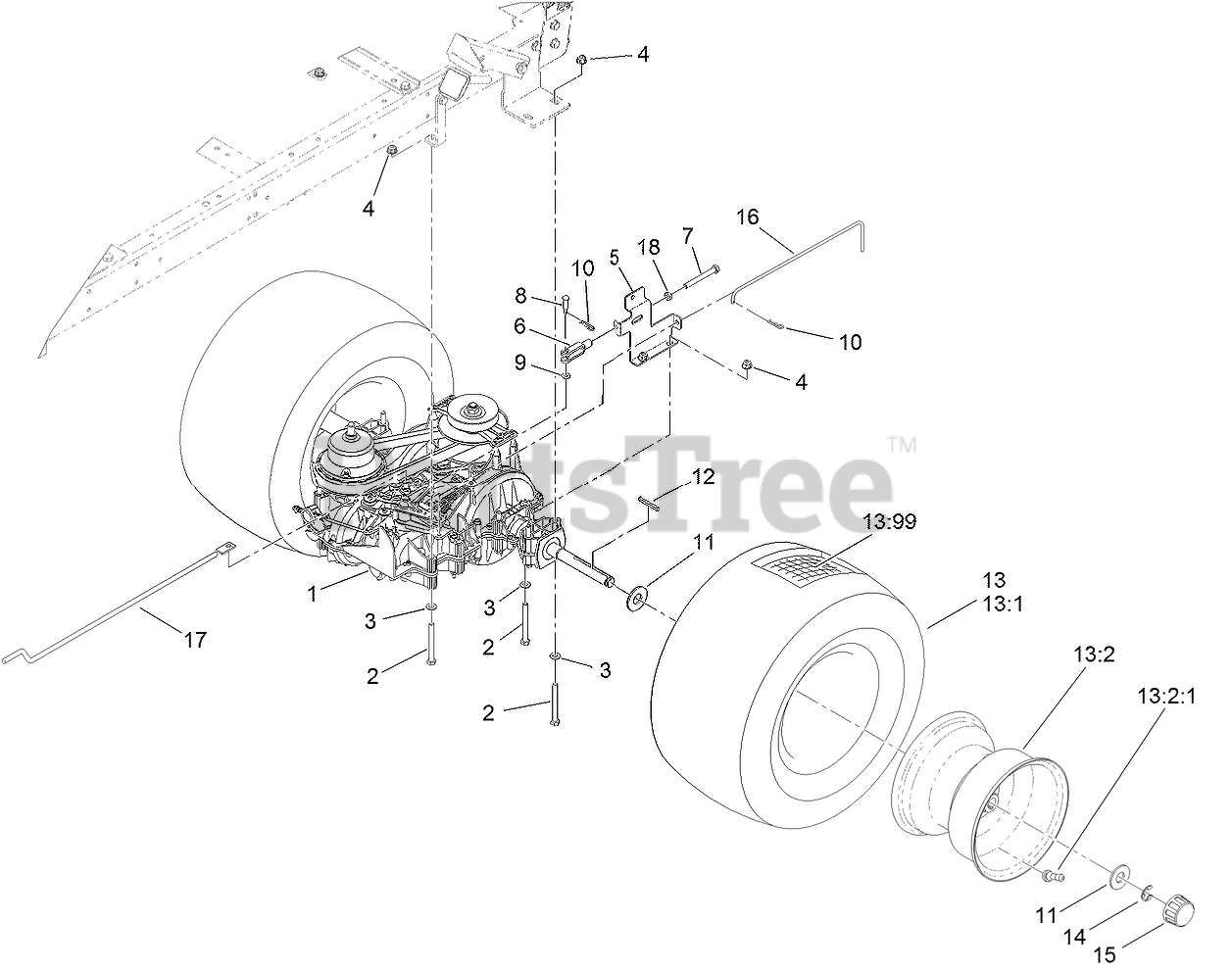

TRACTION DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 121-3956

TRANSMISSION ASM

$1267.99

$

Usually ships in 3-6 days

0

2

Toro 322-14

SCREW-HH

$2.99

$

In Stock, only 4 left!

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

5

Toro 119-8203-03

BRACKET-NEUTRAL

$34.99

$

Usually ships in 3-6 days

0

6

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 1 left!

0

7

Toro 120-1177

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

8

Toro 120-1170

PIN

$

$

Not available

9

Toro 145492

WASHER-FLAT

$1.49

$

Usually ships in 3-6 days

0

10

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

11

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

12

Toro 7-0036

KEY-SQUARE

$

$

Not available

13

Toro 99-2995

REAR WHEEL AND TIRE ASM

$495.99

$

Usually ships in 3-6 days

0

13:1

Toro 99-2996

TIRE
(Superseded to 120-6451)

$154.99

$

In Stock, only 1 left!

0

13:2

Toro 88-4390

RIM

$215.99

$

Usually ships in 3-6 days

0

13:2:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

13:99

Toro 232-41

Tube
(Superseded to 232-37)

$33.99

$

In Stock, only 1 left!

0

14

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 14

0

15

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 6

0

16

Toro 119-1281

ROD-BYPASS

$12.99

$

Usually ships in 3-6 days

0

17

Toro 119-1288

ROD-CONTROL, MOTION

$

$

Not available

18

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0
