71255 (XLS 420 T) - Toro Lawn Tractor (SN: 312000001 - 312999999) (2012) HOOD AND GRILL ASSEMBLY Parts Diagram

Lawn Tractor

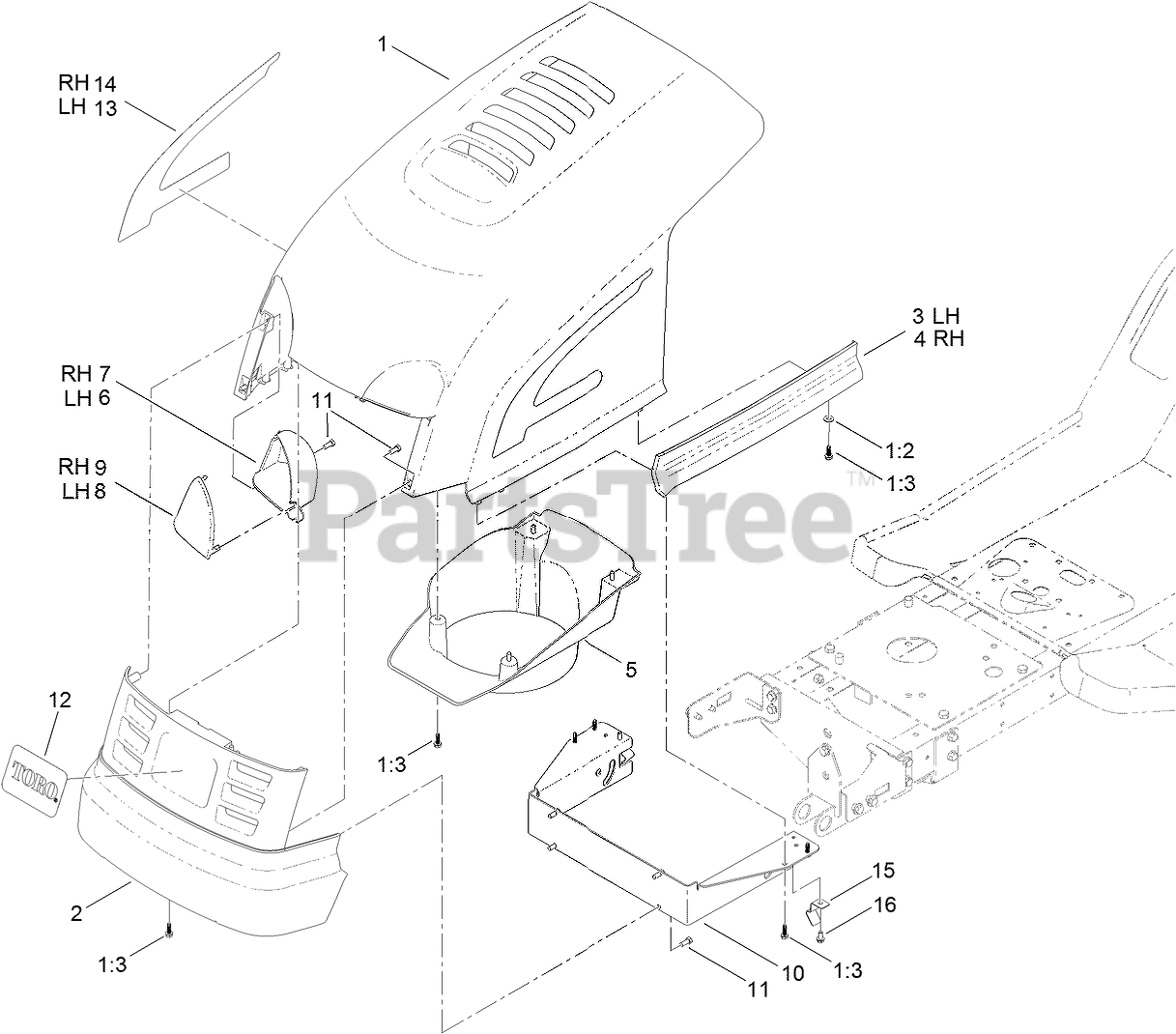

HOOD AND GRILL ASSEMBLY Parts Diagram

  • Title

1

Toro 121-4011

HOOD KIT

$557.99

$

Usually ships in 3-6 days

0

1:2

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

1:3

Toro 121-3998

SCREW-SELF TAPPING

$0.99

$

Usually ships in 3-6 days

0

2

Toro 119-3074

GRILL

$

$

Not available

3

Toro 119-3083

TRIM-HOOD, LH

$20.99

$

Usually ships in 3-6 days

0

4

Toro 119-3084

TRIM-HOOD, RH

$20.99

$

Usually ships in 3-6 days

0

5

Toro 119-8249

DUCT-AIR, HOOD

$34.99

$

Usually ships in 3-6 days

0

6

Toro 119-3076

REFLECTOR-LH

$93.99

$

Usually ships in 3-6 days

0

7

Toro 119-3077

REFLECTOR-RH

$93.99

$

Usually ships in 3-6 days

0

8

Toro 119-3078

LENS-LH
(Superseded to 121-4008)

$8.99

$

Usually ships in 3-6 days

0

9

Toro 119-3079

LENS-RH
(Superseded to 121-4009)

$8.99

$

Usually ships in 3-6 days

0

10

Toro 120-8708-03

BRACKET-MOUNTING, HOOD

$91.99

$

Usually ships in 3-6 days

0

11

Toro 46-8090

SCREW-PLASTITE

$

$

Not available

12

Toro 120-1141

DECAL

$5.99

$

Usually ships in 3-6 days

0

13

Toro 120-1125

DECAL-HOOD, LEFT

$38.99

$

Usually ships in 3-6 days

0

14

Toro 120-1126

DECAL-HOOD, RIGHT

$38.99

$

Usually ships in 3-6 days

0

15

Toro 120-8706

LATCH-HOOD

$

$

Not available

16

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0
