71255 (XLS 420 T) - Toro Lawn Tractor (SN: 312000001 - 312999999) (2012) FRAME ASSEMBLY Parts Diagram

Lawn Tractor

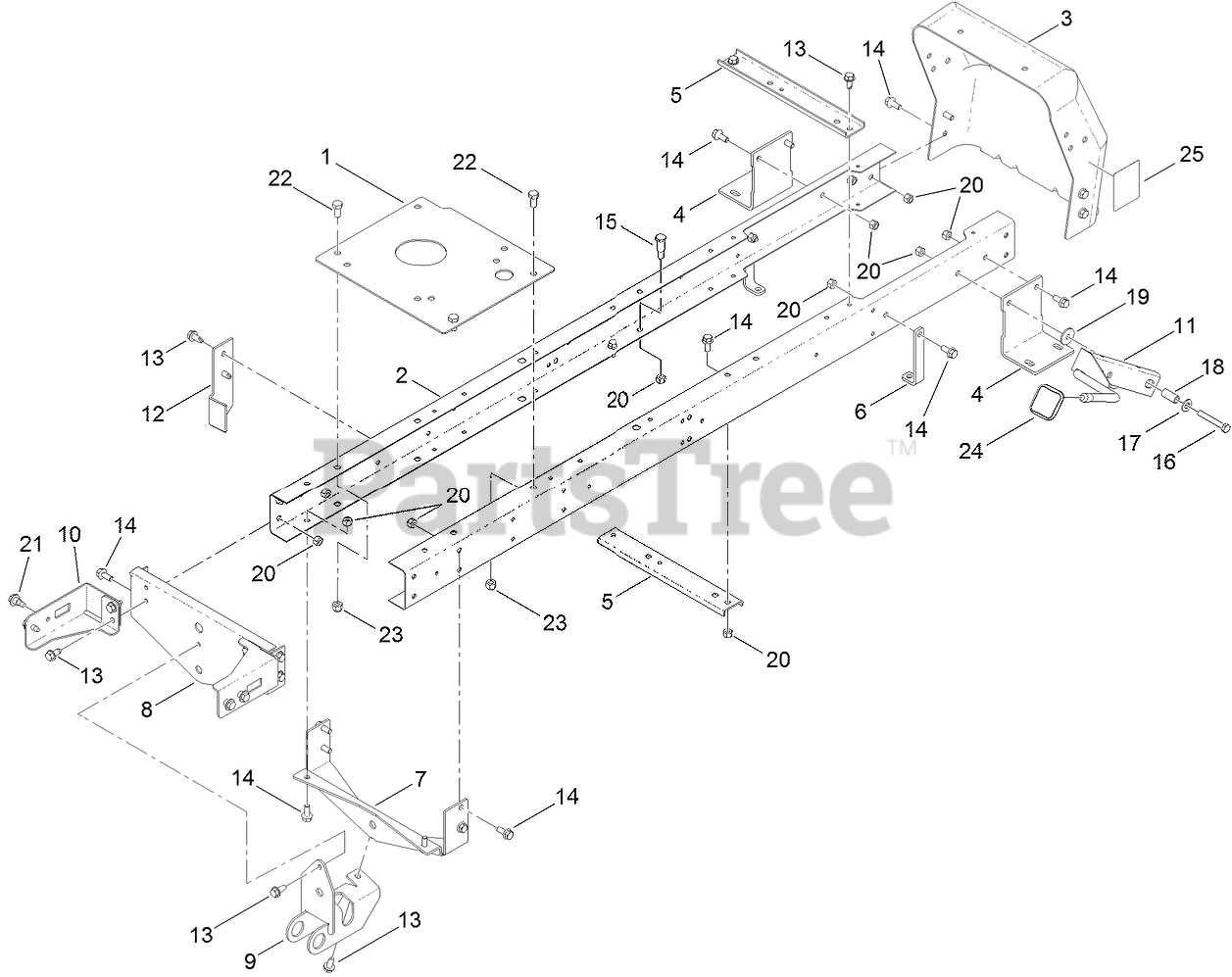

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 119-8206-03

PLATE-MOUNTING, ENGINE

$49.99

$

Usually ships in 3-6 days

0

2

Toro 121-3959-03

RAIL-FRAME

$

$

Not available

3

Toro 99-2957-03

SUPPORT-SEAT/REAR HITCH

$183.99

$

Usually ships in 3-6 days

0

4

Toro 119-1279-03

AXLE-BRACKET

$

$

Not available

5

Toro 119-8216-03

BRACE-IDLER

$27.99

$

Usually ships in 3-6 days

0

6

Toro 119-1280-03

STRAP-TORQUE

$23.99

$

Usually ships in 3-6 days

0

7

Toro 119-1291-03

SUPPORT-AXLE, FRONT REAR

$

$

Not available

8

Toro 119-1290-03

SUPPORT-AXLE, FRONT

$71.99

$

Usually ships in 3-6 days

0

9

Toro 119-8200-03

BRACKET-PIVOT, DECK

$

$

Not available

10

Toro 120-8709-03

BRACKET-HOOD

$

$

Not available

11

Toro 120-1134-03

LEVER-HOC

$50.99

$

Usually ships in 3-6 days

0

12

Toro 117-7788-03

STOP-CLUTCH

$31.99

$

Usually ships in 3-6 days

0

13

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

14

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 19

0

15

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

16

Toro 322-32

SCREW-HH

$4.99

$

Usually ships in 3-6 days

0

17

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

18

Toro 65-7210

SPACER

$3.99

$

Usually ships in 3-6 days

0

19

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

21

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 5

0

22

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

23

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

24

Toro 94-5565

KNOB-SHIFT

$16.99

$

In Stock, only 1 left!

0

25

Toro 100-7449

DECAL-VALVE, DUMP

$

$

Not available
