71255 (XLS 420 T) - Toro Lawn Tractor (SN: 312000001 - 312999999) (2012) 42 INCH DECK DEFLECTOR AND HANGER ASSEMBLY Parts Diagram

Lawn Tractor

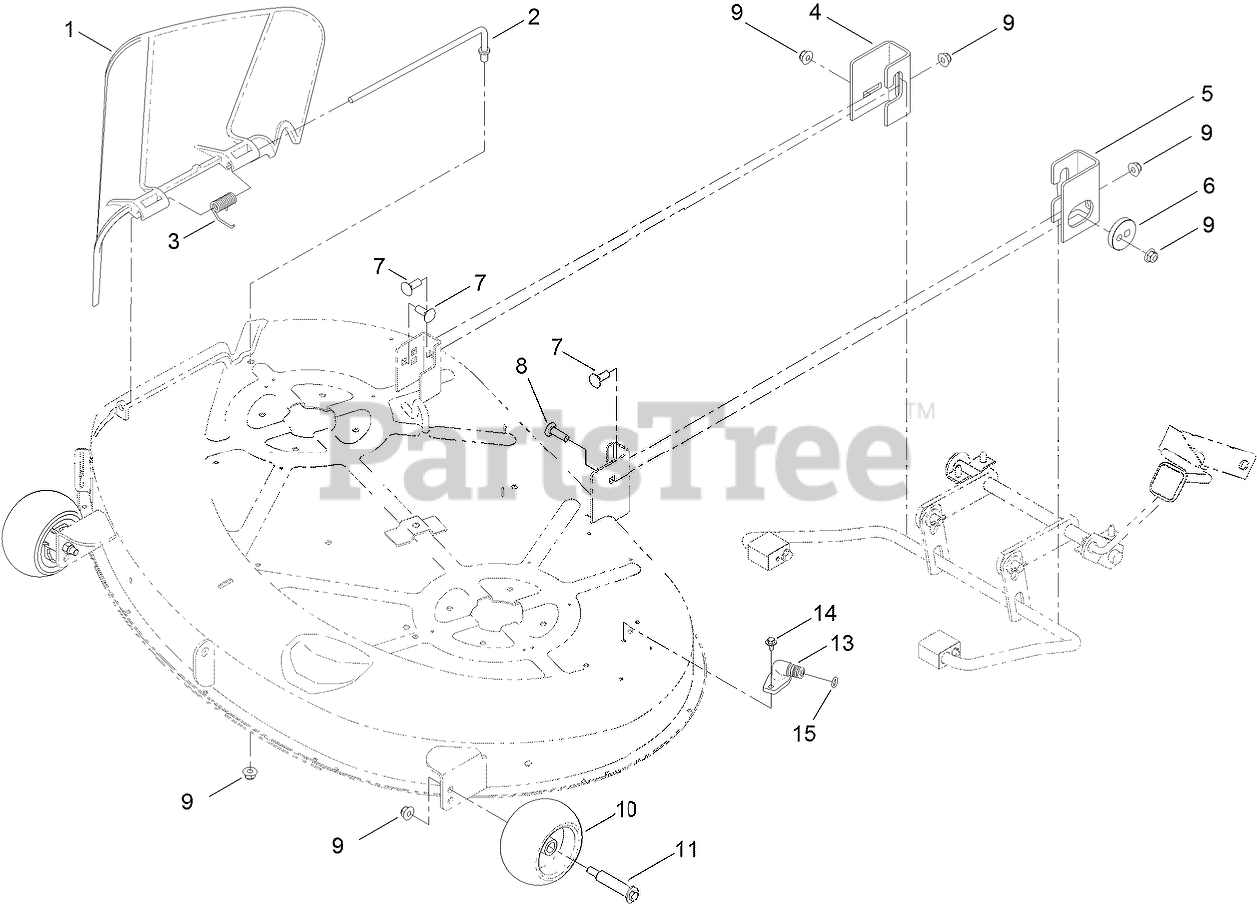

42 INCH DECK DEFLECTOR AND HANGER ASSEMBLY Parts Diagram

  • Title

1

Toro 112-3951

DEFLECTOR

$62.99

$

In Stock, Qty 20+

0

2

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

3

Toro 110-6694

SPRING-TORSION

$6.49

$

In Stock, Qty 7

0

4

Toro 108-7836

BRACKET-HANGER, RIGHT REAR

$24.99

$

In Stock, Qty 5

0

5

Toro 108-7838

BRACKET-HANGER, LEFT REAR

$24.99

$

In Stock, only 1 left!

0

6

Toro 112-3980

ECCENTRIC

$7.99

$

In Stock, Qty 6

0

7

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

8

Toro 3231-28

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

9

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Toro 1-603299

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 10

0

11

Toro 112-3977

BOLT-SHOULDER

$11.99

$

In Stock, Qty 12

0

13

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 5

0

14

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, only 4 left!

0

15

Toro 46-6290

O-RING

$2.99

$

In Stock, only 4 left!

0
