71255 (XLS 420 T) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) TOWER ASSEMBLY Parts Diagram

Lawn Tractor

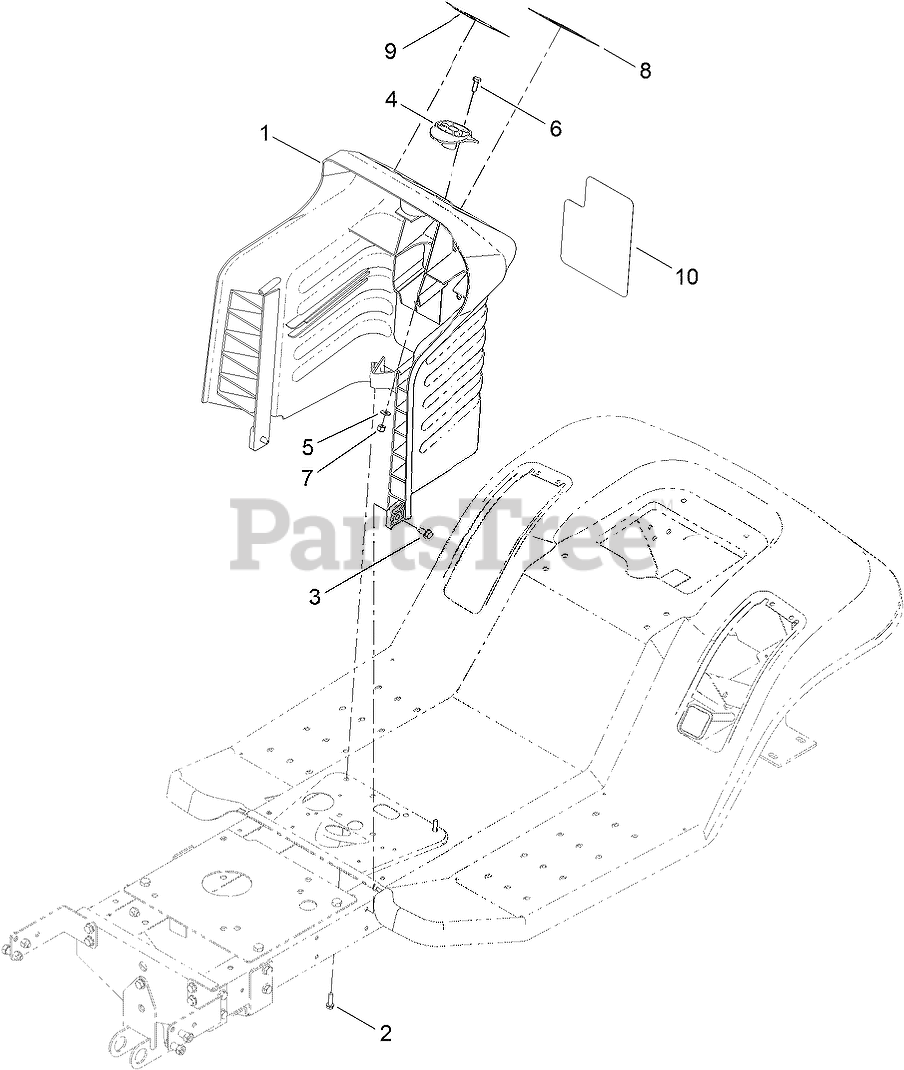

TOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 120-1169

TOWER-STEERING

$

$

Not available

2

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

3

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

4

Toro 88-4190

BUSHING-SLIDING

$18.99

$

In Stock, only 1 left!

0

5

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

7

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

8

Toro 120-1137

DECAL-THROTTLE

$

$

Not available

9

Toro 120-1138

DECAL-IGNITION/LIGHTS

$

$

Not available

10

Toro 120-1122

DECAL-WARNING, INSTRUCTION

$25.99

$

Usually ships in 3-6 days

0
