71255 (XLS 420 T) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) MOTION CONTROL AND BELT ASSEMBLY Parts Diagram

Lawn Tractor

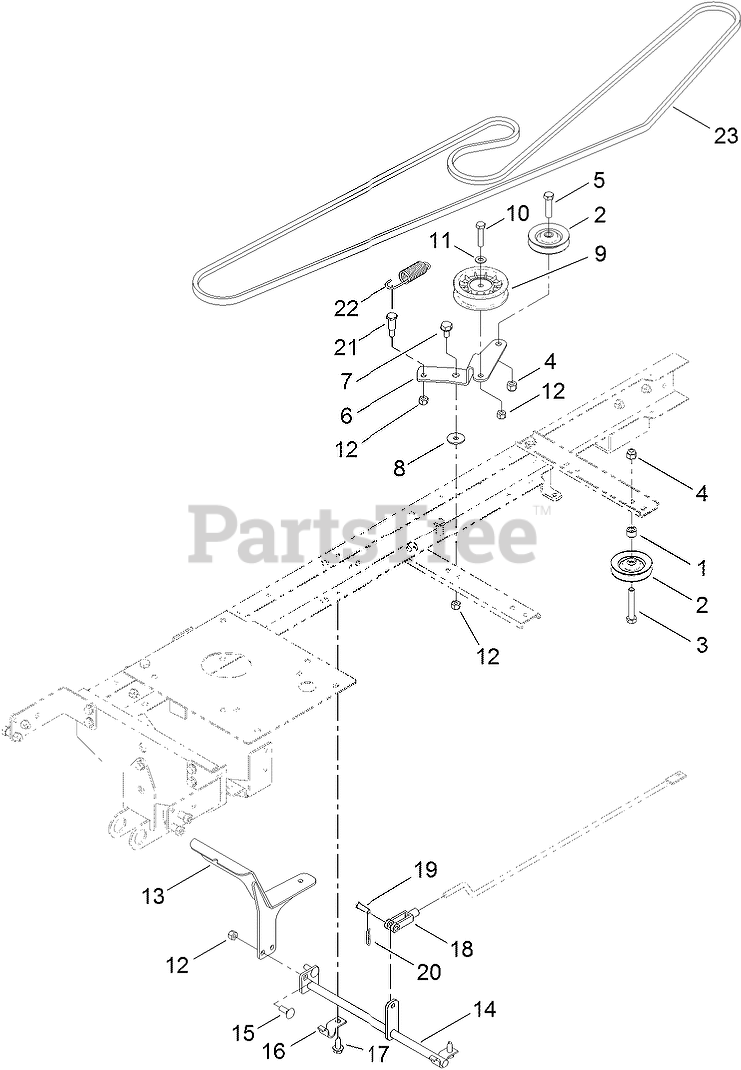

MOTION CONTROL AND BELT ASSEMBLY Parts Diagram

  • Title

1

Toro 1-413088

BUSHING-LEVER, LIFT

$10.99

$

In Stock, only 1 left!

0

2

Toro 93-0320

PULLEY-IDLER

$19.99

$

In Stock, only 4 left!

0

3

Toro 323-11

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

4

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

5

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

6

Toro 119-1284

BRACKET-IDLER
(Superseded to 121-4048)

$20.99

$

Usually ships in 3-6 days

0

7

Toro 37-8771

BOLT-SHOULDER

$5.49

$

In Stock, only 3 left!

0

8

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 9

0

9

Toro 110-6775

PULLEY-IDLER

$35.99

$

In Stock, Qty 7

0

10

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 119-3064-03

PEDAL-CONTROL, MOTION

$50.99

$

Usually ships in 3-6 days

0

14

Toro 119-1293-03

ARM-CONTROL, MOTION
(Superseded to 120-8795)

$47.99

$

Usually ships in 3-6 days

0

15

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

16

Toro 88-4810

CLAMP-PIVOT, SHIFT

$3.49

$

Usually ships in 3-6 days

0

17

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

18

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, only 2 left!

0

19

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, only 3 left!

0

20

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

21

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

22

Toro 92-7149

SPRING-EXTENSION

$71.99

$

Usually ships in 3-6 days

0

23

Toro 1-603045

BELT-DRIVE, BLADE
(Superseded to 1-603045-SL)

$90.99

$

Usually ships in 3-6 days

0
