71255 (XLS 420 T) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) FRONT WHEEL AND AXLE ASSEMBLY Parts Diagram

Lawn Tractor

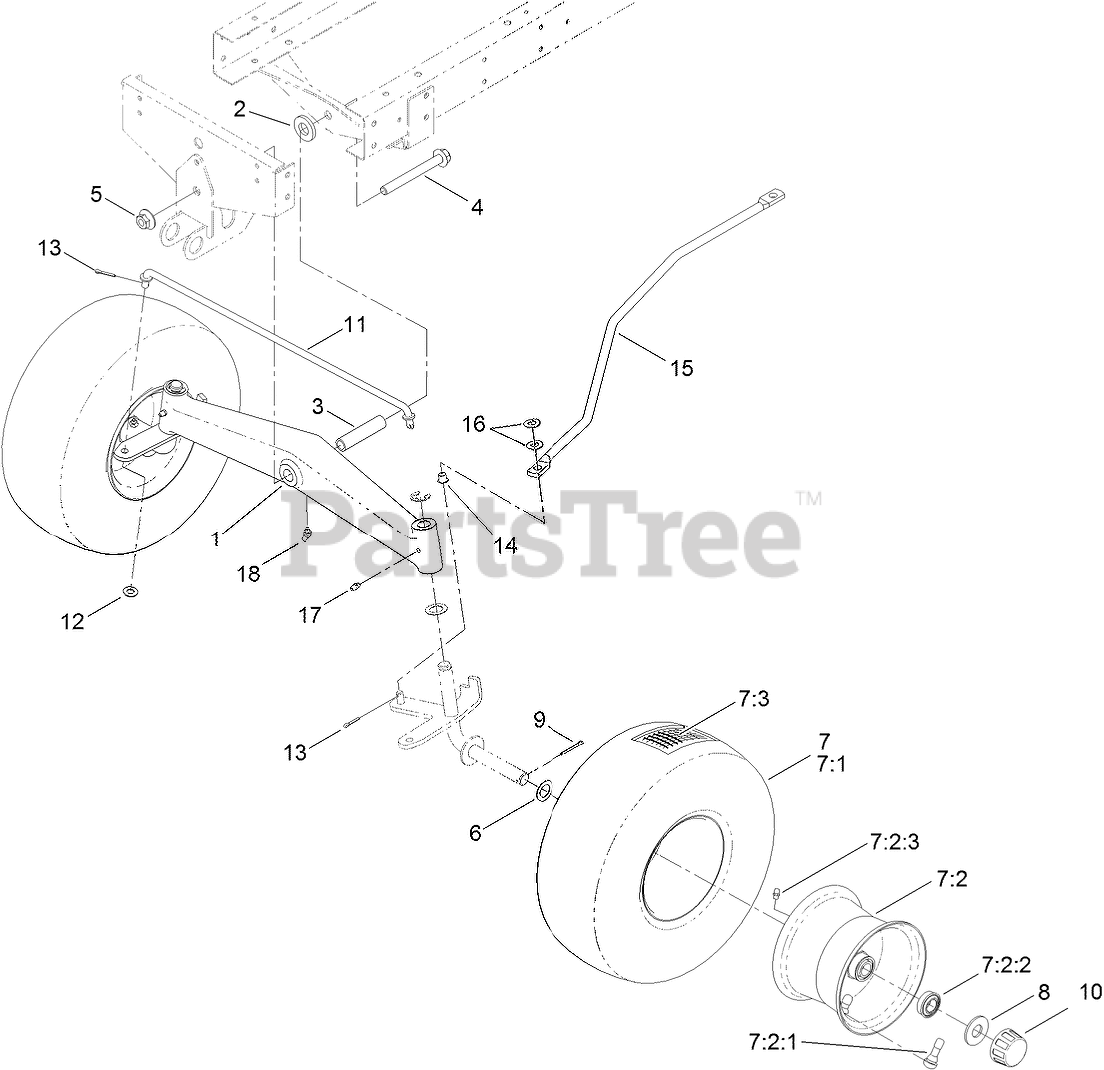

FRONT WHEEL AND AXLE ASSEMBLY Parts Diagram

  • Title

1

FRONT AXLE ASM

Note: Not serviced separately

$

$

Not available

1

FRONT AXLE ASM

Note: See following pages

$

$

Not available

2

Toro 119-8207

BUSHING-FRONT, AXLE

$4.49

$

Usually ships in 3-6 days

0

3

Toro 119-8222

TUBE-FRONT, AXLE

$14.99

$

Usually ships in 3-6 days

0

4

Toro 117-3176

SCREW-HHF

$4.99

$

Usually ships in 3-6 days

0

5

Toro 32128-56

NUT-HF

$10.99

$

Usually ships in 3-6 days

0

6

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 15

0

7

Toro 99-6831

WHEEL AND TIRE ASM

$

$

Not available

7:1

Toro 99-2988

TIRE

$130.99

$

In Stock, only 1 left!

0

7:2

Toro 99-6829

RIM

$316.99

$

Usually ships in 3-6 days

0

7:2:1

Toro 232-27

STEM-VALVE
(Superseded to 5108)

$6.99

$

In Stock, Qty 16

0

7:2:2

Toro 110513

BEARING-WHEEL

$21.99

$

In Stock, only 3 left!

0

7:2:3

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

7:3

Toro 232-39

TUBE-INNER

$31.99

$

In Stock, only 1 left!

0

8

Toro 28-2480

WASHER-PLAIN

$4.99

$

In Stock, Qty 6

0

9

Toro 3272-12

PIN-COTTER

$0.99

$

In Stock, Qty 17

0

10

Toro 61-9780

CAP-HUB

$7.99

$

In Stock, Qty 20+

0

11

Toro 119-3055

TIE ROD-STEERING

$

$

Not available

12

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

13

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

14

Toro 52-2891

BUSHING-FLANGED, NYLON

$3.49

$

In Stock, Qty 16

0

15

Toro 119-3058

LINK-DRAG

$71.99

$

Usually ships in 3-6 days

0

16

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 10

0

17

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

18

Toro 302-11

FITTING-LUBE, 45 DEG

$1.99

$

In Stock, only 2 left!

0
