71254 (XLS 380) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) GAS TANK AND THROTTLE CONTROL ASSEMBLY Parts Diagram

Lawn Tractor

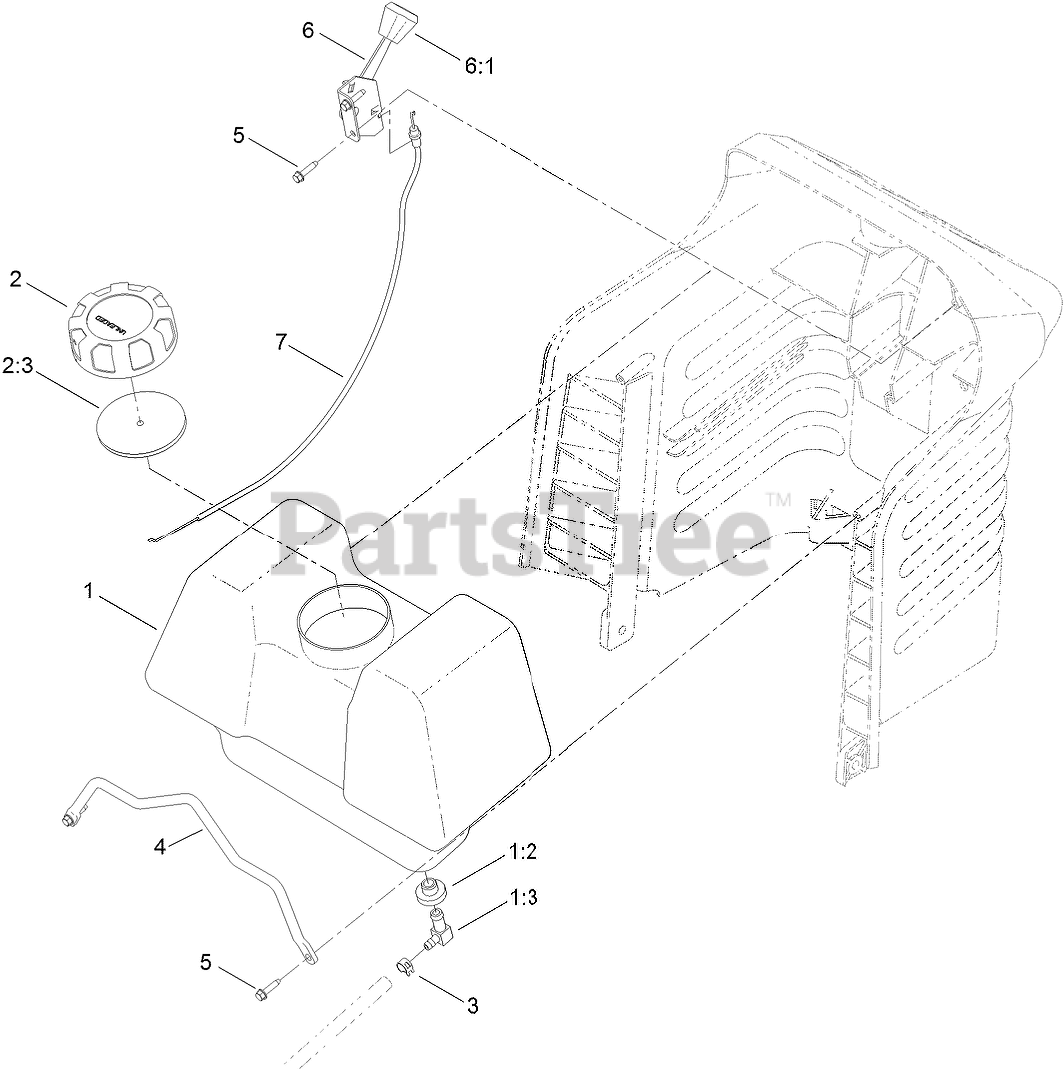

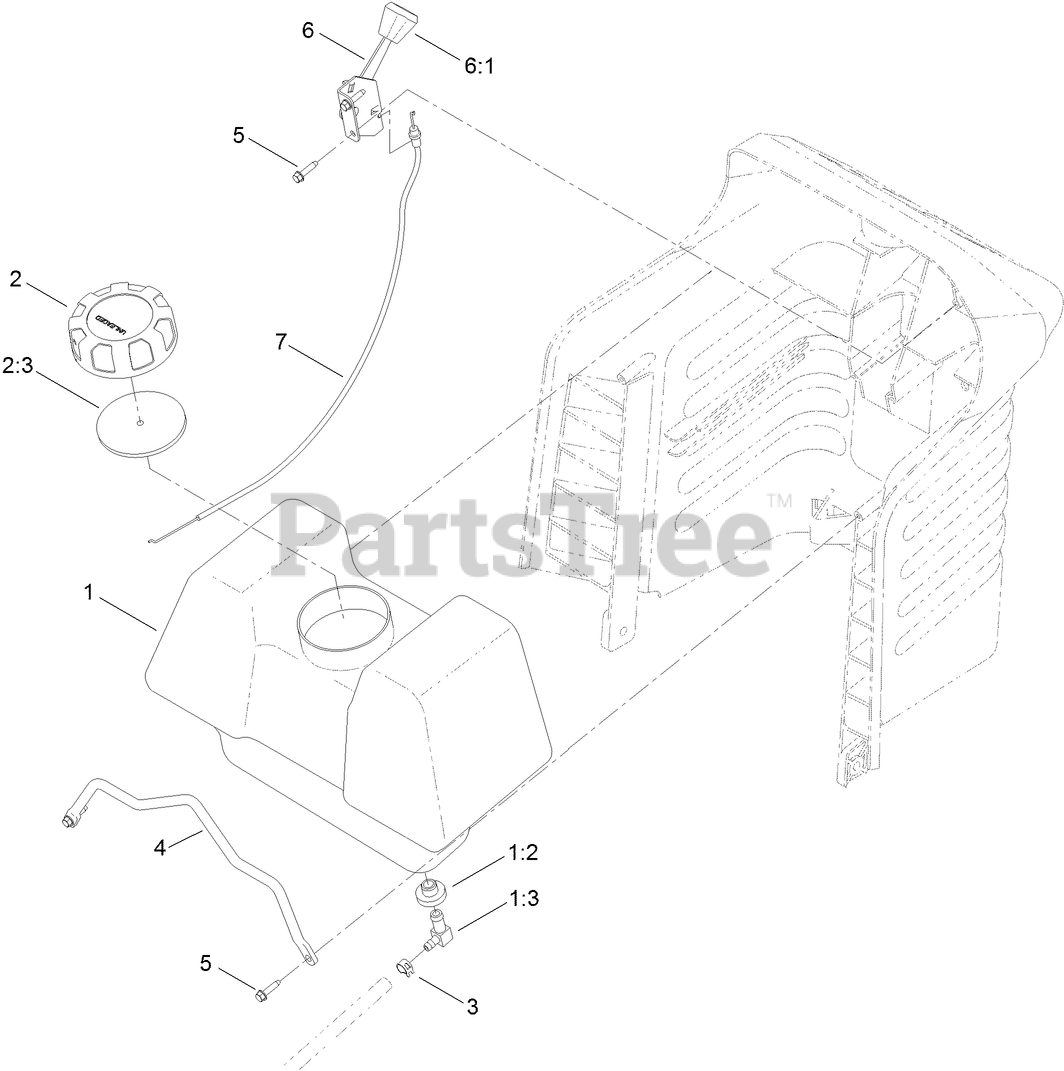

GAS TANK AND THROTTLE CONTROL ASSEMBLY Parts Diagram

  • Title
1

Toro 88-3880

GAS TANK ASM

$224.99

$

In Stock, only 1 left!

0

1:2

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 12

0

1:3

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

2

Toro 88-3980

GAS CAP ASM

$33.99

$

In Stock, Qty 6

0

2:3

Toro 88-4010

GASKET-CAP, GAS

$34.99

$

In Stock, only 1 left!

0

3

Toro 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

4

Toro 125-3264

ROD-TANK, GAS

$

$

Not available

5

Toro 27-0220

SCREW-SPECIAL

$7.99

$

In Stock, only 4 left!

0

6

Toro 88-4340

THROTTLE CONTROL ASM

$42.99

$

Usually ships in 3-6 days

0

6:1

$5.99

$

In Stock, only 2 left!

0

7

Toro 119-8226

CABLE-THROTTLE

$18.99

$

Usually ships in 3-6 days

0
