71254 (XLS 380) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) ELECTRICAL ASSEMBLY Parts Diagram

Lawn Tractor

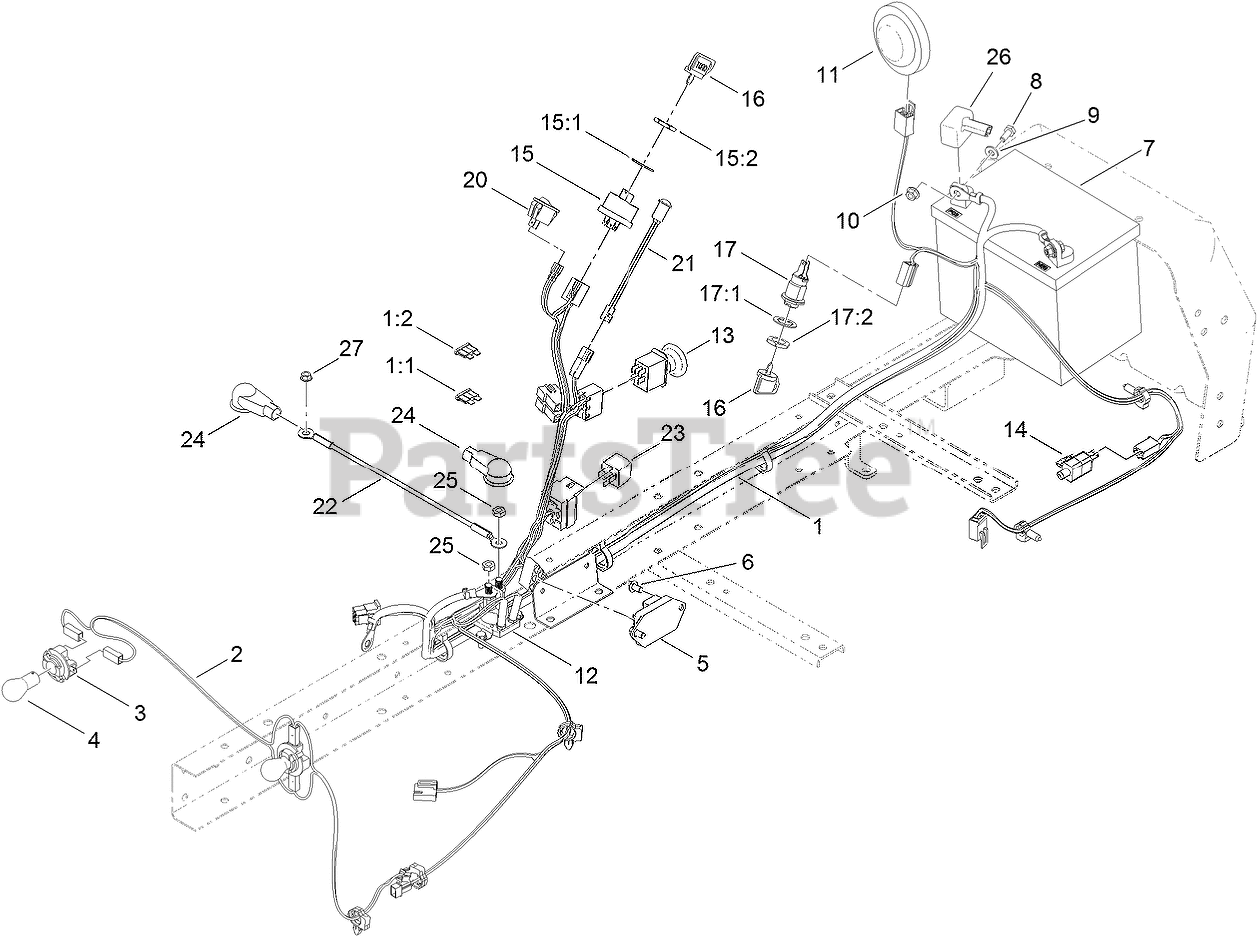

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 119-3097

HARNESS-WIRE

$378.99

$

Usually ships in 3-6 days

0

1:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.49

$

In Stock, Qty 6

0

1:2

Toro 109102

FUSE-BLADE, 25 AMP

$5.49

$

In Stock, Qty 9

0

2

Toro 119-8217

HARNESS-HEADLIGHT

$41.99

$

Usually ships in 3-6 days

0

3

Toro 116262

SOCKET-HEADLIGHT

$47.99

$

Usually ships in 3-6 days

0

4

Toro 7228

BULB

$23.99

$

Usually ships in 3-6 days

0

5

Toro 99-3701

MODULE-CLUTCH

$126.99

$

Usually ships in 3-6 days

0

6

Toro 9266714

SCREW-HWH

$1.49

$

In Stock, Qty 5

0

7

Toro 105-1692

BATTERY

$

$

Not available

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

11

Toro 100-3524

SWITCH-SEAT

$60.99

$

In Stock, only 4 left!

0

12

Toro 117-1197

SOLENOID

$45.99

$

In Stock, Qty 20+

0

13

Toro 93-9998

SWITCH-PTO

$44.99

$

In Stock, only 1 left!

0

14

Toro 110-6765

SWITCH

$13.99

$

In Stock, Qty 8

0

15

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 12

0

15:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

15:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

16

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

17

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

17:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

17:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

20

Toro 92-8875

SWITCH-ROCKER

$17.99

$

In Stock, only 1 left!

0

21

Toro 95-7652

LIGHT-INDICATOR

$47.99

$

Usually ships in 3-6 days

0

22

Toro 28-3891

WIRE-SOLENOID/STARTER

$27.99

$

Usually ships in 3-6 days

0

23

Toro 98-7249

RELAY

$22.99

$

In Stock, only 2 left!

0

24

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$6.99

$

Usually ships in 3-6 days

0

25

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

26

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

27

Toro 33003-00

NUT-HF

$0.99

$

Usually ships in 3-6 days

0
