71254 (XLS 380) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) CYLINDER HEAD AND FLYWHEEL ASSEMBLY Parts Diagram

Lawn Tractor

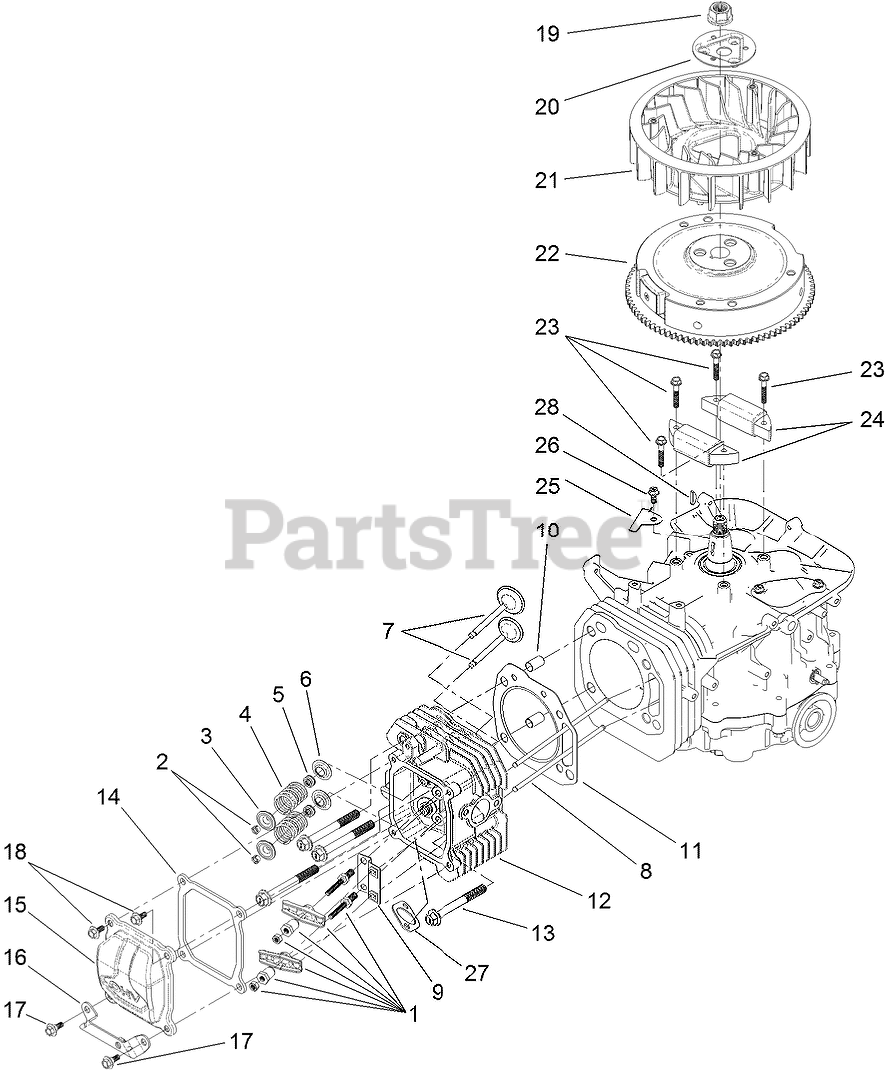

CYLINDER HEAD AND FLYWHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 120-4301

ROCKER ARM KIT
(Superseded to 136-7885)

$17.99

$

In Stock, only 1 left!

0

2

Toro 120-4307

KEEPER-VALVE

$8.49

$

In Stock, only 3 left!

0

3

Toro 120-4306

RETAINER-SPRING, VALVE

$11.99

$

In Stock, only 1 left!

0

4

Toro 120-4305

SPRING-VALVE

$6.49

$

In Stock, only 4 left!

0

5

Toro 120-4304

SEAL-STEM, VALVE

$18.99

$

Usually ships in 3-6 days

0

6

Toro 120-4303

SEAT-SPRING, VALVE

$7.99

$

In Stock, Qty 8

0

7

Toro 120-4302

VALVE SET

$34.99

$

Usually ships in 3-6 days

0

8

Toro 120-4340

ROD-PUSH

$6.49

$

In Stock, only 2 left!

0

9

Toro 120-4300

PLATE-GUIDE, PUSH ROD

$5.49

$

In Stock, only 1 left!

0

10

Toro 120-4200

PIN-DOWEL

$2.99

$

Usually ships in 3-6 days

0

11

Toro 120-4201

GASKET-CYCLINDER

$14.99

$

In Stock, only 1 left!

0

12

Toro 120-4203

HEAD-CYLINDER

$167.99

$

In Stock, only 3 left!

0

13

Toro 120-4205

SCREW-HHF

$11.99

$

Usually ships in 3-6 days

0

14

Toro 120-4206

GASKET-COVER, VALVE

$9.49

$

In Stock, Qty 6

0

15

Toro 120-4207

COVER-VALVE

$17.99

$

In Stock, only 1 left!

0

16

Toro 120-4345

BRACKET-MUFFLER

$14.99

$

Usually ships in 3-6 days

0

17

Toro 120-4210

SCREW-SHOULDER, HHF

$6.49

$

In Stock, only 2 left!

0

18

Toro 120-4209

SCREW-SHOULDER, HHF

$6.49

$

In Stock, only 1 left!

0

19

Toro 120-4213

NUT-FLANGE

$5.49

$

In Stock, only 1 left!

0

20

Toro 120-4212

PULLEY-STARTER

$11.99

$

In Stock, only 1 left!

0

21

Toro 120-4211

FAN-COOLING

$34.99

$

In Stock, only 1 left!

0

22

Toro 120-4399

FLYWHEEL

$183.99

$

Usually ships in 3-6 days

0

23

Toro 120-4223

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

24

Toro 120-4222

COIL-CHARGE

$60.99

$

Usually ships in 3-6 days

0

25

Toro 120-4268

RETAINER

$2.99

$

Usually ships in 3-6 days

0

26

Toro 120-4234

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

27

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, only 3 left!

0

28

Toro 120-4320

KEY-WOODRUFF

$2.99

$

Usually ships in 3-6 days

0
