71254 (XLS 380) - Toro Lawn Tractor (SN: 313000001 - 313999999) (2013) CARBURETOR, STARTER AND FAN SHROUD ASSEMBLY Parts Diagram

Lawn Tractor

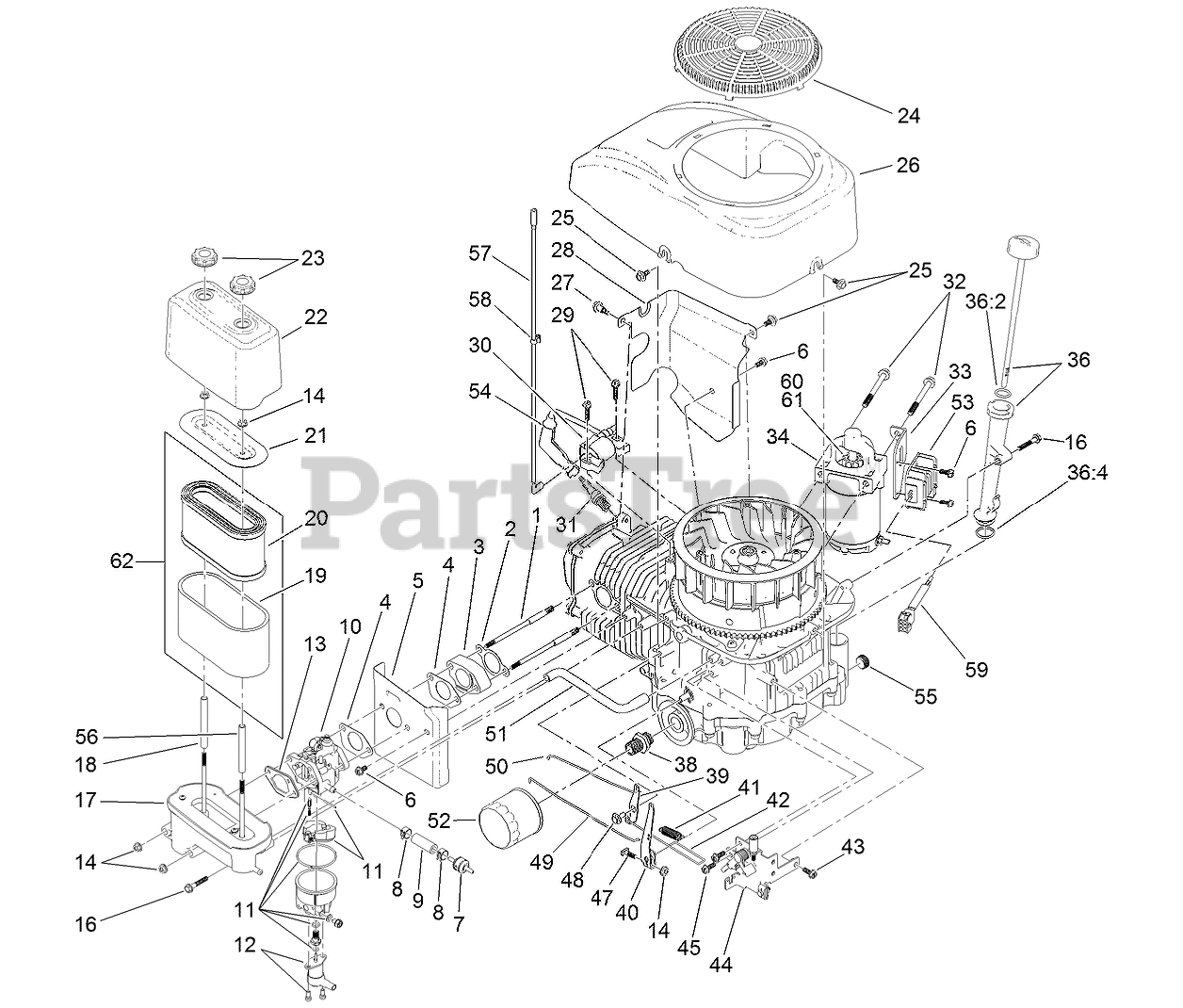

CARBURETOR, STARTER AND FAN SHROUD ASSEMBLY Parts Diagram

  • Title
1

Toro 120-4202

STUD-MOUNT, CARBURETOR

$7.99

$

In Stock, only 1 left!

0

2

Toro 120-4250

GASKET-CARBURETOR

$2.99

$

In Stock, Qty 8

0

3

Toro 120-4249

INSULATOR-CARBURETOR

$6.99

$

Usually ships in 3-6 days

0

4

Toro 120-4247

GASKET-CARBURETOR

$2.99

$

In Stock, Qty 8

0

5

Toro 120-4248

SHIELD-HEAT

$18.99

$

Usually ships in 3-6 days

0

6

Toro 120-4216

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

7

Toro 120-4253

FILTER-FUEL
(Superseded to 139-0717)

$12.99

$

In Stock, Qty 20+

0

8

Toro 120-4251

CLAMP-FUEL LINE
(Superseded to 139-0719)

$5.49

$

Usually ships in 3-6 days

0

9

Toro 120-4252

LINE-FUEL

$8.49

$

Usually ships in 3-6 days

0

10

Toro 120-4434

CARBURETOR KIT

$143.99

$

Usually ships in 3-6 days

0

11

Toro 120-4364

CARBURETOR REPAIR KIT

$28.99

$

Usually ships in 3-6 days

0

12

Toro 120-4437

SOLENOID KIT
(Superseded to 127-9030)

$41.99

$

Usually ships in 3-6 days

0

13

Toro 120-4323

GASKET-BASE, FILTER

$6.49

$

In Stock, only 1 left!

0

14

Toro 120-4236

NUT-FLANGE

$1.49

$

In Stock, Qty 20+

0

16

Toro 120-4284

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

17

Toro 120-4325

BASE-FILTER, AIR
(Superseded to 127-9348)

$29.99

$

In Stock, only 1 left!

0

18

Toro 120-4333

SPACER-FILTER, AIR
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

19

Toro 120-4309

PREFILTER
(Superseded to 136-7807)

$8.49

$

In Stock, only 4 left!

0

20

Toro 120-4308

FILTER-AIR
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

21

Toro 120-4310

RETAINER-AIR FILTER

$

$

Not available

22

Toro 120-4311

COVER-FILTER, AIR

$17.99

$

In Stock, only 1 left!

0

23

Toro 120-4312

NUT-SPEED

$6.49

$

In Stock, only 1 left!

0

24

Toro 120-4219

SCREEN-STATIONARY

$11.99

$

In Stock, only 1 left!

0

25

Toro 120-4217

SCREW-SHOULDER, HH

$7.99

$

In Stock, only 3 left!

0

26

Toro 120-4218

SHROUD-FAN

$67.99

$

Usually ships in 3-6 days

0

27

Toro 120-4214

SCREW-SHOULDER, HH

$2.99

$

Usually ships in 3-6 days

0

28

Toro 120-4215

SHIELD

$21.99

$

Usually ships in 3-6 days

0

29

Toro 120-4225

SCREW-HHF

$1.99

$

In Stock, Qty 18

0

30

Toro 120-4228

COIL-IGNITION

$73.99

$

Usually ships in 3-6 days

0

31

Toro 77-7330

PLUG-SPARK

$3.49

$

In Stock, Qty 20+

0

32

Toro 120-4231

SCREW-HHF

$5.49

$

Usually ships in 3-6 days

0

33

Toro 120-4230

BRACKET-STARTER

$15.99

$

Usually ships in 3-6 days

0

34

Toro 120-4339

STARTER-ELECTRIC
(Superseded to 136-7832)

$299.99

$

In Stock, Qty 10

0

36

Toro 120-4281

DIPSTICK AND TUBE ASM (W/O-RING)

$

$

Not available

36:2

Toro 120-4348

O-RING

$2.99

$

In Stock, only 1 left!

0

36:4

Toro 120-4282

O-RING

$2.99

$

In Stock, only 1 left!

0

38

Toro 120-4346

ADAPTOR-FILTER, OIL
(Superseded to 136-7884)

$12.99

$

In Stock, only 1 left!

0

39

Toro 120-4242

BELLCRANK-CHOKE

$9.49

$

Usually ships in 3-6 days

0

40

Toro 120-4347

Arm-Governor

$11.99

$

Usually ships in 3-6 days

0

41

Toro 120-4235

SPRING-GOVERNOR

$2.49

$

Usually ships in 3-6 days

0

42

Toro 120-4243

ROD-THROTTLE

$1.49

$

In Stock, Qty 6

0

43

Toro 120-4232

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

44

Toro 120-4358

CONTROL-THROTTLE

$26.99

$

Usually ships in 3-6 days

0

45

Toro 120-4234

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

47

Toro 120-4238

BOLT-ARM, GOVERNOR

$1.49

$

In Stock, only 4 left!

0

48

Toro 120-4241

SCREW-SHOULDER, HHF

$5.49

$

In Stock, only 1 left!

0

49

Toro 120-4239

ROD-GOVERNOR

$1.49

$

In Stock, only 4 left!

0

50

Toro 120-4240

ROD-CHOKE

$1.49

$

In Stock, only 3 left!

0

51

Toro 120-4255

TUBE-BREATHER
(Superseded to 136-7829)

$5.49

$

In Stock, only 1 left!

0

52

Toro 120-4276

FILTER-OIL
(Superseded to 126-5234)

$25.99

$

In Stock, only 4 left!

0

53

Toro 120-4220

REGULATOR-VOLTAGE

$85.99

$

Usually ships in 3-6 days

0

54

Toro 120-4226

BOOT-PLUG, SPARK

$12.99

$

Usually ships in 3-6 days

0

55

Toro 120-4285

PLUG-DRAIN

$7.99

$

Usually ships in 3-6 days

0

56

Toro 120-4334

SPACER-FILTER, AIR
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0

57

Toro 120-4221

WIRE-KILL, IGNITION

$16.99

$

Usually ships in 3-6 days

0

58

Toro 120-4316

CLAMP-WIRE

$1.49

$

Usually ships in 3-6 days

0

59

Toro 120-4227

HARNESS-WIRE

$

$

Not available

60

Toro 120-4392

STARTER REPAIR KIT

$19.99

$

In Stock, only 1 left!

0

61

Toro 120-4398

PINION
(Superseded to 133-1562)

$54.99

$

Usually ships in 3-6 days

0

62

Toro 127-9193

AIR FILTER KIT
(Superseded to 136-7809)

$25.99

$

In Stock, only 2 left!

0
