71254 (XLS 380) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

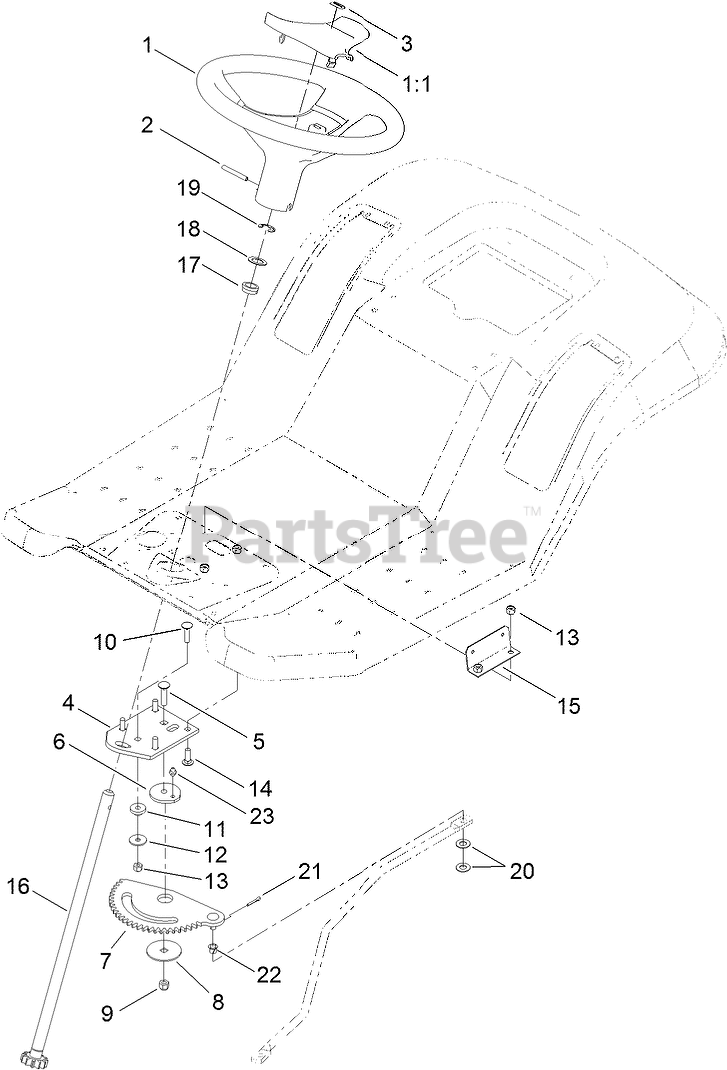

STEERING ASSEMBLY Parts Diagram

  • Title

1

Toro 98-1467

STEERING WHEEL ASM

$290.99

$

Usually ships in 3-6 days

0

1:1

Toro 98-1468

COVER-WHEEL, STEERING

$19.99

$

In Stock, only 1 left!

0

2

Toro 32121-111

PIN-ROLL

$3.49

$

In Stock, Qty 20+

0

3

Toro 98-1459

DECAL

$4.99

$

Usually ships in 3-6 days

0

4

Toro 88-5130-03

BRACKET-RACK, STEERING

$59.99

$

In Stock, only 2 left!

0

5

Toro 3231-4

SCREW-CARR

$4.49

$

In Stock, Qty 20+

0

6

Toro 88-4670

BUSHING-ECCENTRIC

$25.99

$

In Stock, only 2 left!

0

7

Toro 88-5200

RACK-STEERING

$98.99

$

In Stock, only 4 left!

0

8

Toro 111419

WASHER-BEARING

$44.99

$

In Stock, only 1 left!

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

11

Toro 88-5010

SPACER-RACK, STEERING

$3.99

$

In Stock, only 2 left!

0

12

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 3230-2

BOLT-CARR

$1.49

$

In Stock, only 4 left!

0

15

Toro 99-2956-03

BRACKET-MODULE

$14.99

$

Usually ships in 3-6 days

0

16

Toro 88-6380

SHAFT-STEERING, LONG

$206.99

$

In Stock, only 3 left!

0

17

Toro 88-5150

BEARING-FLANGE

$4.49

$

In Stock, Qty 14

0

18

Toro 3-6498

WASHER-THRUST

$6.99

$

In Stock, Qty 20+

0

19

Toro 32151-48

E-RING

$1.99

$

In Stock, Qty 13

0

20

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 11

0

22

Toro 52-2891

BUSHING-FLANGED, NYLON

$3.99

$

In Stock, Qty 16

0

23

Toro 302-26

FITTING-GREASE

$7.49

$

In Stock, only 1 left!

0
