71254 (XLS 380) - Toro Lawn Tractor (SN: 311000001 - 311999999) (2011) REAR BODY AND SEAT ASSEMBLY Parts Diagram

Lawn Tractor

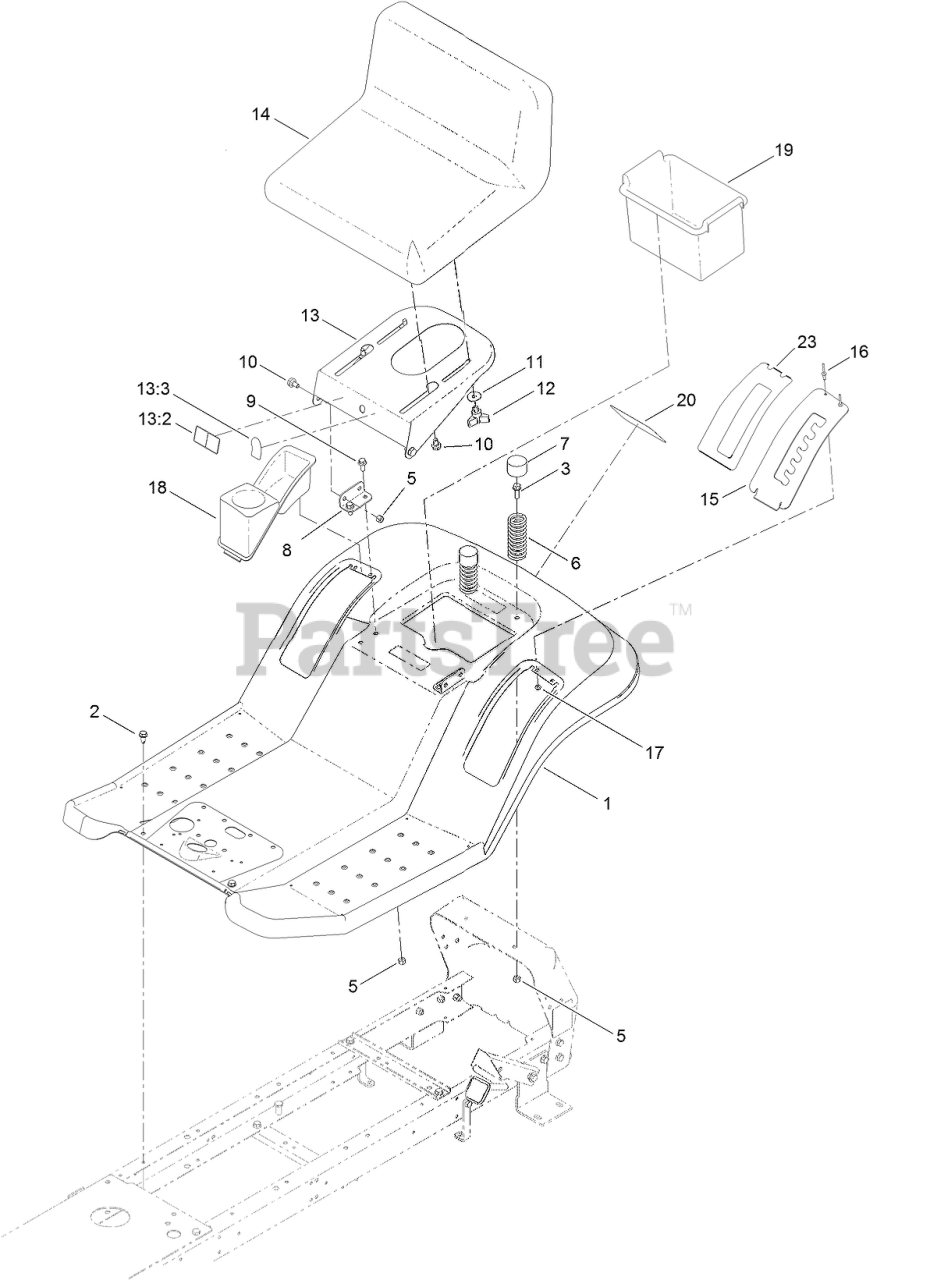

REAR BODY AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 119-8225-01

BODY-REAR
(Superseded to 121-3978-01)

$

$

Not available

2

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

3

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

5

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Toro 88-6220

SPRING-COMPRESSION

$35.99

$

Usually ships in 3-6 days

0

7

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, Qty 13

0

8

Toro 88-4820-03

BRACKET-PIVOT, SEAT

$7.49

$

Usually ships in 3-6 days

0

9

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

10

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

11

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 20+

0

12

Toro 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

13

Toro 106-6437

SEAT SUPPORT ASM

$85.99

$

Usually ships in 3-6 days

0

13:2

Toro 119-2730

DECAL-DANGER

$

$

Currently unavailable

13:3

Toro 99-5340

DECAL-SWITCH

$4.99

$

Usually ships in 3-6 days

0

14

Toro 106-6439

SEAT-11 INCH

$

$

Not available

15

Toro 120-1171-03

GATE-HOC

$

$

Not available

16

Toro 3269-4

RIVET-POP

$1.49

$

In Stock, only 1 left!

0

17

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

18

Toro 88-4990

TRAY-FENDER

$44.99

$

Usually ships in 3-6 days

0

19

Toro 88-4040

BOX-BATTERY

$44.99

$

Usually ships in 3-6 days

0

20

Toro 67-1300

DECAL

$31.99

$

Usually ships in 3-6 days

0

23

Toro 121-0965

DECAL-HOC

$

$

Not available
