71253 (XL 440 H) - Toro Lawn Tractor (SN: 310000001 - 310999999) (2010) FRAME AND BODY ASSEMBLY Parts Diagram

Lawn Tractor

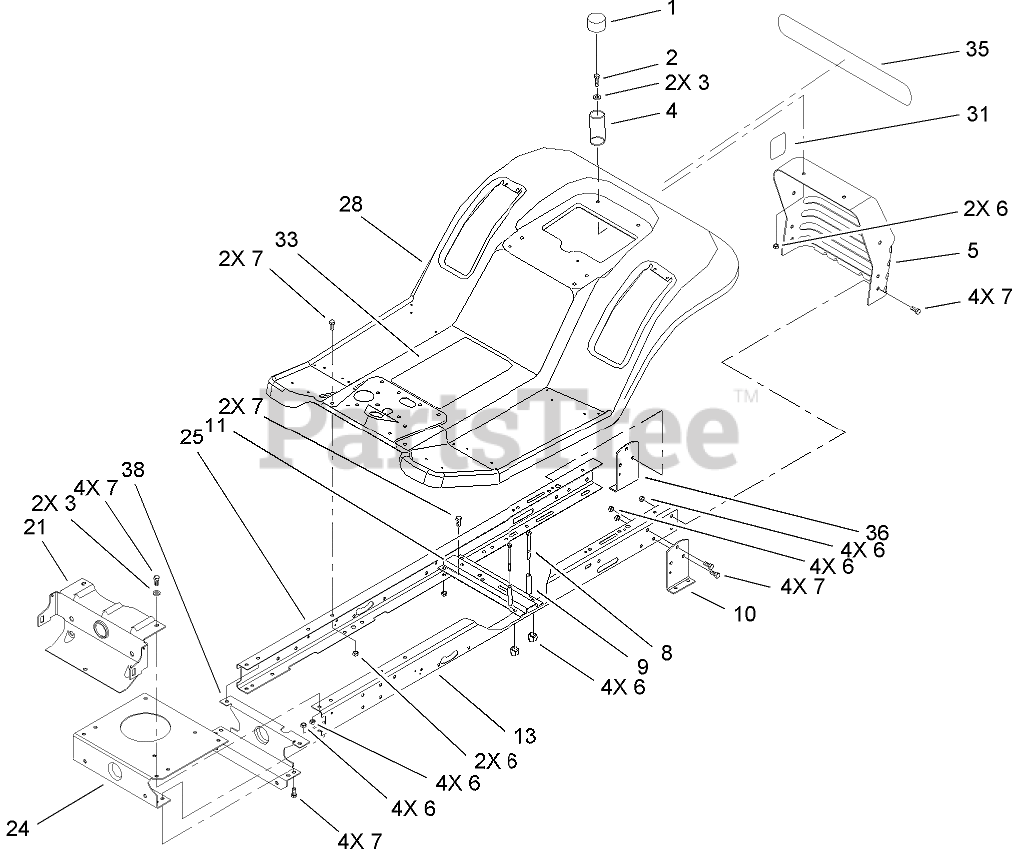

FRAME AND BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-6220

SPRING-COMPRESSION

$28.99

$

Usually ships in 3-6 days

0

5

Toro 99-2957-03

SUPPORT-SEAT/REAR HITCH

$157.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$1.99

$

In Stock, Qty 14

0

9

Toro 88-5470

SPACER

$13.99

$

Usually ships in 3-6 days

0

10

Toro 93-3857-03

BRACKET-MOUNTING, LH

$20.99

$

Usually ships in 3-6 days

0

11

Toro 88-4620-03

BRACKET-IDLER PIVOT

$

$

Not available

13

Toro 99-2958-03

RAIL-FRAME, LH

$103.99

$

Usually ships in 3-6 days

0

21

Toro 98-3576-03

SUPPORT-AXLE, FRONT

$

$

Not available

24

Toro 88-4630-03

PLATE-MOUNTING, ENGINE

$70.99

$

Usually ships in 3-6 days

0

25

Toro 99-2959-03

RAIL-FRAME, RH

$103.99

$

Usually ships in 3-6 days

0

28

Toro 99-2971

REAR BODY ASM

$721.99

$

Usually ships in 3-6 days

0

31

Toro 100-7449

DECAL-VALVE, DUMP

$25.99

$

Usually ships in 3-6 days

0

33

Toro 93-6676

DECAL-INSTRUCTION

$30.99

$

Usually ships in 3-6 days

0

35

Toro 105-2498

DECAL-REAR FENDER, LAWN TRACTORS

$15.99

$

Usually ships in 3-6 days

0

36

Toro 93-3856-03

BRACKET-MOUNTING, RH

$

$

Not available

38

Toro 93-3831-03

SUPPORT-REAR

$

$

Not available
