71246 (XL 380 H) - Toro Lawn Tractor (SN: 270000001 - 270999999) (2007) BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

Lawn Tractor

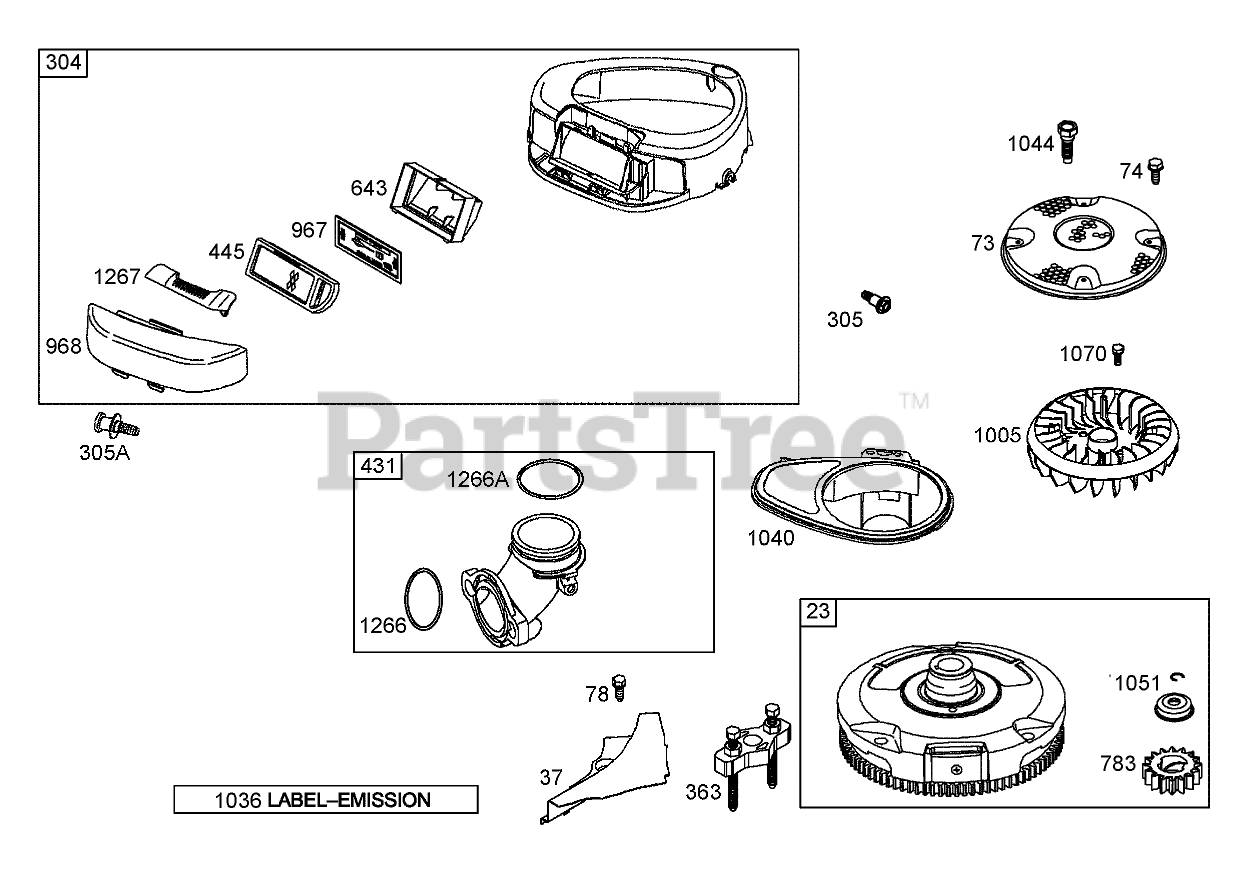

BLOWER HOUSING ASSEMBLY BRIGGS AND STRATTON 286H77-0165-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693556

Flywheel
(Superseded to 595094)

Note: Obtain parts from www.briggsandstratton.com

$238.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 697352

Guard-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 2 left!

0

73

Briggs & Stratton 697133

Screen-Rotating

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

74

Briggs & Stratton 697897

Screw (Rotating Screen)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

78

Briggs & Stratton 691003

Screw (Flywheel Guard)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 9

0

304

Briggs & Stratton 698599

Housing-Blower
(Superseded to 591907)

Note: Obtain parts from www.briggsandstratton.com

$184.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 697102

Screw (Blower Housing)
(Superseded to 596718)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 2 left!

0

305A

Briggs & Stratton 697103

Screw (Blower Housing)
(Superseded to 799370)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 4 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

In Stock, only 1 left!

0

431

Briggs & Stratton 697122

Elbow-Intake

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 698083

Filter-Cartridge, Air Cleaner
(Superseded to 794422)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, Qty 20+

0

643

Briggs & Stratton 698401

Retainer-Filter, Air

Note: Obtain parts from www.briggsandstratton.com

$12.99

$

In Stock, only 1 left!

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

Note: Obtain parts from www.briggsandstratton.com

$26.99

$

In Stock, only 1 left!

0

967

Briggs & Stratton 697015

Filter-Cleaner, Pre

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

968

Briggs & Stratton 697084

Cover-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 699043

Fan-Flywheel
(Superseded to 796201)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 790464

Label?Emission (Used After Code Date 04063000)

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 695700

Label?Emission (Used Before Code Date 04070100)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

1040

Briggs & Stratton 699852

Plate-Trim

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

In Stock, only 1 left!

0

1044

Briggs & Stratton 698139

Screw (Crankshaft Extension)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

Ring-Retaining

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 7

0

1070

Briggs & Stratton 690372

Screw (Flywheel Fan)
(Superseded to 791680)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 6

0

1266

Briggs & Stratton 691917

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 19

0

1267

Briggs & Stratton 697419

Latch-Housing, Blower

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0
