71246 (XL 380 H) - Toro Lawn Tractor (SN: 260000001 - 260999999) (2006) 38IN DECK BLADE DRIVE ASSEMBLY Parts Diagram

Lawn Tractor

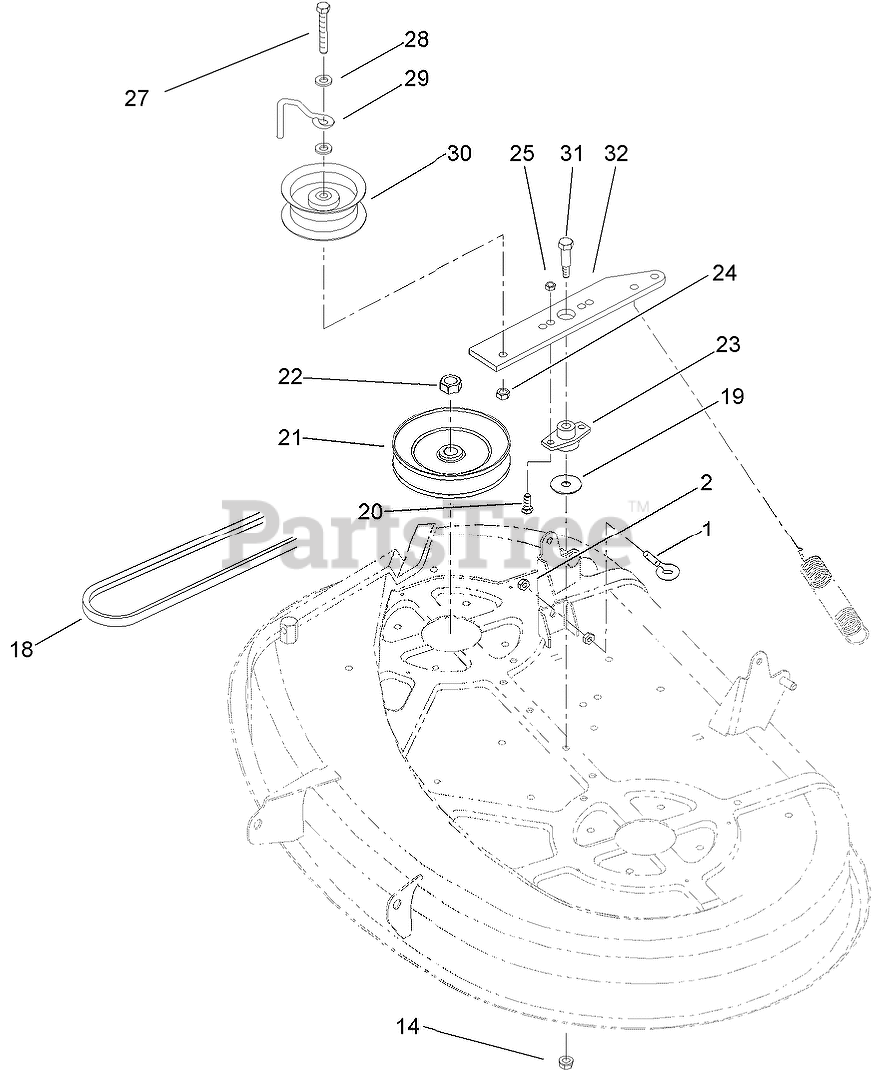

38IN DECK BLADE DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 85-9910

EYEBOLT

$36.99

$

Usually ships in 3-6 days

0

2

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

14

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

18

Toro 88-6250

BELT-V

$45.99

$

In Stock, only 4 left!

0

19

Toro 3256-68

WASHER-FLAT

$2.99

$

Usually ships in 3-6 days

0

20

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 88-5330

PULLEY

$107.99

$

In Stock, only 2 left!

0

22

Toro 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

23

Toro 88-4980

BUSHING-ARM, IDLER

$14.99

$

In Stock, only 2 left!

0

24

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

25

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 18

0

27

Toro 323-12

SCREW-HH

$2.49

$

In Stock, Qty 13

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

29

Toro 107-7307

GUIDE-IDLER, BELT
(Superseded to 138-7270)

$2.99

$

In Stock, Qty 6

0

30

Toro 88-5630

PULLEY-IDLER, FLAT
(Superseded to 132-4717)

$22.99

$

In Stock, only 4 left!

0

31

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

32

Toro 88-4870-03

ARM-IDLER

$50.99

$

Usually ships in 3-6 days

0
