71246 (XL 380 H) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) 38IN DECK ASSEMBLY Parts Diagram

Lawn Tractor

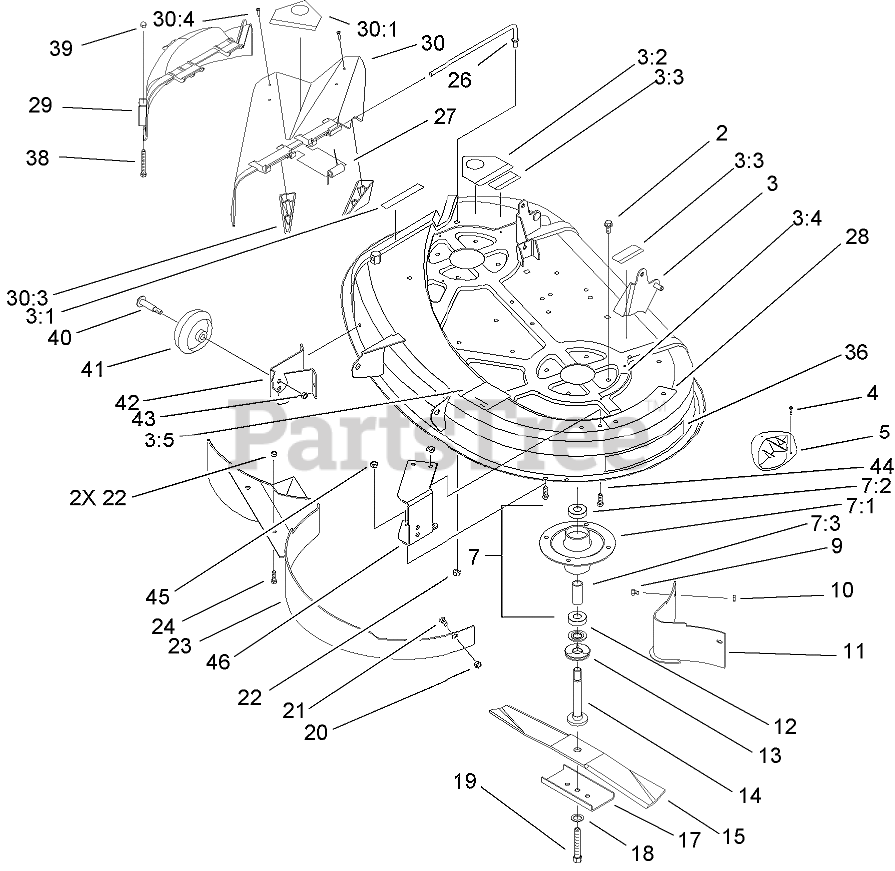

38IN DECK ASSEMBLY Parts Diagram

  • Title

2

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

0

3

Toro 99-5847

DECK ASM

$1321.99

$

Usually ships in 3-6 days

0

3:1

Toro 93-7009

DECAL-DANGER

$6.49

$

In Stock, only 1 left!

0

3:2

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

3:3

Toro 93-6674

DECAL-WARNING

$6.49

$

Usually ships in 3-6 days

0

3:4

Toro 93-6677

DECAL-DANGER, SHIELD

$

$

Not available

3:5

Toro 93-6679

DECAL-ROUTING, BELT
(Superseded to 117-0033)

$6.49

$

Usually ships in 3-6 days

0

4

Toro 32144-111

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

5

Toro 76-2160

PLATE-KICKER

$15.99

$

In Stock, Qty 5

0

7

Spindle ASM

Note: Not serviced separately

$

$

Not available

7:1

Toro 88-4510

HOUSING-SPINDLE

$91.99

$

In Stock, Qty 7

0

7:2

Toro 100-1048

BEARING-BALL
(Superseded to 38-7820)

$13.99

$

In Stock, Qty 20+

0

7:3

Toro 62-3661

SPACER

$15.99

$

In Stock, Qty 15

0

9

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

11

Toro 79-1640-03

BAFFLE ASM

$59.99

$

Usually ships in 3-6 days

0

12

Toro 80-4380

SPACER

$6.49

$

In Stock, Qty 12

0

13

Toro 80-4360

SHIELD-BEARING

$18.99

$

In Stock, Qty 13

0

14

Toro 80-4341

SHAFT-SPINDLE

$47.99

$

In Stock, only 1 left!

0

15

Toro 14-7799

BLADE KIT

$62.99

$

In Stock, only 3 left!

0

17

Toro 80-0510-03

STIFFENER-BLADE

$17.99

$

In Stock, Qty 7

0

18

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

21

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

23

Toro 79-1600-03

BAFFLE ASM

$94.99

$

Usually ships in 3-6 days

0

24

Toro 323-5

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

26

Toro 95-1661

ROD-PIVOT

$20.99

$

In Stock, only 1 left!

0

27

Toro 57-6950

SPRING

$25.99

$

In Stock, only 1 left!

0

28

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

29

Toro 88-4430

COVER-RECYCLER

$

$

Not available

30

Toro 93-7695

DEFLECTOR ASM

$82.99

$

In Stock, only 2 left!

0

30:1

Toro 93-7010

DECAL-DANGER

$11.99

$

Usually ships in 3-6 days

0

30:3

Toro 93-7696

KICKER

$14.99

$

In Stock, only 3 left!

0

30:4

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

36

Toro 106-6407

DECAL

$

$

Not available

38

Toro 321-14

SCREW-HH

$4.99

$

In Stock, Qty 12

0

39

Toro 32111-7

NUT-CAP

$7.99

$

In Stock, only 2 left!

0

40

Toro 56-6591

SCREW-SHOULDER, HWH

$9.49

$

In Stock, only 3 left!

0

41

Toro 701756

WHEEL-GAGE

$7.99

$

In Stock, Qty 14

0

42

Toro 88-5740-03

BRACKET-WHEEL, RH

$39.99

$

Usually ships in 3-6 days

0

43

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

44

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

45

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

46

Toro 93-3896-03

BRACKET-WHEEL, LH

$58.99

$

Usually ships in 3-6 days

0
