71245 (14-38 HXLE) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) CRANKSHAFT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 280H07-0160-E1 Parts Diagram

Lawn Tractor

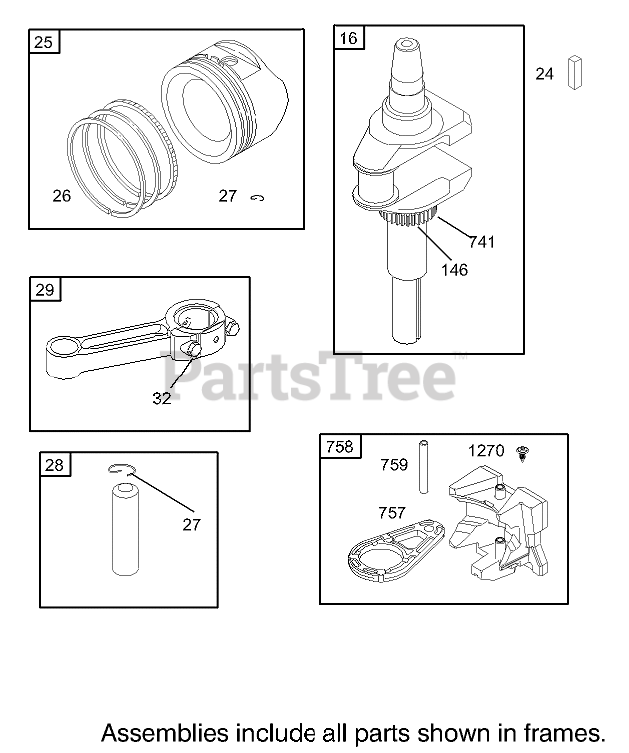

CRANKSHAFT ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 280H07-0160-E1 Parts Diagram

  • Title

16

Briggs & Stratton 697127

Crankshaft
(Superseded to 595339)

$

$

Not available

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 698371

Piston ASM (Standard)
(Superseded to 792307)

$172.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 698372

Piston Assembly(.010" Oversize)

$82.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 698373

Piston ASM (.020in Oversize)
(Superseded to 792728)

$278.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 698374

Piston Assembly(.030" Oversize)

$86.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 698375

Ring Set (Standard)

$57.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 698376

Ring Set(.010" Oversize)

$52.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 698377

Ring Set (.020in Oversize)
(Superseded to 697120)

$255.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 698378

Ring Set(.030" Oversize)

$43.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 698469

Lock-Pin, Piston

$4.99

$

In Stock, Qty 13

0

28

Briggs & Stratton 697099

Pin-Piston (Std)

$13.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 697126

Rod?Connecting (Standard)
(Superseded to 794122)

$78.99

$

In Stock, only 3 left!

0

Briggs & Stratton 697264

Rod-Connecting (.020in Undersize)

$56.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

$4.99

$

In Stock, only 2 left!

0

146

Briggs & Stratton 691639

Key-Timing

$4.49

$

In Stock, Qty 5

0

741

Briggs & Stratton 697128

Gear-Timing

$20.99

$

In Stock, only 1 left!

0

757

Briggs & Stratton 697607

Link-Counterweight
(Superseded to 793242)

$20.99

$

In Stock, only 2 left!

0

758

Briggs & Stratton 697134

Counterweight
(Superseded to 793763)

$128.99

$

Usually ships in 2-12 days

0

759

Toro 397392

Pin-Counterweight

$

$

Currently unavailable

1270

Briggs & Stratton 697156

Plug-Counterweight, AVS
(Superseded to 793243)

$4.99

$

In Stock, Qty 5

0
