71242 (16-38 HXLE) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

Lawn Tractor

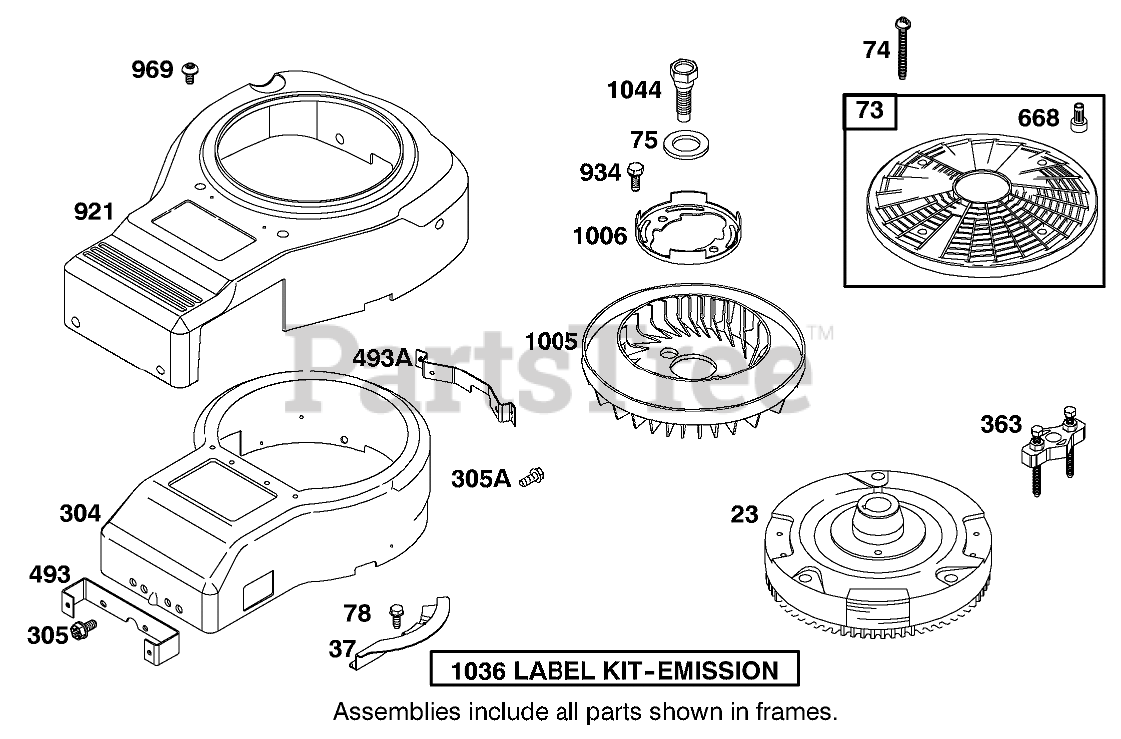

ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693557

Flywheel

$

$

Not available

37

Briggs & Stratton 224502

Guard-Flywheel
(Superseded to 690456)

$7.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 494439

Screen-Rotating

$53.99

$

In Stock, Qty 10

0

74

Briggs & Stratton 94821

Screw-Sem
(Superseded to 691674)

$2.49

$

Usually ships in 2-12 days

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 94896

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 8

0

304

Briggs & Stratton 225017

Housing-Blower
(Superseded to 690497)

$199.99

$

In Stock, only 1 left!

0

305

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

305A

Briggs & Stratton 692127

Screw (Fuel Tank)

$6.49

$

In Stock, only 2 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

493

Briggs & Stratton 224968

Bracket-Front
(Superseded to 690493)

$22.99

$

Usually ships in 2-12 days

0

493A

Briggs & Stratton 224969

Bracket-Rear
(Superseded to 690494)

$20.99

$

Usually ships in 2-12 days

0

668

Briggs & Stratton 280848

Spacer
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

921

Briggs & Stratton 225016

Cover-Blower Housing
(Superseded to 690496)

$93.99

$

Usually ships in 2-12 days

0

934

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

969

Briggs & Stratton 94822

Screw-Sem
(Superseded to 690365)

$2.99

$

In Stock, only 1 left!

0

1005

Briggs & Stratton 281400

Fan-Flywheel
(Superseded to 695493)

$92.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 224413

Retainer-Fan
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 499364

Label Kit-Emission

$3.99

$

Usually ships in 2-12 days

0

1044

Briggs & Stratton 94673

Screw-Hex.Head
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

1797

Briggs & Stratton 92278

Nut-Hex
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days
