71240 (15-38 HXL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

Lawn Tractor

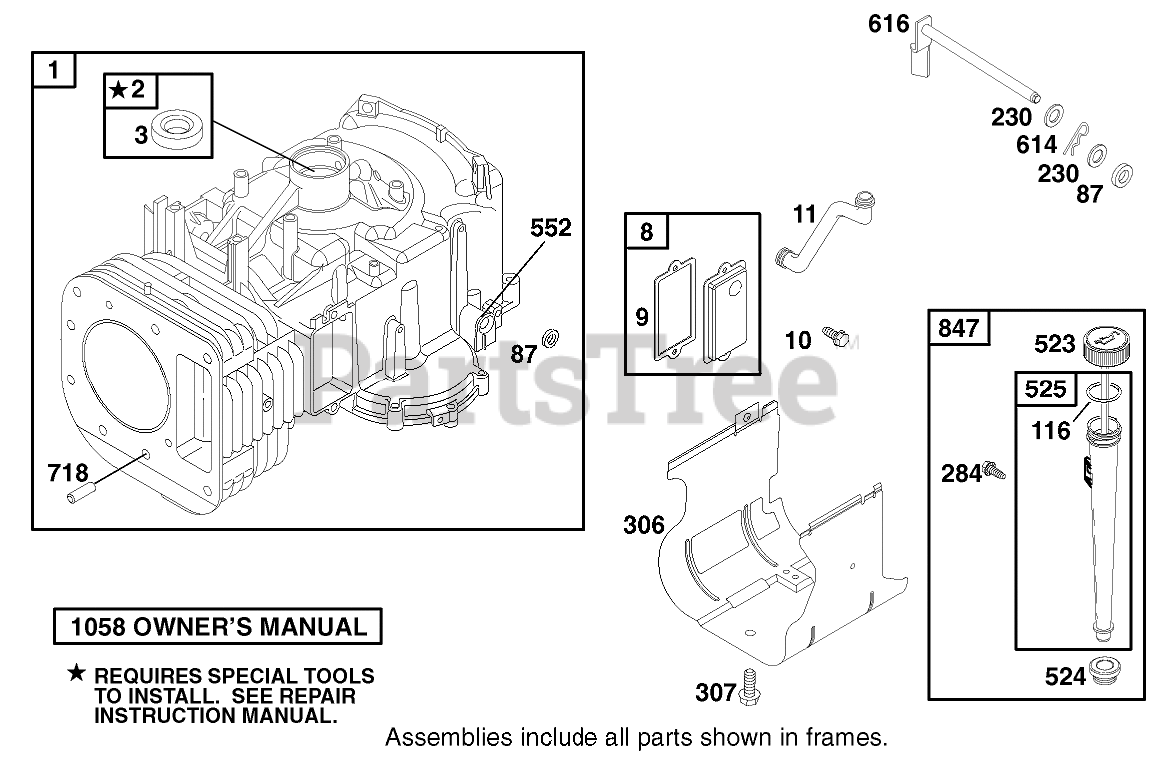

ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

  • Title
1

Briggs & Stratton 496412

Cylinder Assembly

$537.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

$18.99

$

In Stock, Qty 7

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Gasket Set-Part No. 495993.

$6.49

$

In Stock, Qty 20+

0

8

$63.99

$

In Stock, Qty 6

0

9

Briggs & Stratton 27803

Gasket-Breather
(Superseded to 27803S)

Note: Included in Gasket Set-Part No. 495993.

$4.49

$

In Stock, Qty 20+

0

10

Briggs & Stratton 94621

Screw
(Superseded to 691666)

$3.99

$

In Stock, Qty 5

0

11

Briggs & Stratton 281246

Tube-Breather
(Superseded to 691328)

$15.99

$

In Stock, only 1 left!

0

87

Briggs & Stratton 491323

Seal-Oil
(Superseded to 692407)

Note: Included in Gasket Set-Part No. 495993.

$7.99

$

In Stock, Qty 7

0

116

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Part No. 495993.

$4.49

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 94927

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

284

Briggs & Stratton 94903

Screw-Shoulder
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

306

Briggs & Stratton 225020

Shoulder Bolt
(Superseded to 698454)

$47.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94930

Screw-Hex
(Superseded to 691003)

$3.49

$

In Stock, Qty 9

0

523

Briggs & Stratton 495230

Dipstick
(Superseded to 692014)

$25.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Gasket Set-Part No. 495993.

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 496113

Tube-Oil Fill
(Superseded to 691398)

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 491986

Bushing-Crank, Governor

$

$

Not available

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 495157

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

718

Briggs & Stratton 230192

Pin-Dowel
(Superseded to 690959)

$6.99

$

In Stock, only 1 left!

0

847

Briggs & Stratton 496415

Fill Group-Oil
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0

1058

Toro 273683

Owner-s Manual

$

$

Currently unavailable
