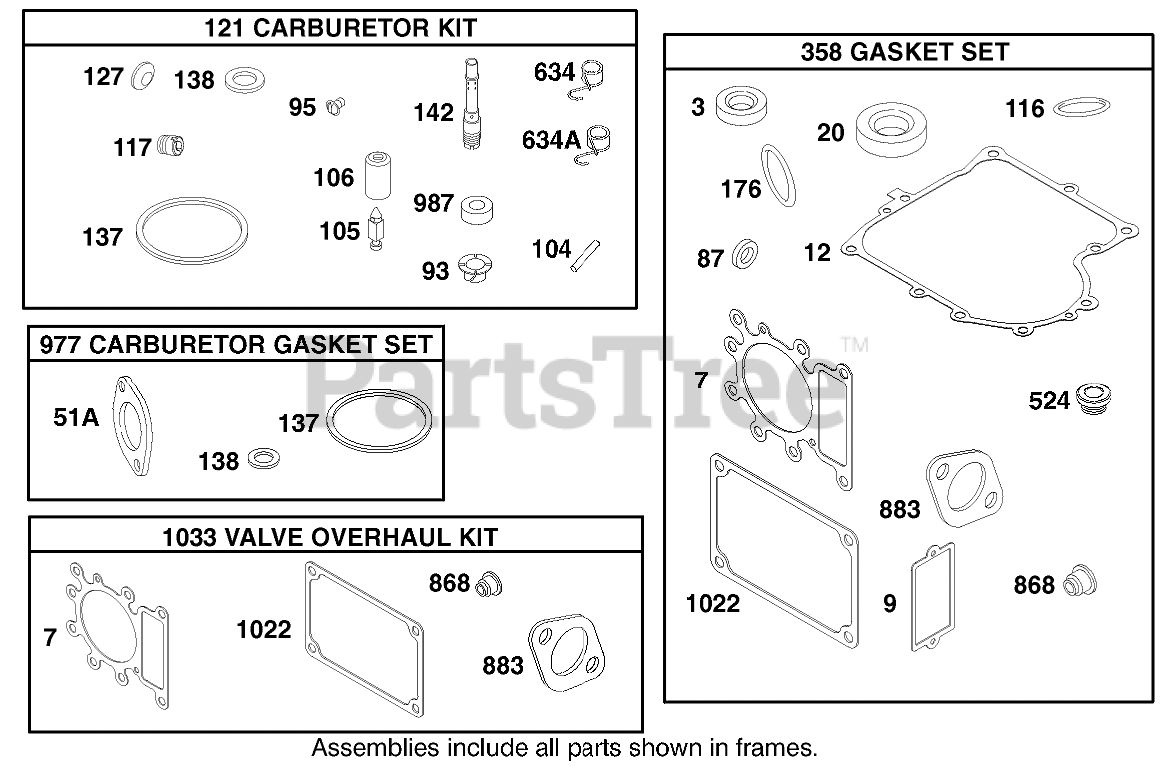

71240 (15-38 HXL) - Toro Lawn Tractor (SN: 099000001 - 099999999) (1999) ENGINE BRIGGS & STRATTON MODEL 28Q777-0690-E1 Parts Diagram

Briggs & Stratton 391086

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 273280

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 273280

Note: Included in Valve Overhaul Kit-Part No. 495992.

Briggs & Stratton 27803

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 271916

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 271997

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 271996

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 291675

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 273650

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 491323

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 281346

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 94098

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 231789

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 231855

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 231854

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 270920

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 232118

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 499233

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 281165

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 281165

Note: Included in Carburetor Gasket Set-Part No. 690192.

Briggs & Stratton 281164

Note: Included in Carburetor Gasket Set-Part No. 690192.

Briggs & Stratton 281164

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 232117

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 281106

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 495993

Briggs & Stratton 281370

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 494453

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 494455

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 494435

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 494435

Note: Included in Valve Overhaul Kit-Part No. 495992.

Briggs & Stratton 272293

Note: Included in Valve Overhaul Kit-Part No. 495992.

Briggs & Stratton 272293

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 690192

Briggs & Stratton 281166

Note: Included in Carburetor Kit-Part No. 499233.

Briggs & Stratton 272475

Note: Included in Gasket Set-Part No. 495993.

Briggs & Stratton 272475

Note: Included in Valve Overhaul Kit-Part No. 495992.

Briggs & Stratton 495992
