71233 (17-44 HXL) - Toro Indy Special Edition Lawn Tractor (SN: 230000001 - 230999999) (2003) REAR BODY AND SEAT ASSEMBLY Parts Diagram

Indy Special Edition Lawn Tractor

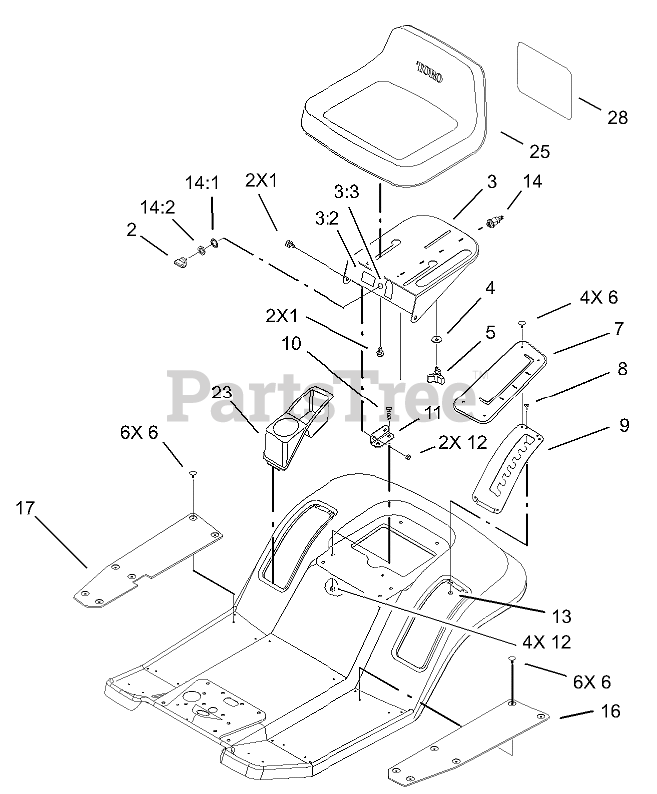

REAR BODY AND SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 37-8770

BOLT-SHOULDER

$1.49

$

In Stock, only 2 left!

0

2

Toro 63-8360

KEY-IGNITION

$5.99

$

In Stock, Qty 13

0

3

Toro 99-5830

SEAT SUPPORT ASM

$100.99

$

Usually ships in 3-6 days

0

3:2

Toro 99-2985

DECAL-DANGER

$

$

Not available

3:3

Toro 99-5339

DECAL

$

$

Not available

4

Toro 5-4460

WASHER-PIVOT

$7.99

$

In Stock, Qty 6

0

5

Toro 92-9674

KNOB

$14.99

$

In Stock, only 4 left!

0

6

Toro 3290-479

FASTENER-PANEL

$4.99

$

In Stock, Qty 20+

0

7

Toro 88-5170

COVER-HOC

$41.99

$

Usually ships in 3-6 days

0

8

Toro 3290-282

RIVET-BLIND

$0.99

$

In Stock, Qty 8

0

9

Toro 88-5030-03

GATE-HOC

$40.99

$

Usually ships in 3-6 days

0

10

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

11

Toro 88-4820-03

BRACKET-PIVOT, SEAT

$7.49

$

Usually ships in 3-6 days

0

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3269-26

WASHER-PLAIN

$1.49

$

Usually ships in 3-6 days

0

14

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, only 1 left!

0

14:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, only 3 left!

0

14:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 10

0

16

Toro 88-5240

MAT-FOOT, LH

$

$

Not available

17

Toro 88-5230

MAT-FOOT, RH

$

$

Not available

23

Toro 88-4990

TRAY-FENDER

$42.99

$

Usually ships in 3-6 days

0

25

Toro 92-6511

SEAT-V-511

$

$

Not available

28

Toro 67-7320

DECAL

$35.99

$

In Stock, only 2 left!

0
