71233 (17-44 HXL) - Toro Indy Special Edition Lawn Tractor (SN: 230000001 - 230999999) (2003) HEIGHT-OF-CUT ASSEMBLY Parts Diagram

Indy Special Edition Lawn Tractor

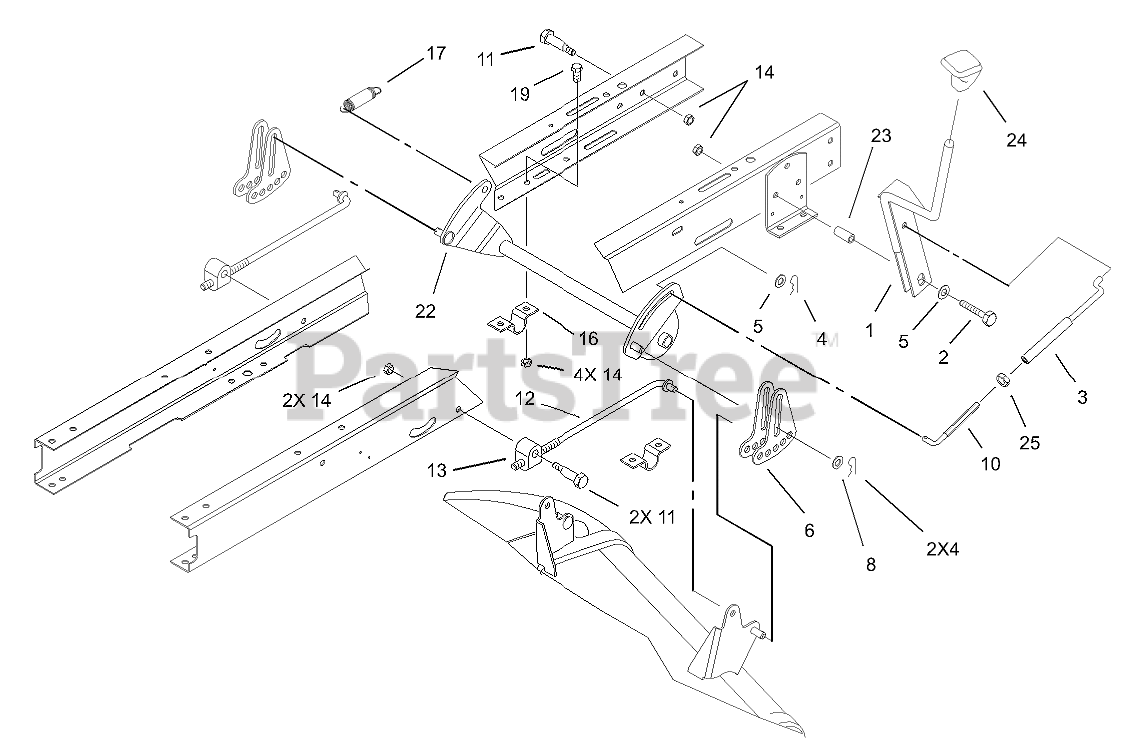

HEIGHT-OF-CUT ASSEMBLY Parts Diagram

  • Title

1

Toro 93-3822-03

HOC LEVER ASM
(Superseded to 120-1134-03)

$50.99

$

Usually ships in 3-6 days

0

2

Toro 322-39

SCREW-HH
(Superseded to 322-13)

$3.49

$

In Stock, only 3 left!

0

3

Toro 93-3885

TUBE

$107.99

$

Usually ships in 3-6 days

0

4

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

5

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

6

Toro 88-5570-03

LINK-ADJUSTING, HOC

$15.99

$

Usually ships in 3-6 days

0

8

Toro 80-6990

WASHER-HARDENED

$5.49

$

In Stock, Qty 11

0

10

Toro 93-3888

LINK-HOC

$29.99

$

Usually ships in 3-6 days

0

11

Toro 7-0030

SCREW-SHOULDER, HH

$9.49

$

In Stock, only 2 left!

0

12

Toro 88-5450

ROD-HANGER, REAR

$59.99

$

In Stock, only 1 left!

0

13

Toro 88-4230

TRUNNION-HOC

$15.99

$

In Stock, only 1 left!

0

14

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 88-4730

CLAMP-PIVOT, HOC

$5.99

$

Usually ships in 3-6 days

0

17

Toro 93-3808

SPRING-EXTENSION

$62.99

$

Usually ships in 3-6 days

0

19

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

22

Toro 93-7660-03

PIVOT-HOC

$147.99

$

Usually ships in 3-6 days

0

23

Toro 65-7210

SPACER

$3.99

$

Usually ships in 3-6 days

0

24

Toro 94-5565

KNOB-SHIFT

$16.99

$

In Stock, only 1 left!

0

25

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0
