71233 (17-44 HXL) - Toro Indy Special Edition Lawn Tractor (SN: 210000001 - 210999999) (2001) HOUSING AND BEARING ASSEMBLY Parts Diagram

Indy Special Edition Lawn Tractor

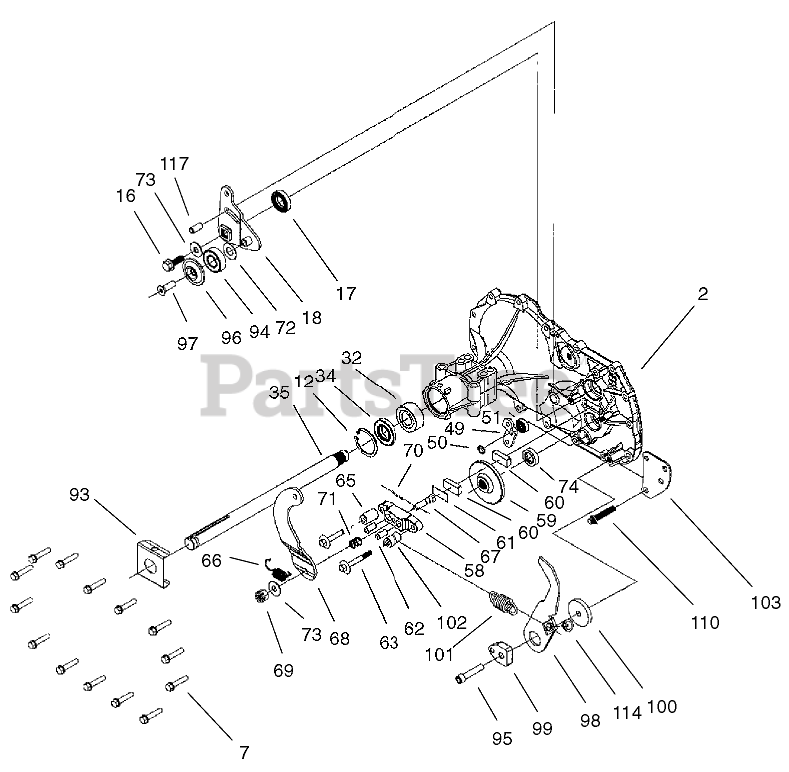

HOUSING AND BEARING ASSEMBLY Parts Diagram

  • Title

2

Toro 104-5302

SIDE HOUSING ASM

$299.99

$

Usually ships in 3-6 days

0

7

Toro 104-5305

SCREW-HHF

$7.99

$

In Stock, only 1 left!

0

12

Toro 104-5309

RING-RETAINING

$12.99

$

In Stock, only 1 left!

0

16

Toro 104-5312

SCREW-HF

$8.99

$

Usually ships in 3-6 days

0

17

Toro 104-5313

SEAL-LIP

$25.99

$

In Stock, only 1 left!

0

18

Toro 104-5314

ARM-CONTROL

$

$

Not available

32

Toro 104-5321

BEARING-SLEEVE, OUTBOARD

$41.99

$

Usually ships in 3-6 days

0

34

Toro 104-5322

SEAL-LIP

$37.99

$

Usually ships in 3-6 days

0

35

Toro 104-5323

SHAFT-AXLE, RH

$293.99

$

Usually ships in 3-6 days

0

49

Toro 104-5336

ARM-BYPASS

$25.99

$

Usually ships in 3-6 days

0

50

Toro 104-5337

RING-RETAINING

$9.99

$

Usually ships in 3-6 days

0

51

Toro 104-5338

SEAL-LIP

$21.99

$

Usually ships in 3-6 days

0

58

Toro 104-5343

YOKE-BRAKE

$62.99

$

Usually ships in 3-6 days

0

59

Toro 104-5344

ROTOR-BRAKE

$86.99

$

Usually ships in 3-6 days

0

60

Toro 104-2171

PUCK-BRAKE

$20.99

$

Usually ships in 3-6 days

0

61

Toro 104-2181

PUCK-PLATE

$9.49

$

Usually ships in 3-6 days

0

62

Toro 104-2176

PIN-BRAKE

$10.99

$

Usually ships in 3-6 days

0

63

Toro 104-5345

SCREW-HF

$11.99

$

Usually ships in 3-6 days

0

65

Toro 104-2180

SPACER

$8.99

$

Usually ships in 3-6 days

0

66

Toro 104-2184

SPRING-ARM, BRAKE (BIAS)

$17.99

$

Usually ships in 3-6 days

0

67

Toro 104-2174

BOLT-SQH

$

$

Not available

68

Toro 104-5346

ARM-BRAKE

$

$

Not available

69

Toro 93-3807

NUT-CASTLE

$23.99

$

Usually ships in 3-6 days

0

70

Toro 104-2179

PIN-COTTER
(Superseded to 327-27)

$

$

Not available

71

Toro 104-2188

SPRING-BRAKE, ANTI DRAG

$7.99

$

Usually ships in 3-6 days

0

72

Toro 94-1933

WASHER

$6.49

$

Usually ships in 3-6 days

0

73

Toro 104-2146

WASHER
(Superseded to 5-4460)

$7.99

$

In Stock, Qty 6

0

74

Toro 104-5347

SEAL-OIL

$21.99

$

Usually ships in 3-6 days

0

93

Toro 104-5353

CLIP-SPRING

$

$

Not available

94

Toro 104-2156

BEARING

$118.99

$

Usually ships in 3-6 days

0

95

Toro 104-2155

SCREW

$

$

Not available

96

Toro 104-2157

SPACER-LOCATING

$

$

Not available

97

Toro 104-2158

SCREW-COUNTERSUNK

$

$

Not available

98

Toro 104-5354

ARM-RETURN

$

$

Not available

99

Toro 104-2119

PUCK-ADJUSTING

$

$

Not available

100

Toro 104-5355

WASHER

$

$

Not available

101

Toro 104-5356

SPRING-EXTENSION

$23.99

$

Usually ships in 3-6 days

0

102

Toro 104-5357

SPACER

$

$

Not available

103

Toro 104-5358

BRACKET-TORQUE

$34.99

$

Usually ships in 3-6 days

0

110

Toro 104-2148

SCREW-TTH

$

$

Not available

114

Toro 104-5363

GUIDE-SPRING

$11.99

$

Usually ships in 3-6 days

0

117

Toro 104-5365

PIN-SPRING

$

$

Not available
