71228 (17-44 HXL) - Toro Lawn Tractor (SN: 220010001 - 220999999) (2002) BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 31F777-0123-E1 Parts Diagram

Lawn Tractor

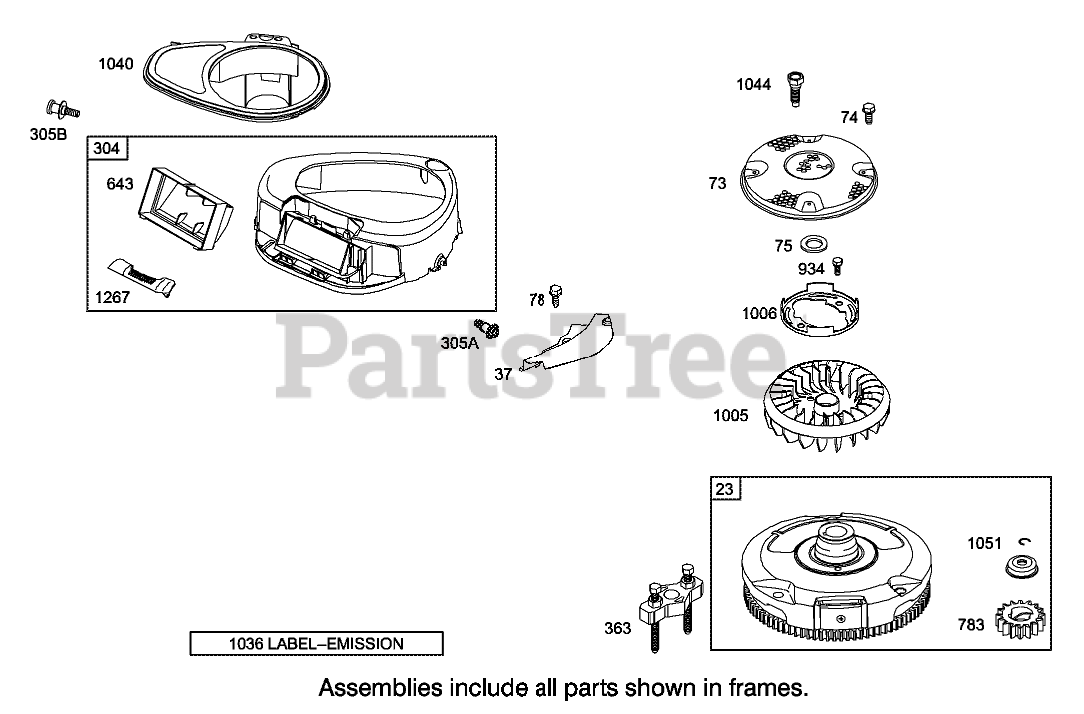

BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 31F777-0123-E1 Parts Diagram

  • Title

23

Briggs & Stratton 693557

Flywheel

$

$

Not available

37

Briggs & Stratton 697108

Guard?Flywheel

$9.49

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 697133

Screen-Rotating

$

$

Not available

74

Briggs & Stratton 690661

Screw

$3.49

$

In Stock, Qty 8

0

75

Briggs & Stratton 690582

Washer-Flywheel

$4.49

$

In Stock, only 4 left!

0

78

Briggs & Stratton 690661

Screw

$3.49

$

In Stock, Qty 8

0

304

Briggs & Stratton 697137

Housing-Blower
(Superseded to 698804)

$126.99

$

Usually ships in 2-12 days

0

305A

Briggs & Stratton 697102

Screw
(Superseded to 596718)

$3.99

$

In Stock, only 2 left!

0

305B

Briggs & Stratton 697103

Screw
(Superseded to 799370)

$3.99

$

In Stock, only 4 left!

0

363

Briggs & Stratton 19203

Puller-Flywheel

$23.99

$

In Stock, only 1 left!

0

643

Briggs & Stratton 697155

Retainer-Air Filter

$11.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

934

Briggs & Stratton 691058

Screw

$5.99

$

In Stock, Qty 11

0

1005

Briggs & Stratton 697111

Fan?Flywheel

$25.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 690452

Retainer-Fan

$10.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 695700

Label?Emission

$4.49

$

Usually ships in 2-12 days

0

1040

Toro 697142

Plate-Trim

$

$

Currently unavailable

1044

Briggs & Stratton 691658

Screw-Crankshaft Extension
(Superseded to 698139)

$5.99

$

In Stock, Qty 7

0

1051

Briggs & Stratton 691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

1267

Briggs & Stratton 697135

Latch-Blower Housing
(Superseded to 697662)

$21.99

$

Usually ships in 2-12 days

0
