71228 (17-44 HXL) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) OIL FILTER, TUBE, AND PUMP ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 312777-0128-E1 Parts Diagram

Lawn Tractor

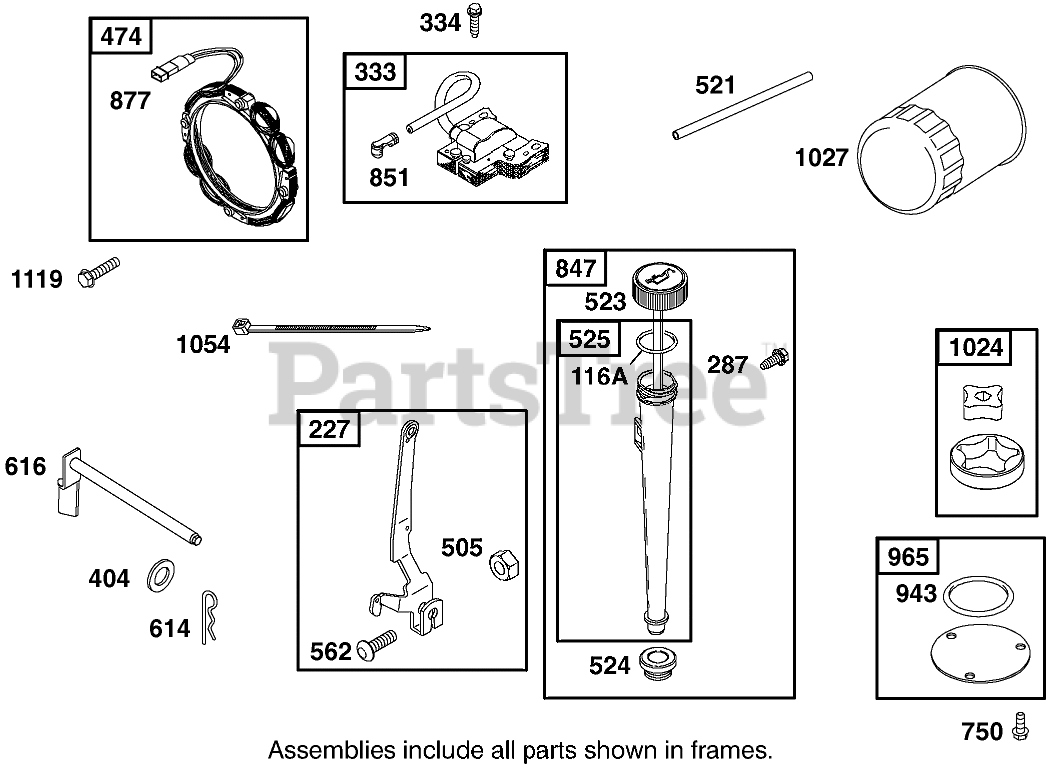

OIL FILTER, TUBE, AND PUMP ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 312777-0128-E1 Parts Diagram

  • Title

116A

Briggs & Stratton 270920

O-Ring
(Superseded to 691870)

Note: Included in Gasket Set-Ref. 358.

$4.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, only 2 left!

0

287

Briggs & Stratton 94903

Screw-Shoulder
(Superseded to 691002)

$8.49

$

In Stock, only 2 left!

0

333

Briggs & Stratton 495859

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

404

Briggs & Stratton 94927

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

474

Briggs & Stratton 393474

Alternator
(Superseded to 592831)

$101.99

$

In Stock, Qty 8

0

505

Briggs & Stratton 231978

Nut-Hex
(Superseded to 691251)

$3.49

$

In Stock, Qty 9

0

521

Briggs & Stratton 690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

523

Briggs & Stratton 495230

Dipstick
(Superseded to 692014)

$25.99

$

In Stock, Qty 6

0

524

Briggs & Stratton 281370

Seal
(Superseded to 281370S)

Note: Included in Gasket Set-Ref. 358.

$8.49

$

In Stock, Qty 20+

0

525

Briggs & Stratton 691398

Dipstick Tube
(Superseded to 597129)

$21.99

$

In Stock, only 1 left!

0

562

Briggs & Stratton 94907

Bolt-Carriage
(Superseded to 691119)

$4.49

$

In Stock, Qty 17

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 495157

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 2 left!

0

750

Briggs & Stratton 691033

Screw
(Superseded to 790832)

$4.49

$

In Stock, only 2 left!

0

847

Briggs & Stratton 496415

Fill Group-Oil
(Superseded to 597130)

$47.99

$

In Stock, only 2 left!

0

851

Briggs & Stratton 224110

Cable Terminal
(Superseded to 692424)

$5.99

$

In Stock, Qty 13

0

877

Briggs & Stratton 393456

Wire/Connector-Alternator

$20.99

$

In Stock, only 1 left!

0

943

Briggs & Stratton 280801

O-Ring Seal
(Superseded to 690589)

Note: Included in Gasket Set-Ref. 358.

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

$13.99

$

In Stock, Qty 10

0

1024

Briggs & Stratton 499054

Pump-Oil
(Superseded to 794644)

$35.99

$

In Stock, only 1 left!

0

1027

Briggs & Stratton 492932

Filter-Oil
(Superseded to 492932S)

$12.99

$

In Stock, Qty 20+

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0
