71227 (16-38 HXL) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) FRAME AND BODY ASSEMBLY Parts Diagram

Lawn Tractor

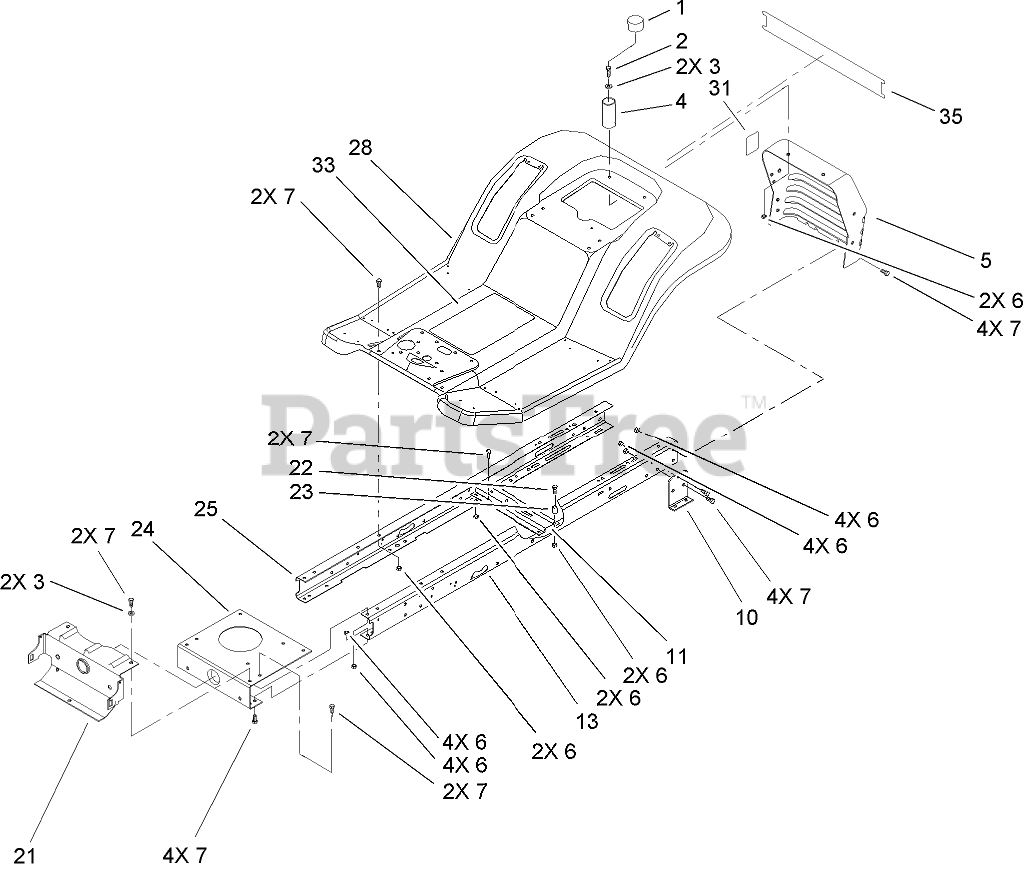

FRAME AND BODY ASSEMBLY Parts Diagram

  • Title

1

Toro 701178

CAP-PROTECTOR

$2.99

$

In Stock, only 3 left!

0

2

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

4

Toro 88-6220

SPRING-COMPRESSION

$28.99

$

Usually ships in 3-6 days

0

5

Toro 99-2957-03

SUPPORT-SEAT/REAR HITCH

$157.99

$

Usually ships in 3-6 days

0

6

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

10

Toro 88-5260-03

BRACKET-TRANSAXLE, MOUNTING

$12.99

$

In Stock, only 1 left!

0

11

Toro 88-4620-03

BRACKET-IDLER PIVOT

$

$

Not available

13

Toro 99-2958-03

RAIL-FRAME, LH

$103.99

$

Usually ships in 3-6 days

0

21

Toro 98-3575-03

SUPPORT-FRONT, AXLE
(Superseded to 110-8636-03)

$60.99

$

Usually ships in 3-6 days

0

22

Toro 322-13

SCREW-HH

$3.49

$

In Stock, Qty 7

0

23

Toro 88-5470

SPACER

$13.99

$

Usually ships in 3-6 days

0

24

Toro 88-4630-03

PLATE-MOUNTING, ENGINE

$70.99

$

Usually ships in 3-6 days

0

25

Toro 99-2959-03

RAIL-FRAME, RH

$103.99

$

Usually ships in 3-6 days

0

28

Toro 99-2971

REAR BODY ASM

$721.99

$

Usually ships in 3-6 days

0

31

Toro 100-7449

DECAL-VALVE, DUMP

$25.99

$

Usually ships in 3-6 days

0

33

Toro 99-6095

DECAL-INSTRUCTION, HYDRO

$

$

Not available

35

Toro 105-2498

DECAL-REAR FENDER, LAWN TRACTORS

$15.99

$

Usually ships in 3-6 days

0
